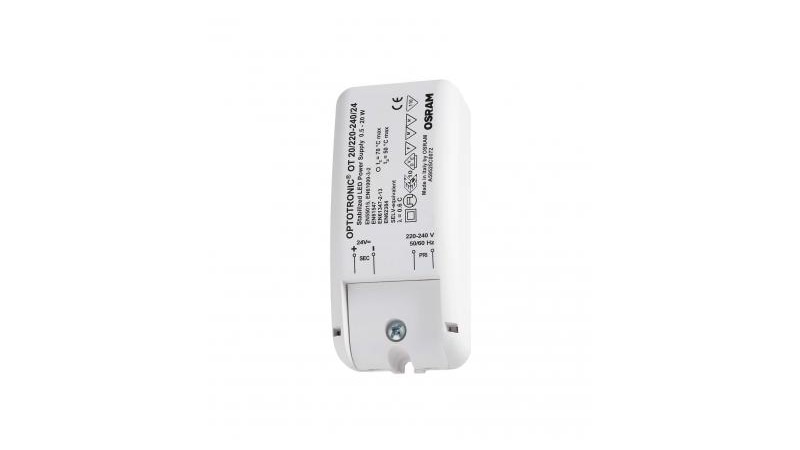

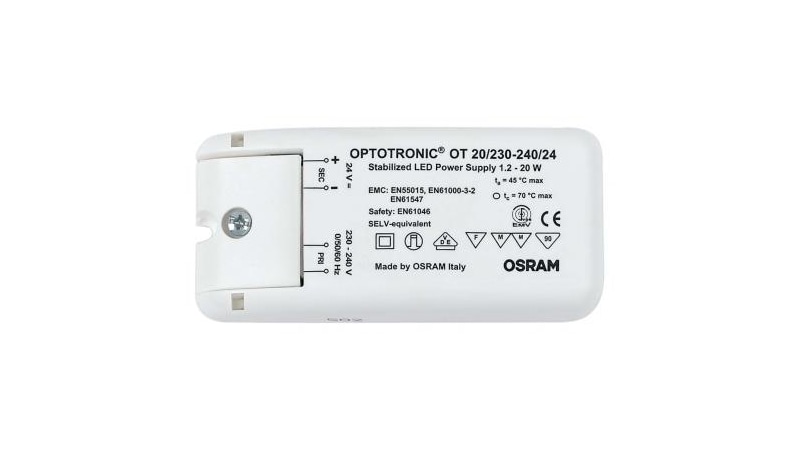

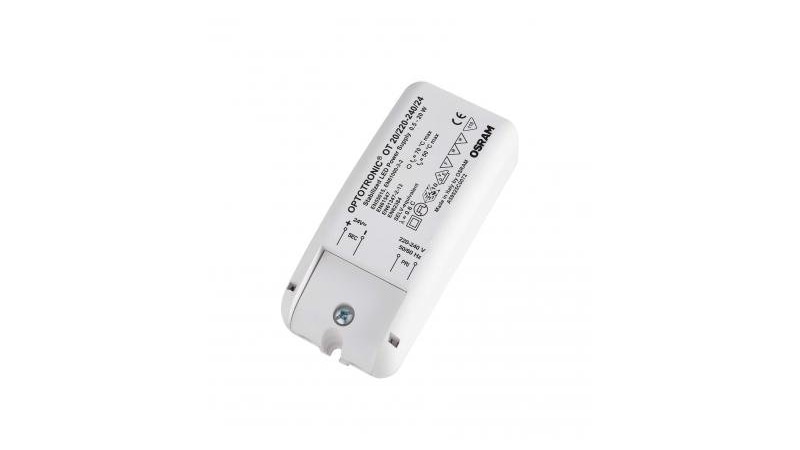

Osram LED-Driver OT 20/200...240/24 - 4050300618111
Osram LED-Driver OT 20/200...240/24 - 4050300618111
Immediately available
That's why you should buy this product now
- High Quality at a low price
- 4.8 out of 5 ⭐⭐⭐⭐⭐ on Google
- Short delivery times for stock items
€12.80
Prices incl. VAT plus shipping costs net €10.76
Product information "Osram LED-Driver OT 20/200...240/24 - 4050300618111"
The 24 V constant voltage LED driver OT 20/200 ... 240/24 E from OSRAM is suitable for SELV indoor and outdoor installations. As an outdoor application, it can only be used in suitable luminaires. It is also ideal for the use in tight, flat luminaires or in suspended ceilings.
Its output power is 20 watts. You benefit from very high efficiency and reliability. The Smart Power Supply function of the OSRAM LED driver ensures a constant luminous flux for very low and high temperatures.
The housing is equipped with IP20 protection. The lifetime is 30,000 hours.Downloads & Documents
Login
Electrical data
| rated voltage: | 220-240 V |
|---|---|
| lifetime: | 30000 h |
| system power: | 20 |
Casing
| form type: | reflector form |
|---|---|
| max housing temperature (tc-max): | 70 °C |
| protection type: | IP20 |
| material: | plastic |
| mounting: | surface mounting |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 45 °C |
Photometric data
| dimmable: | no |
|---|---|
| color: | white |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|---|
| country of origin: | Bulgaria |

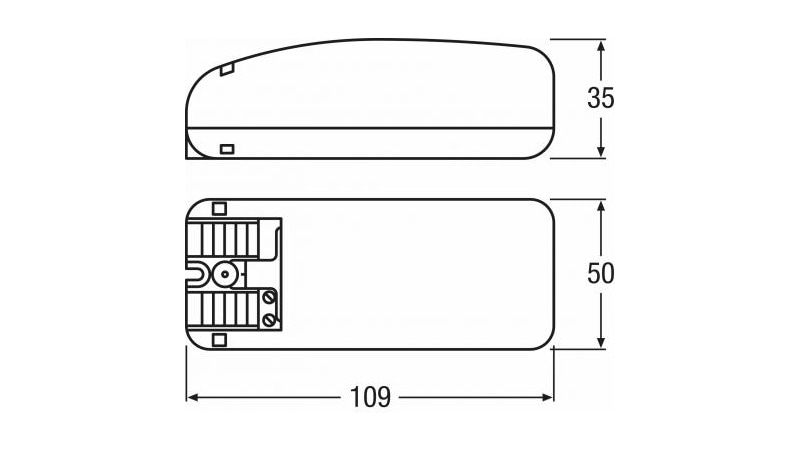

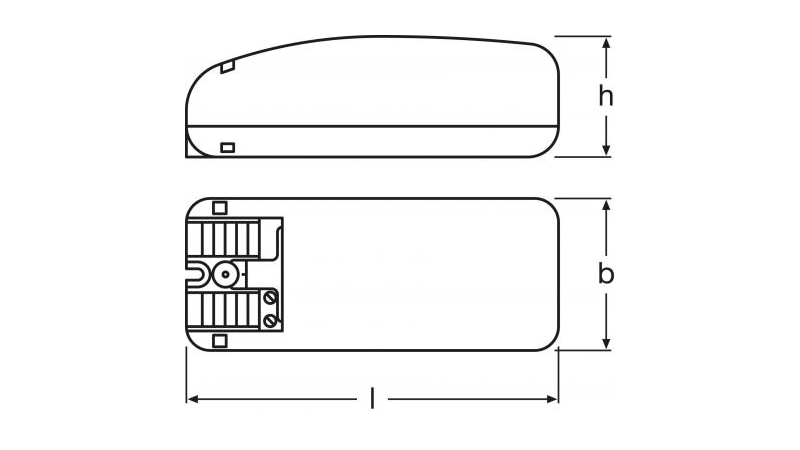

Dimensions & packaging
| EAN | 4050300618111 |
|---|---|
| Length | 109 mm |
| Width | 50 mm |
| Height | 35 mm |
| Weight | 108 g |
