Osram LED-Driver OT 130/220-240/24 DIM P - 4052899545885
Osram LED-Driver OT 130/220-240/24 DIM P - 4052899545885
Immediately available
€148.86
Prices incl. VAT plus shipping costs net €125.09
Product information "Osram LED-Driver OT 130/220-240/24 DIM P - 4052899545885"

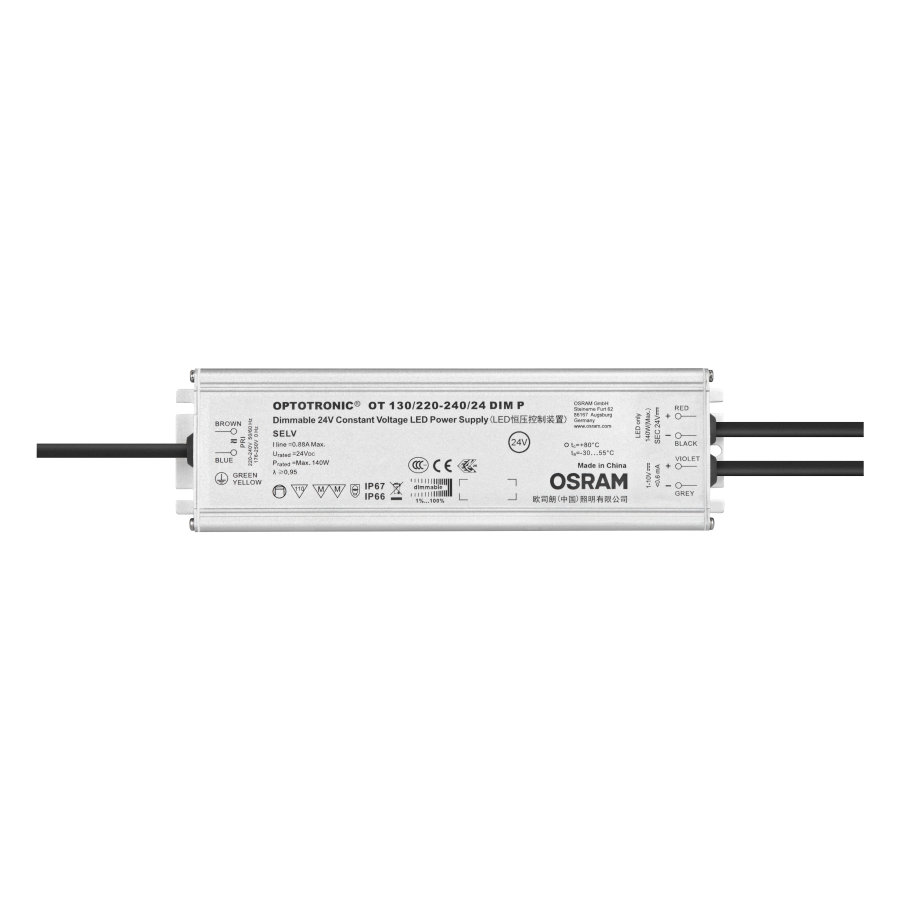

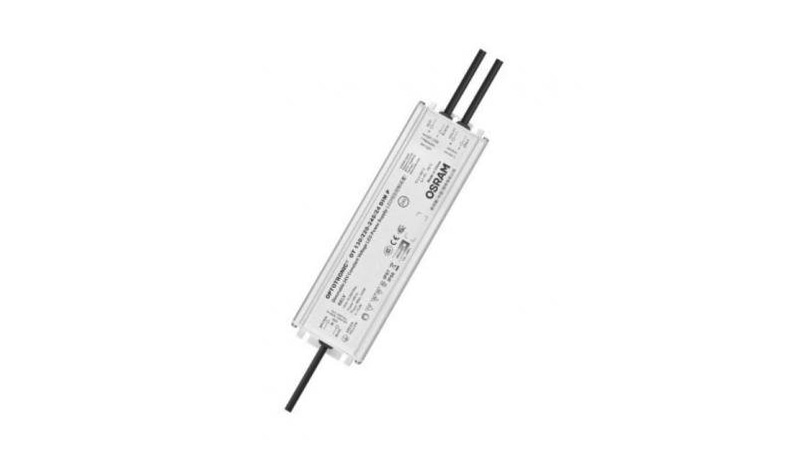

The IP66-protected dimmable 24 V constant voltage LED ECG OT 130 / 220-240 / 24 DIM P from the Optotronic series by OSRAM is suitable for luminaire installation or independent mounting in extremely cold or hot outdoor and indoor environments. The wide temperature range is between -30 and + 55 ° C. Ideal application areas include facades, public spaces, cruise ships and signages.
The LED driver has a stable output power of 130 watts. Thanks to the Smart Power Supply function, it has an increased power when switching on cold LEDs. It also convinces with DC mode functionality. Via a fully isolated 1-10V interface, the LED driver can be dimmed in a dimming range of 1-100%.
The OSRAM LED ECG has high electronically reversible short-circuit, overload and overtemperature protection as well as overvoltage protection up to 4 kV (L-N) / 6 kV (L / N-PE). The lifetime is up to 50,000 hours.
Downloads & Documents
ENEC-Certificate-Osram-LED-Driver-OT-130-220-240-24-DIM-P-4052899545885_1592165412_1
Declaration-of-Confirmity-Osram-LED-Driver-OT-130-220-240-24-DIM-P-4052899545885_1592165412_2
CB-Certificate-Osram-LED-Driver-OT-130-220-240-24-DIM-P-4052899545885_1592165412_5
CB-Zertifikat-Osram-LED-Treiber-OT-130-220-240-24-DIM-P-4052899545885_1592165412_4
ENEC-Zertifikat-Osram-LED-Treiber-OT-130-220-240-24-DIM-P-4052899545885_1592165412_6
Konformitaetserklaerung-Osram-LED-Treiber-OT-130-220-240-24-DIM-P-4052899545885_1592165412_8
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant voltage |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| form type: | linear |
|---|---|
| protection type: | IP66/67 |
| material: | metal |
| mounting: | surface mounting |
| protection class: | I |
| environment temperature from: | -30 °C |
| environment temperature to: | 55 °C |
Photometric data
| dimmable: | yes |
|---|---|
| color: | white |
| interface: | 1-10 V |
Logistic data
| item category: | LED drivers |
|---|
Dimensions & packaging
| EAN | 4052899545885 |
|---|---|
| Length | 220 mm |
| Width | 63 mm |
| Height | 37 mm |
| Weight | 943 g |
