Osram LED-Driver OT 110/120-277/1A4 2DIMLT2 P - 4052899253438
Osram LED-Driver OT 110/120-277/1A4 2DIMLT2 P - 4052899253438
Immediately available
That's why you should buy this product now
- High Quality at a low price
- 4.8 out of 5 ⭐⭐⭐⭐⭐ on Google
- Short delivery times for stock items
€57.62
Prices incl. VAT plus shipping costs net €48.42
Product information "Osram LED-Driver OT 110/120-277/1A4 2DIMLT2 P - 4052899253438"

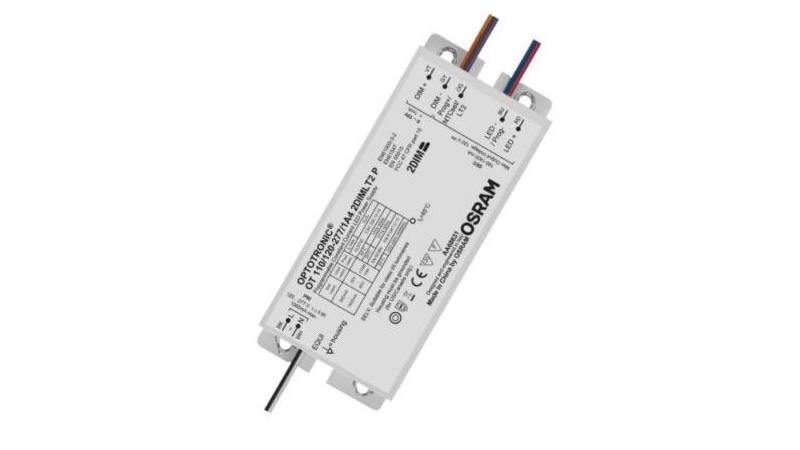

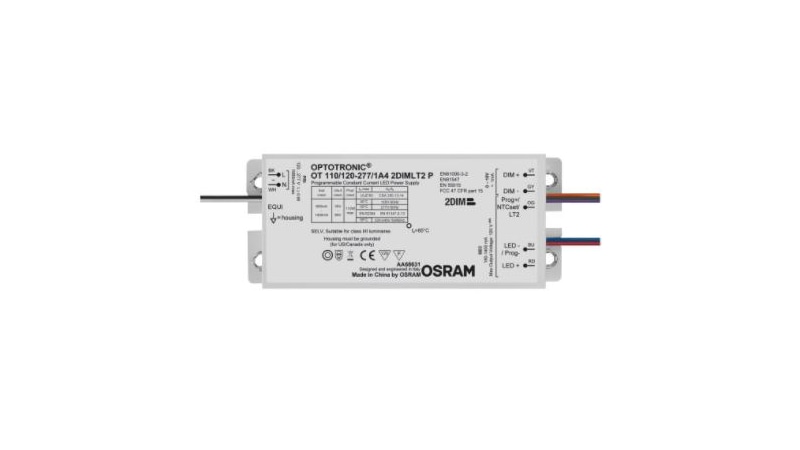

The constant current driver for LED module OT 110 / 120-277 / 1A4 2DIMLT2 P from the Optotronic outdoor series from Osram is suitable for luminaires of protection class I and II. Thanks to the IP64 protection, the ideal application areas are outdoors - for example street and urban lighting or industrial lighting. Its nominal output is 110 watts.
The 2DIM functionality of the electronic ballast allows dimming by different means: via isolated 1-10 V interface for unidirectional telemanagement systems or via AstroDIM for autonomous dimming with five different levels.
Thanks to its broad operating temperature range of -40 to + 55 °C, the Osram LED ECG can be used particularly flexibly. It can be programmed fast without mains voltage. Additionally, the LED driver has a high surge protection up to 6kV and a protection by double isolation between mains input and LED output.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| output current: | 600, 625, 650, 675, 700, 725, 750, 775, 800, 825, 850, 875, 900, 925, 950, 975, 1000, 1025, 1050, 1075, 1100, 1125, 1150, 1175, 1200, 1225, 1250, 1275, 1300, 1325, 1350, 1375, 1400 |
| operating mode: | constant current |
| rated voltage: | 120-277 V |
| lifetime: | 80000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP64 |
| material: | metal |
| mounting: | Installation |
| protection class: | I/II |
| environment temperature from: | -40 °C |
| environment temperature to: | 55 °C |
Photometric data
| dimmable: | yes |
|---|---|
| color: | white |
| interface: | AstroDIM |
Logistic data
| item category: | LED drivers |
|---|

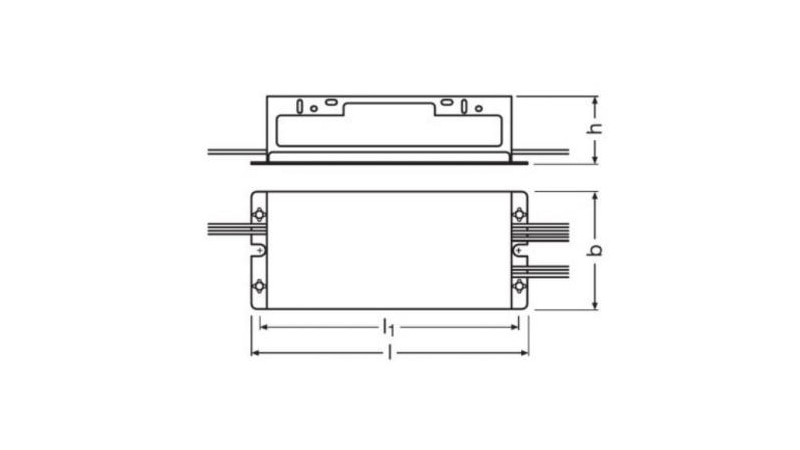

Dimensions & packaging
| EAN | 4052899253438 |
|---|---|
| Length | 168 mm |
| Width | 68 mm |
| Height | 38 mm |
| Weight | 740 g |
