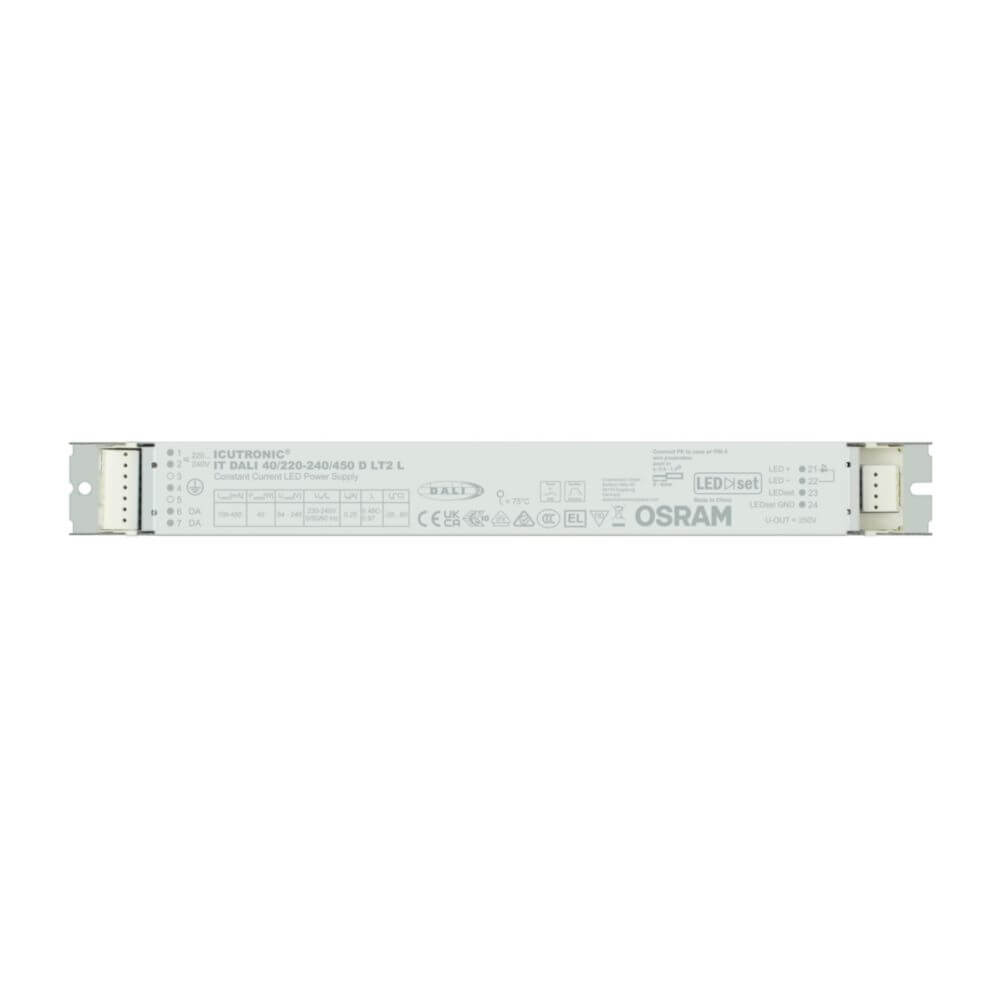

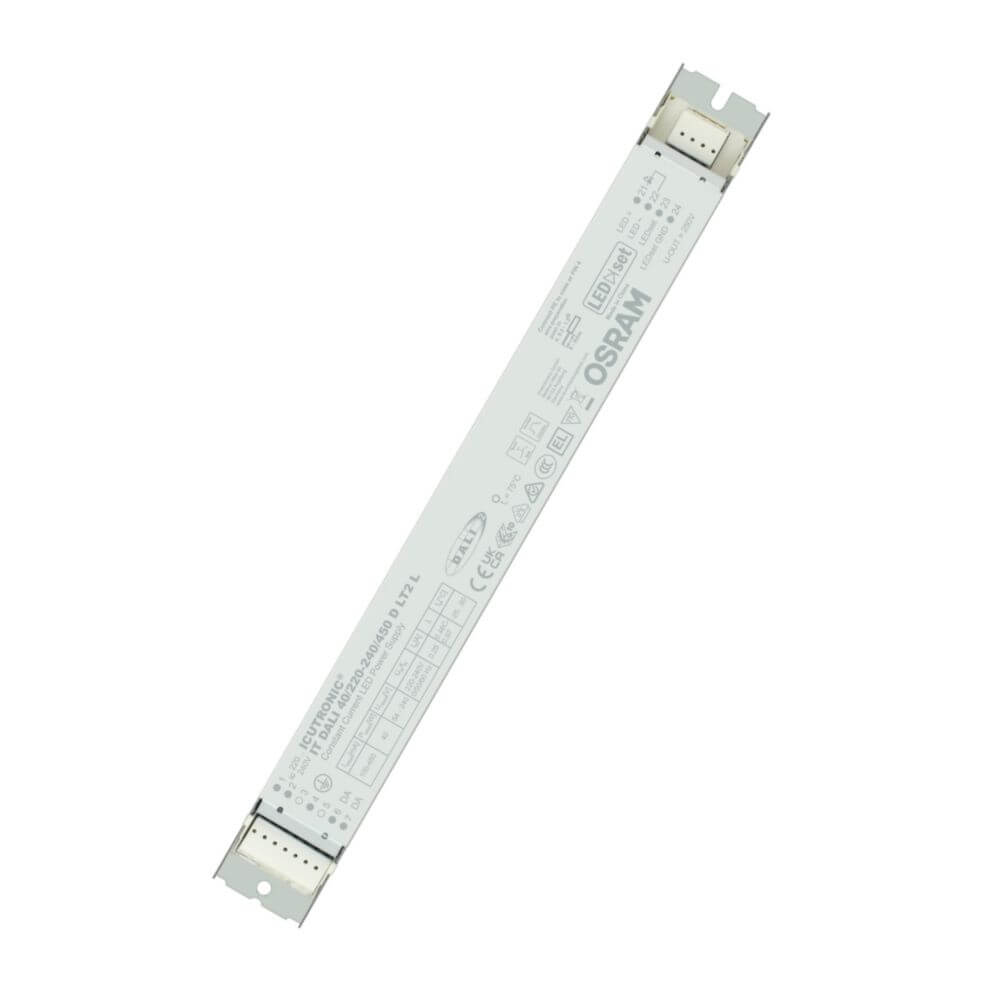

OSRAM LED-Driver IT DALI 40/220-240/450 D LT2 L
Inventronics Europe BV
OSRAM LED-Driver IT DALI 40/220-240/450 D LT2 L
Product number:
4062172380096
Shipping in 7 day(s)
€24.56
net €20.64
Product information "OSRAM LED-Driver IT DALI 40/220-240/450 D LT2 L"
Product family features
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Versatile scope of application due to output power range of up to 75 W
- Supply voltage: 220…240 V
- Available with output current range: up to 500 mA
- Non-isolated drivers
Product family benefits
- Versatile non-isolated DALI driver up to 75 W due to flexible output characteristic
- Fully programmable via software (DALI Interface)
- Flexible current setting (RSet)
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- High-quality dimming of 3…100 % by amplitude dimming
- High quality of light thanks to <4% output ripple current
- High efficiency
- Low standby power consumption: < 0.25 W
- Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
Areas of application
- Linear and area lighting
- Industry lighting
-
Suitable for luminaires of protection class I
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
