Osram LED-Driver IT DALI 150/120-240/1A0 P7 - 4052899620346

Inventronics Europe BV

Osram LED-Driver IT DALI 150/120-240/1A0 P7 - 4052899620346

Product number: 4052899620346

Immediately available

€54.53


Prices incl. VAT plus shipping costs net €45.82

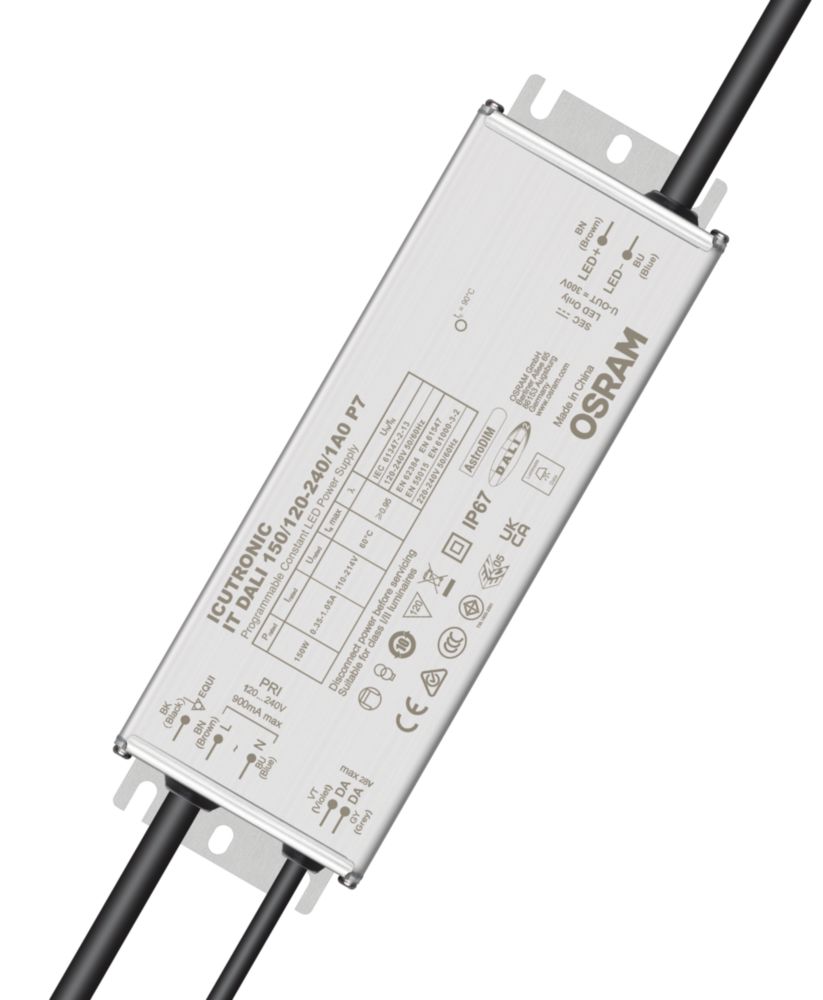

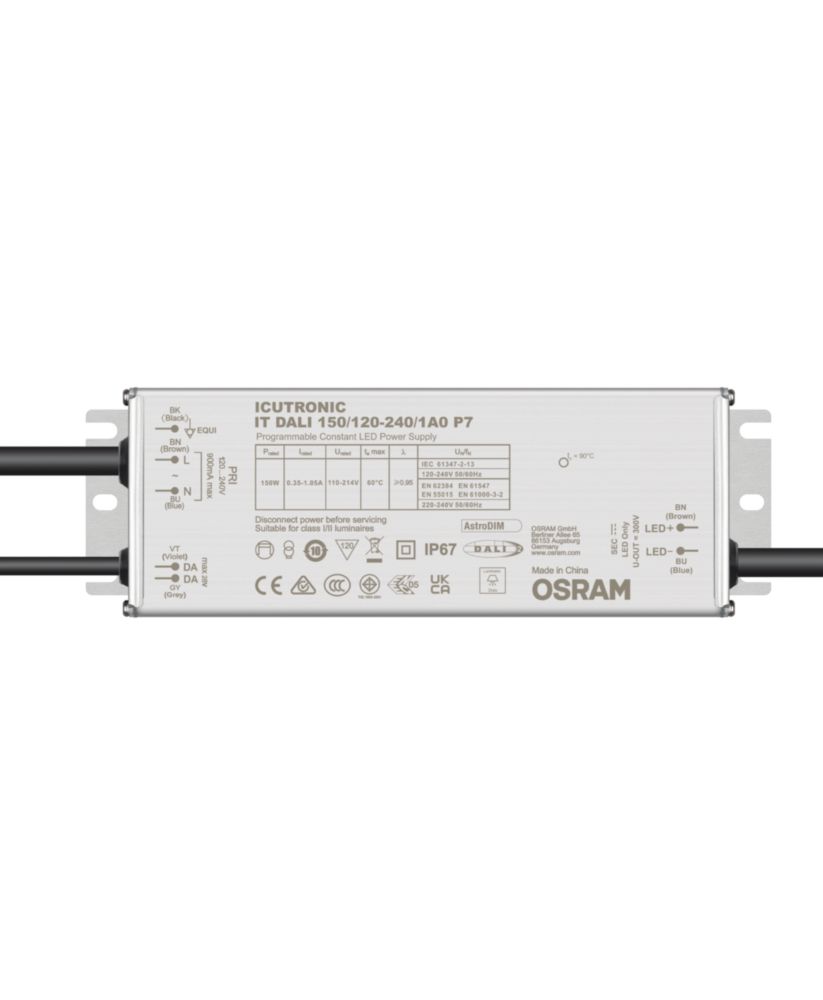

Product information "Osram LED-Driver IT DALI 150/120-240/1A0 P7 - 4052899620346"

Discover the high-quality LED driver IT DALI 150/120-240/1A0 P7, ideal for linear and wide-area applications. With its outstanding efficiency and long service life, this driver is the perfect choice for your lighting requirements.
  • Product name: IT DALI 150/120-240/1A0 P7
  • EAN: 4052899620346
  • Insulation: Basic
  • Input voltage AC: 120...264 V
  • Input voltage DC: Not relevant
  • Nominal output power: 150 W
  • Nominal output voltage: 110...214 V
  • Rated output current: 350...1050
  • Power factor [λ]: 0.86C...0.99
  • Inrush current: 45.0 A
  • Max. Number of ECGs at 16 A (B) Fuse: 14
  • Maximum efficiency: 93
  • Ripple (100 Hz): +/- 5
  • Dimming function: DALI-2, AstroDIM
  • Corridor function: No
  • Constant lumen function: Programmable
  • DALI-2: Yes
  • Programming interface: n/a
  • Programming device: DALI
  • Emergency mode: No
  • Suitable for emergency lighting: No
  • Service life: 50000 / 100000
  • Operating temperature [Tₐ] in °C: -40...+60
  • Maximum housing temperature [Tᶜ] in °C: 90
  • Protection class: I, II
  • Protection class: IP67

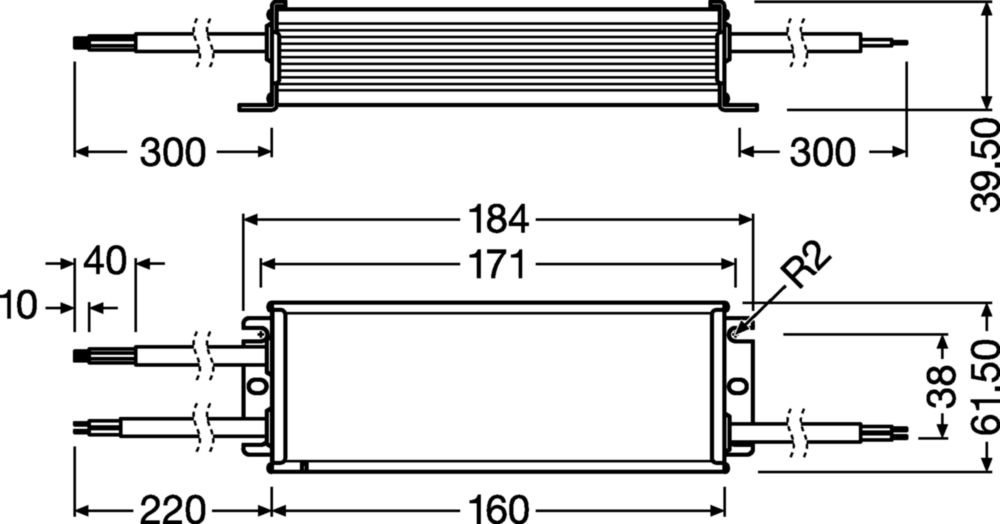

  • Dimensions (L x W x H): 184 x 61.5 x 39.5 mm
  • Certificates & approvals: CCC, CE, TISI, RCM, ENEC, UKCA, DALI-2, IP67
The IT DALI 150/120-240/1A0 P7 LED driver offers you a reliable and efficient solution for your lighting projects. Thanks to its design, it can be used flexibly. With a maximum efficiency of up to 93% and a low ripple of +/- 5%, this driver ensures stable and uniform lighting.
The driver can be easily customised to your specific requirements thanks to the simple setting of the nominal output currents using DALI. With a service life of 50000 / 100000 hours and a robust design, the IT DALI 150/120-240/1A0 P7 is suitable for long-term use in a variety of environments.
Get this versatile and powerful LED driver and benefit from its outstanding features and certifications that guarantee high quality and safety.
Downloads & Documents
Electrical data
number of channels: 1
output current: 350, 375, 400, 425, 450, 475, 500, 525, 550, 575, 600, 625, 650, 675, 700, 725, 750, 775, 800, 825, 850, 875, 900, 925, 950, 975, 1000, 1025, 1050
operating mode: constant current
Dimensions & packaging
EAN 4052899620346
