Lunatone rotary knob DALI ROT 70mA CH – 86459822-CH-PS
Product information "Lunatone rotary knob DALI ROT 70mA CH – 86459822-CH-PS"

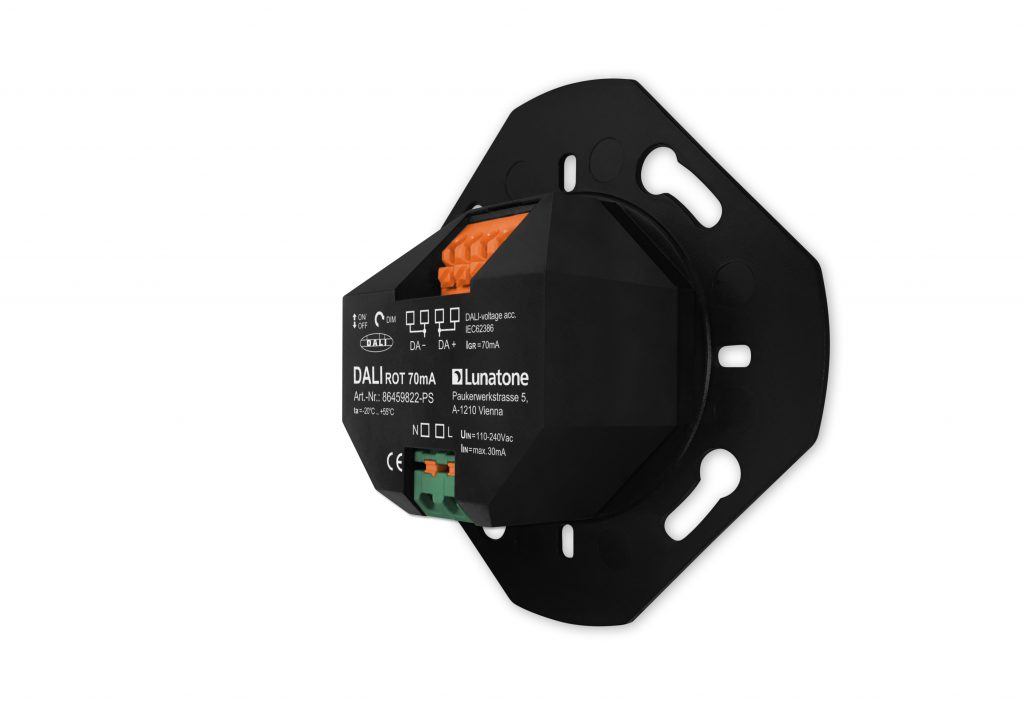

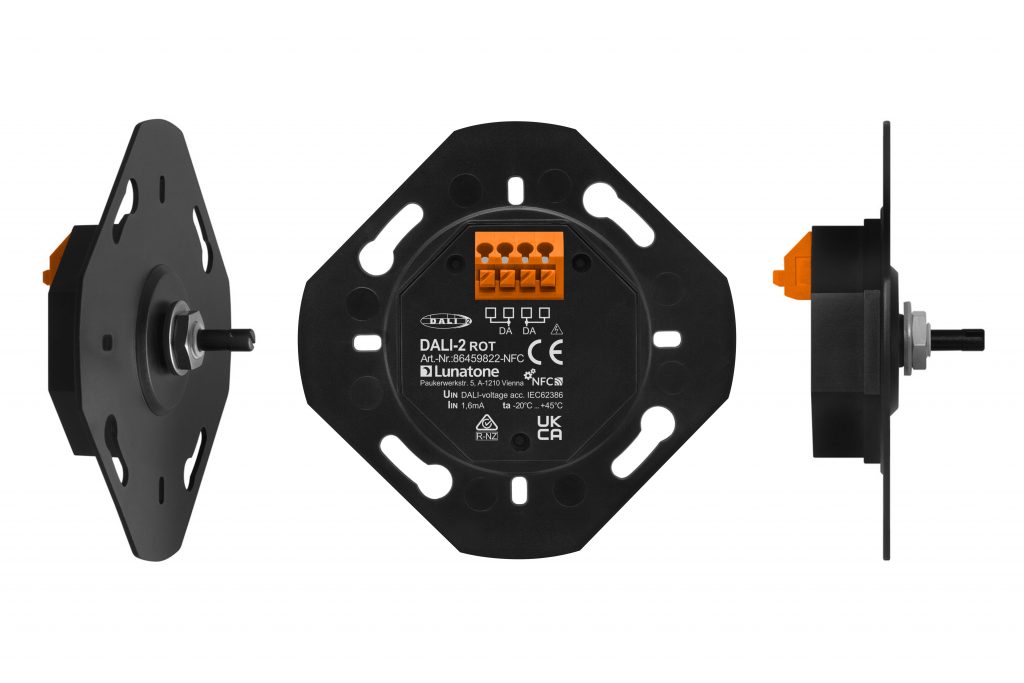

DALI ROT is a rotary knob basis to control the light level of DALI luminaires. Versions for Tunable White or RGB-capable luminaires are also available. The device was developed to fit the rotary covers and knobs of most manufacturers and to enable their integration in the DALI system.
Downloads & Documents
Electrical data
| operating frequency: | 50/60 Hz |
|---|---|
| rated voltage: | 230 V |
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | square |
| protection type: | IP20 |
| mounting: | flush mounting |
Photometric data
| color: | black |
|---|---|
| interface: | DALI |
| solar panel: | no |
Logistic data
| country of origin: | Austria |
|---|
Dimensions & packaging
| EAN | 9010342015649 |
|---|---|
| Length | 70 mm |
| Width | 70 mm |
| Height | 60 mm |
| Weight | 68 g |
