Lunatone Light Management Universal dimmer DALI PD 300W Din-Rail - 86458619-300U-HS
Lunatone Light Management Universal dimmer DALI PD 300W Din-Rail - 86458619-300U-HS
Immediately available
€133.28
Prices incl. VAT plus shipping costs net €112.00
Product information "Lunatone Light Management Universal dimmer DALI PD 300W Din-Rail - 86458619-300U-HS"
The Light Management Universal Dimmer DALI PD300 from Lunatone is a IP20 protected universal dimmer with DALI control input for loads of 10 to 300 W for DIN rail mounting. The module can be used to integrate dimmable 230 V lamps into a DALI system.
The DALI dimming level is converted to phase cut controlled voltage (trailing/leading edge). The minimum dimming level can be set via DALI.

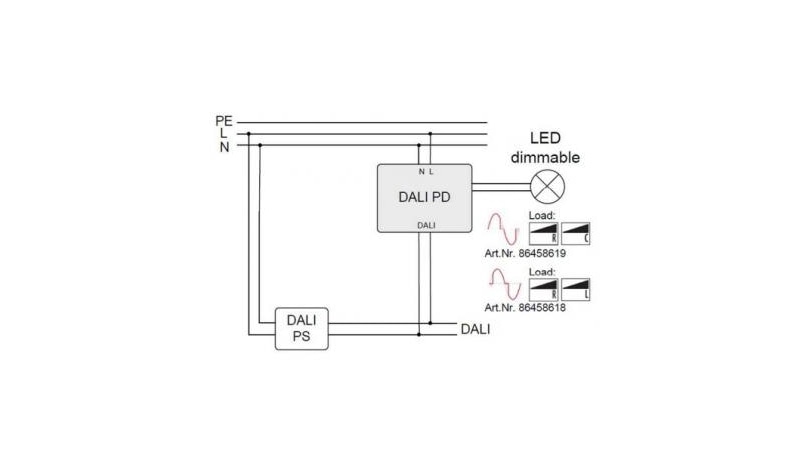

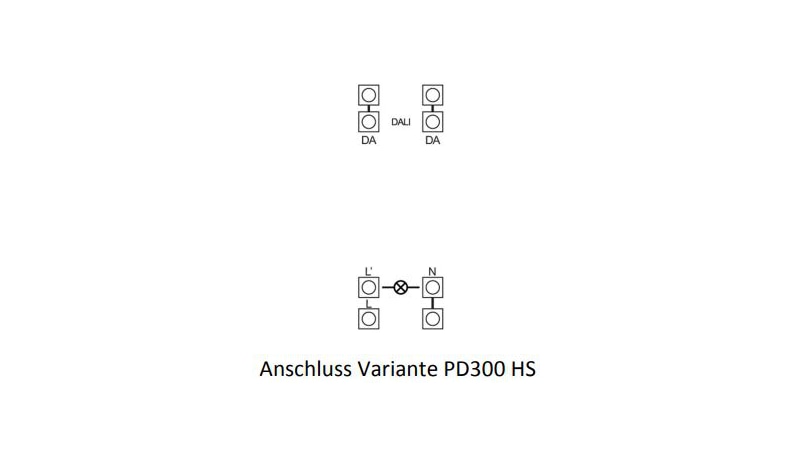

The Lunatone universal dimmer represents a DALI line client and therefore has its own DALI address. Thanks to double DALI terminals, the DALI signal is connected through.
Downloads & Documents
Electrical data
| rated voltage: | DALI bus V |
|---|---|
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| mounting: | rail |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimmable: | yes |
|---|---|
| color: | white |
Logistic data
| item category: | light management |
|---|---|
| country of origin: | Bulgaria |

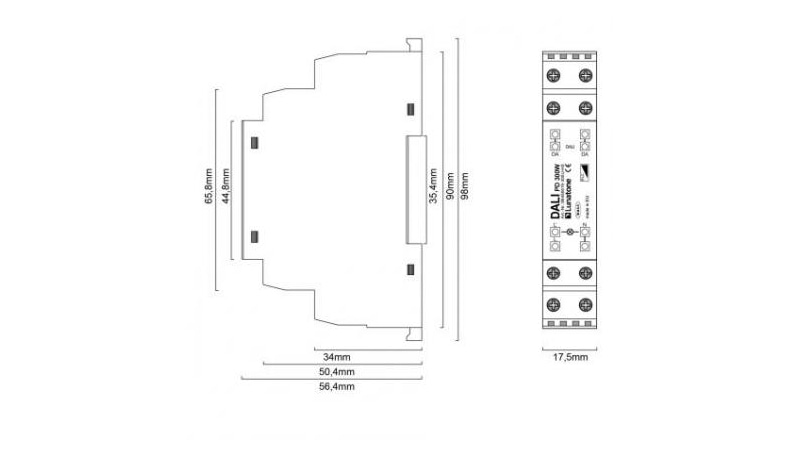

Dimensions & packaging
| EAN | 9010342011283 |
|---|---|
| Length | 98 mm |
| Width | 18 mm |
| Height | 56 mm |
| Weight | 63 g |
