Product information "Lunatone Light Management Universal dimmer DALI PD 300W ceiling void - 86458619-300U"
The Light Management Universal Dimmer DALI PD300U from Lunatone is a IP20 protected universal dimmer with DALI control input for loads of 10 to 300 W for independent mounting or ceiling void mounting. The module can be used to integrate dimmable 230 V lamps into a DALI system.
The DALI dimming level is converted to phase cut controlled voltage (trailing/leading edge). The minimum dimming level can be set via DALI.

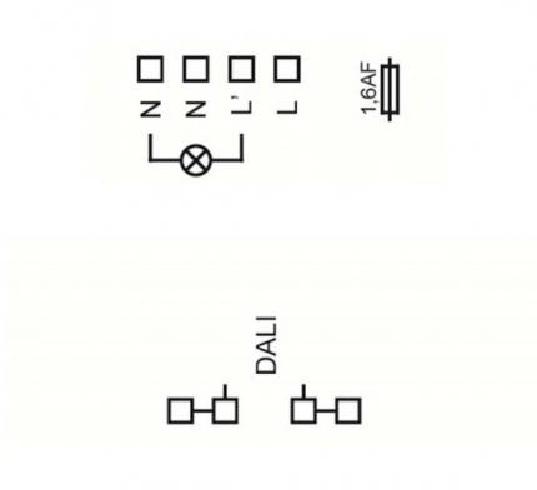

The Lunatone universal dimmer represents a DALI line client and therefore has its own DALI address. Thanks to double DALI terminals, the DALI signal is connected through.
Downloads & Documents
Electrical data
| rated voltage: | DALI bus V |
|---|---|
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| max housing temperature (tc-max): | 65 °C |
| protection type: | IP20 |
| mounting: | with strain relief |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimmable: | yes |
|---|---|
| color: | white |
| interface: | phase cut and gating |
Logistic data
| item category: | light management |
|---|---|
| country of origin: | Bulgaria |

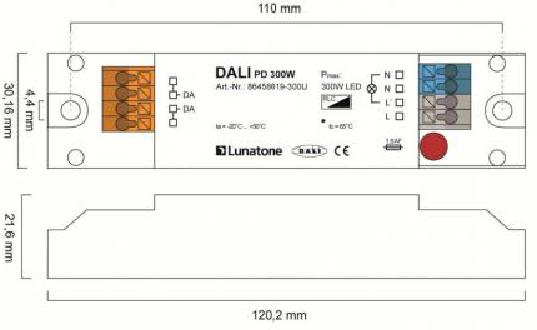

Dimensions & packaging
| EAN | 9010342011276 |
|---|---|
| Length | 120 mm |
| Width | 30 mm |
| Height | 20 mm |
| Weight | 61 g |
