Lunatone Light Management Relais-Controller DALI 4Ch RC DIN rail - 89453860-HS
Lunatone Light Management Relais-Controller DALI 4Ch RC DIN rail - 89453860-HS
Immediately available
€74.26
Prices incl. VAT plus shipping costs net €62.40
Product information "Lunatone Light Management Relais-Controller DALI 4Ch RC DIN rail - 89453860-HS"

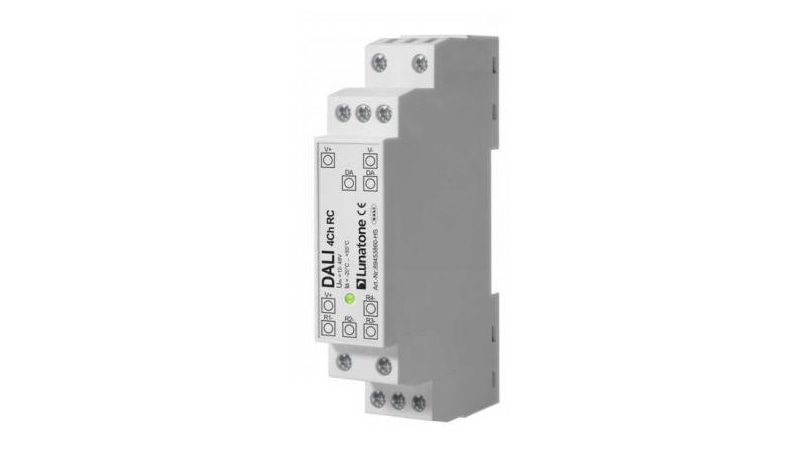

4-channel relay controller for DALI systems
The 4-channel relay controller DALI 4Ch RC from Lunatone enables the connection of switched loads to a DALI system. It is suitable for relay / contactor with coil voltages from 12V to 48V DC. The mounting takes place on a DIN rail.
Easy configuration via software tool
Each channel has its own DALI address (Device Type 7). The configuration is quite simple via the DALI-Cockpit software tool and the DALI USB interface. The maximum connection current is 8A, the maximum output current per channel 2A.
Downloads & Documents
Datenblatt-Lunatone-Lichtmanagement-Relais-Controller-DALI-4Ch-RC-89453860-HS-Hutschiene_1592160919_4
Konformitaetserklaerung-Lunatone-Lichtmanagement-Relais-Controller-DALI-4Ch-RC-89453860-HS-Hutschiene_1592160919_6
Electrical data
| rated voltage: | 12-48 V |
|---|---|
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | surface mounting |
| environment temperature from: | -20 °C |
| environment temperature to: | 60 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
| solar panel: | no |
Logistic data
| item category: | light management |
|---|---|
| country of origin: | Bulgaria |

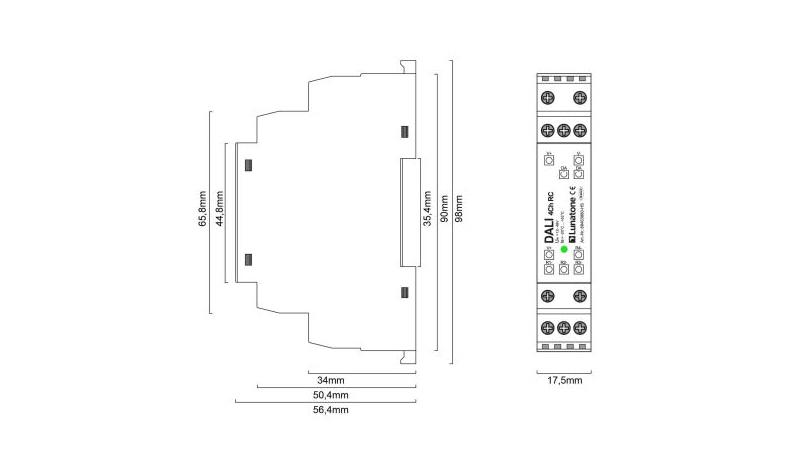

Dimensions & packaging
| EAN | 9010342011269 |
|---|---|
| Length | 98 mm |
| Width | 18 mm |
| Height | 56 mm |
| Weight | 68 g |
Lunatone Industrielle Elektronik GmbH
Paukerwerkstraße 5
1210 Wien
AT
office@lunatone.com
www.lunatone.com
