Lunatone Light Management Radio RemoteControl wDALI Remote White - 86459534-W
Lunatone Light Management Radio RemoteControl wDALI Remote White - 86459534-W
Shipping in 5 day(s)
€162.54
net €136.59
Product information "Lunatone Light Management Radio RemoteControl wDALI Remote White - 86459534-W"

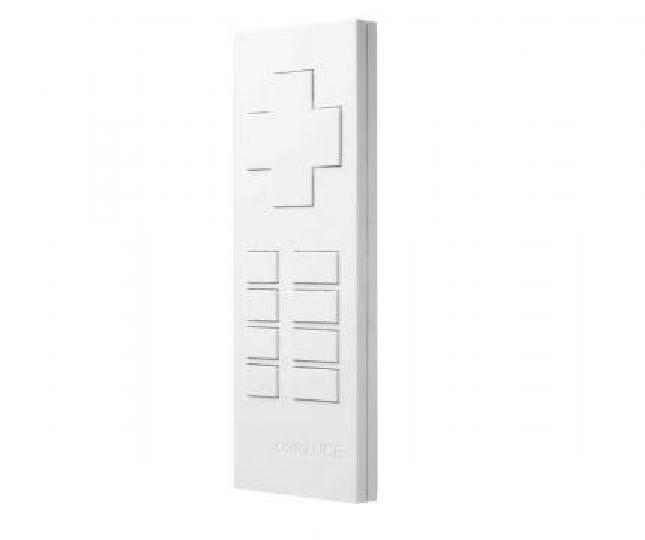

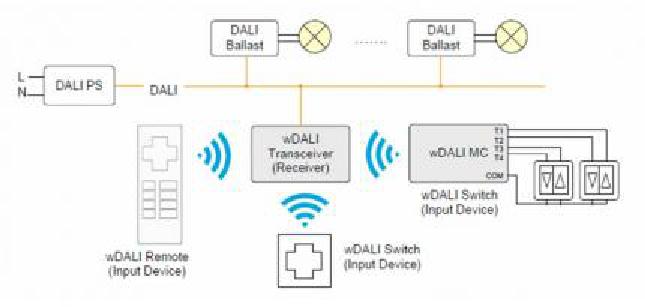

With the wDALI Remote, Lunatone offers a 12-button wireless remote control for operating a DALI system with Lunatone components. It is also possible to pair the remote control with several transceivers and thus to control several DALI circuits.

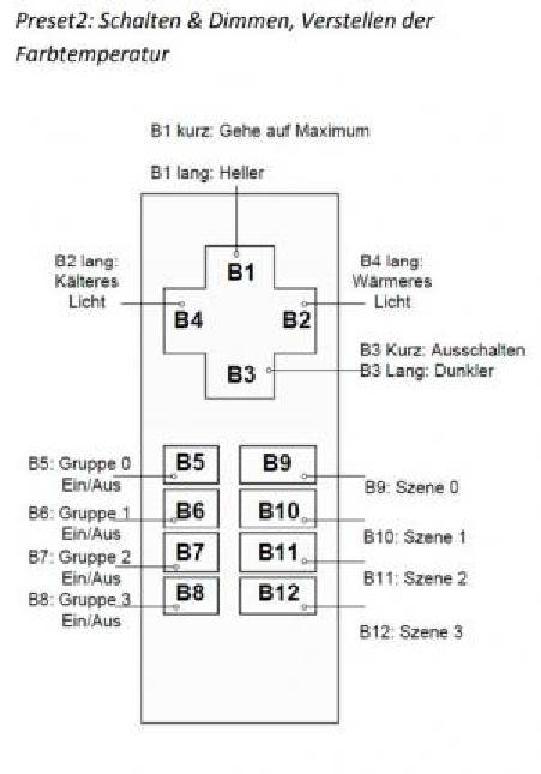

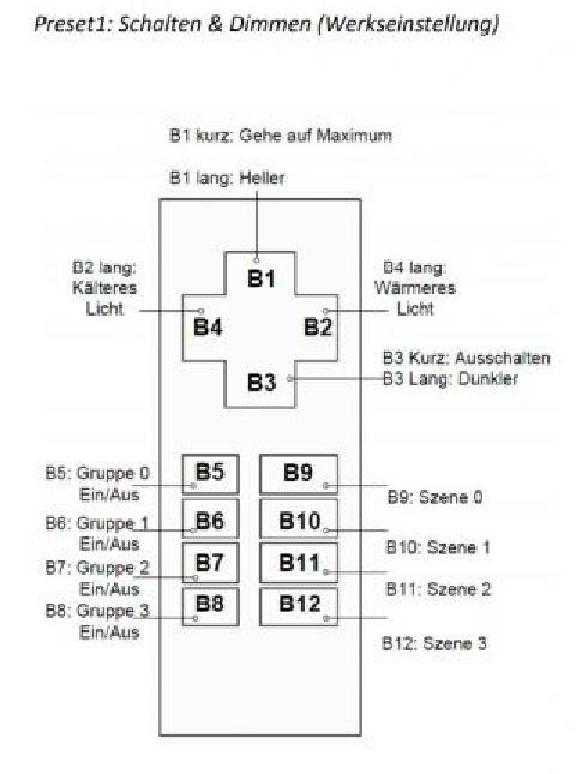

Each button can be freely assigned different functions. In addition, you can assign up to four effective ranges with individual functions to each button. An individual switching behavior can be set for each button (for example, short / long push button, toggle, stairways function). The configuration is easy via the DALI-Cockpit software tool.
The white housing of the Lunatone wDALI Remote is equipped with IP20 protection.
Downloads & Documents
Electrical data
| operating frequency: | 0/50-60 Hz |
|---|---|
| through wiring: | no |
| rated voltage: | Batterie V |
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| mounting: | flush mounting |
| environment temperature from: | -10 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
| solar panel: | no |
Logistic data
| item category: | light management |
|---|
Dimensions & packaging
| EAN | 9010342010989 |
|---|---|

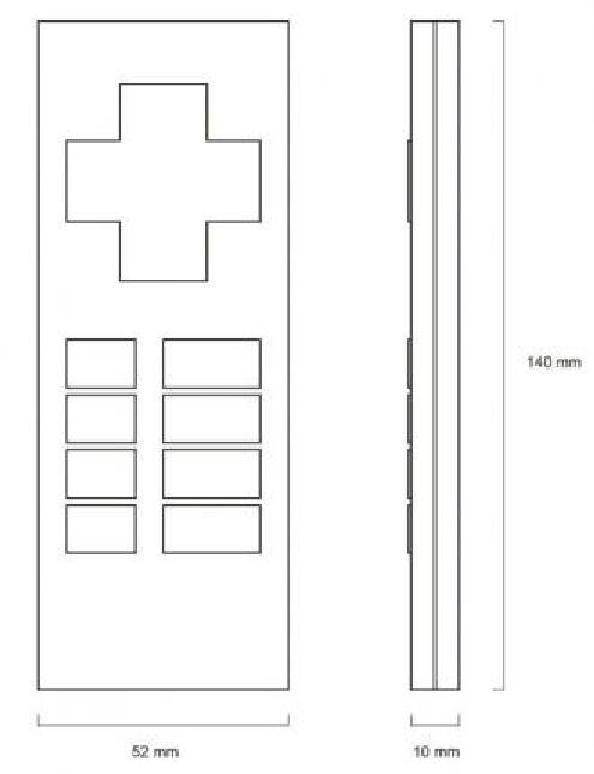

| Length | 140 mm |
| Width | 52 mm |
| Height | 10 mm |
| Weight | 75 g |
Lunatone Industrielle Elektronik GmbH
Paukerwerkstraße 5
1210 Wien
AT
office@lunatone.com
www.lunatone.com
