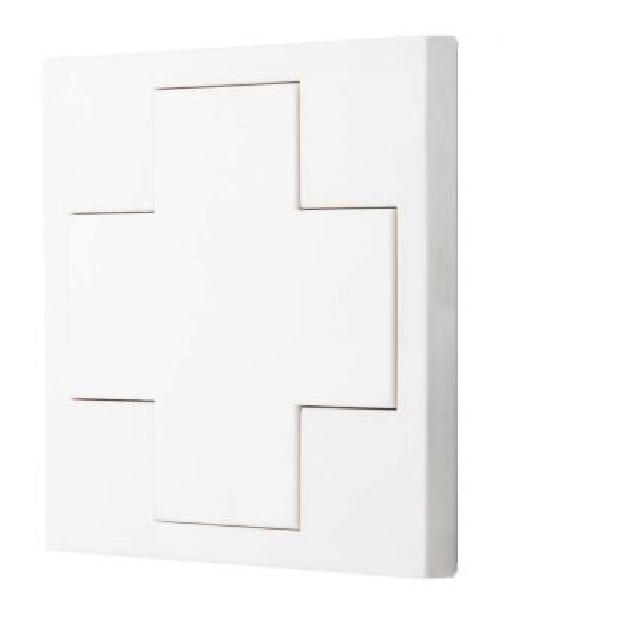

Lunatone Light Management Pushbutton Control Module DALI Switch Cross White - 86459793-W
Lunatone Light Management Pushbutton Control Module DALI Switch Cross White - 86459793-W
Immediately available
€106.62
Prices incl. VAT plus shipping costs net €89.60
Product information "Lunatone Light Management Pushbutton Control Module DALI Switch Cross White - 86459793-W"

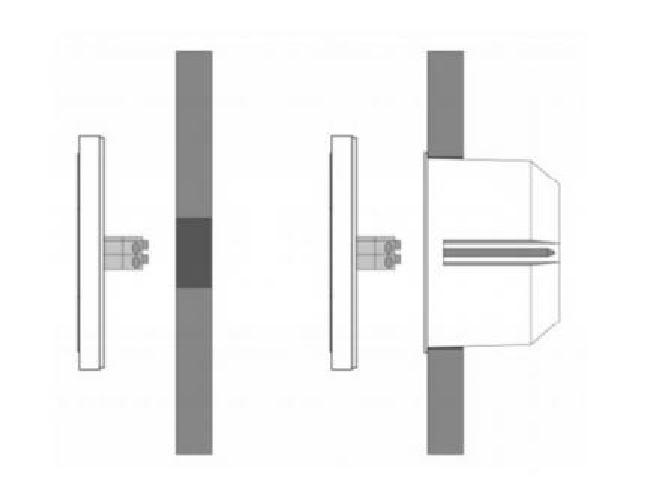

The Light Management Pushbutton Control Module DALI Switch Cross from Lunatone is a 4-way push-button control module with freely selectable functions (DALI commands) for flush mounting. It can be mounted directly on cavity walls or on conduit boxes.
Different switching modes can be assigned to each pushbutton (short / long press, toggle etc.). In addition, up to 4 effective areas with individual functions can be assigned to each pushbutton. You can set DALI single addresses, groups, or broadcast as active areas.
A configurable "power-up" function and a memory function for brightness are integrated. The configuration functions easily via the DALI-Cockpit software tool. With the factory settings, however, a basic DALI system control is possible without any configuration.
The Lunatone DALI Switch Cross features a DALI DT8 support for adjustable white luminaires.

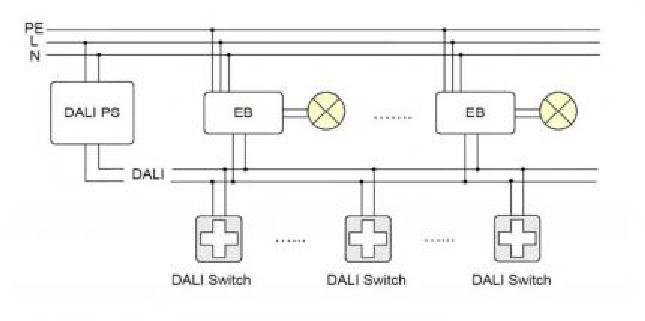

Multiple DALI Switch Cross modules can be used on the same DALI signal line. The module is supplied via the DALI signal line. The housing is IP20 protected.
Electrical data
| operating frequency: | 0/50-60 Hz |
|---|---|
| rated voltage: | DALI bus V |
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| protection type: | IP20 |
| mounting: | flush mounting |
| environment temperature from: | -10 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|---|
| solar panel: | no |
Logistic data
| item category: | light management |
|---|---|
| country of origin: | Bulgaria |

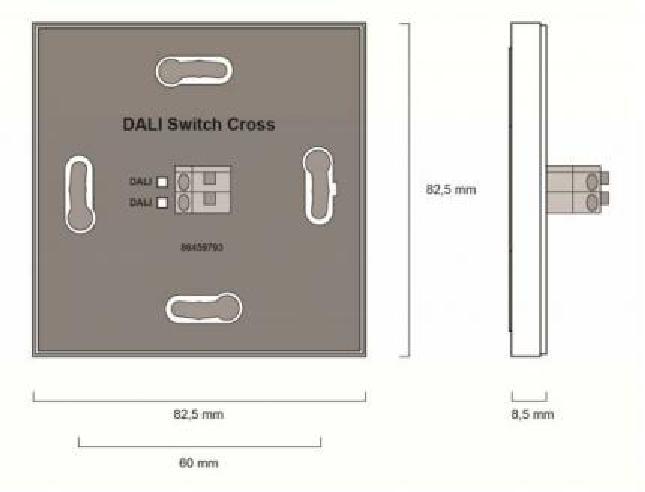

Dimensions & packaging
| EAN | 9010342010224 |
|---|---|
| Length | 83 mm |
| Width | 83 mm |
| Height | 9 mm |
| Weight | 68 g |
Lunatone Industrielle Elektronik GmbH
Paukerwerkstraße 5
1210 Wien
AT
office@lunatone.com
www.lunatone.com
