Lunatone Light Management Power Supply 700mA DALI LED CC DT6 - 89453849-700
Lunatone Light Management Power Supply 700mA DALI LED CC DT6 - 89453849-700
Immediately available
€70.45
Prices incl. VAT plus shipping costs net €59.20
Product information "Lunatone Light Management Power Supply 700mA DALI LED CC DT6 - 89453849-700"
700 mA DALI power supply for LED modules
The Lunatone DALI DT6 power supply with 700 mA for constant current LED modules is used to control brightness and color temperature. The device is controlled via one DALI address (DT6). In SwitchDim2 mode, operation is via push button inputs, which allows brightness control without DALI. The power supply is suitable for flush mounting.
Low standby losses and high efficiency
The dimming range is between 0.1% and 100%. In addition, the DALI DT6 power supply has a switchable PWM frequency (122Hz / 244Hz / 488Hz / 976Hz). The supply voltage is 230V AC. You benefit from low standby losses and high efficiency.
The Lunatone power supply is configured via the DALI Cockpit software tool and the DALI USB interface. It has an overtemperature shutdown and integrated short circuit protection. You get the power supply in a user-friendly delivery state.
Electrical data
| rated voltage: | 220-240 V |
|---|---|
| conformity: | CE |
| lifetime: | 50000 h |
Casing
| max housing temperature (tc-max): | 65 °C |
|---|---|
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 45 °C |
Photometric data
| dimming range to: | 100 % |
|---|---|
| color: | white |
| interface: | DALI |
Logistic data
| item category: | light management |
|---|---|
| country of origin: | Bulgaria |

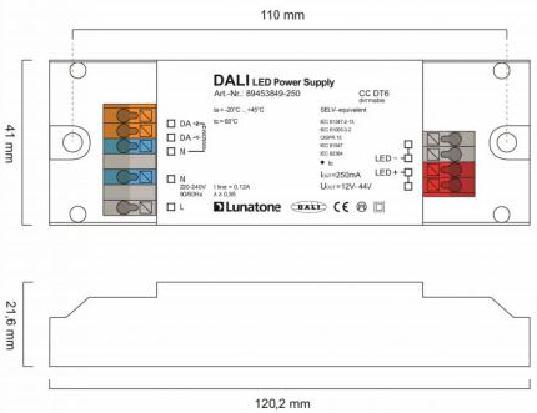

Dimensions & packaging
| EAN | 9010342011375 |
|---|---|
| Length | 120 mm |
| Width | 41 mm |
| Height | 22 mm |
| Weight | 100 g |
