Product information "Lunatone Light Management LED-Dimmer DALI CW-WW CV 10A - 89453838"

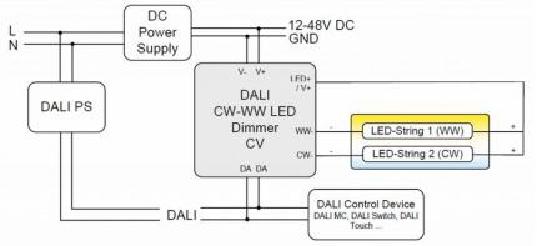

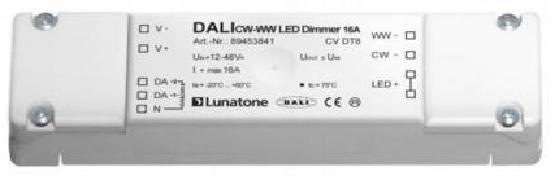

The Lunatone CW-WW constant voltage DALI LED Dimmer DALI CW-WW CV 10A with input currents of 10A is suitable for the control of constant voltage LED modules. The maximum input current can be distributed to the channels at will.
The dimmer has a DT8 function, which allows the control of light level and color (Device Type 8, Colour Type Tc). With the aid of the Balance & Dim function, control is possible via 2 DALI addresses, one for adjusting the light level and one for adjusting the channel balance (e.g. colour temperature).

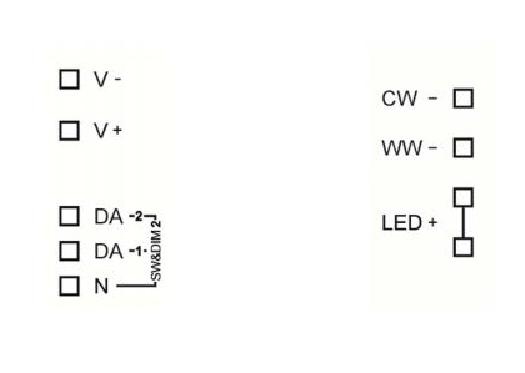

The Dim2Warm operating mode allows simultaneous adjustment of light level and colour temperature) via one DALI-adress. In SwitchDIM2 operation, light level and color can be controlled via 2 switch inputs without DALI.
The dimming range is between 0.1 and 100%.
The Lunatone DALI LED dimmer has an adjustable PMW frequency (122Hz / 244Hz / 488Hz / 976Hz). The supply voltage is 12V to 48V DC.
The CW-WW channel constant voltage LED dimmer has a low standby power consumption and a high efficiency.
The dimmer can be configurated via the PC software DALI-Cockpit and the DALI USB software. It is suitable for ceiling void mounting.
Downloads & Documents
Login
Electrical data
| rated voltage: | 12-48 V |
|---|---|
| conformity: | CE |
| lifetime: | 100000 h |
Casing
| ballproof: | no |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | flush mounting |
| environment temperature from: | -20 °C |
| environment temperature to: | 60 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
Logistic data
| item category: | light management |
|---|

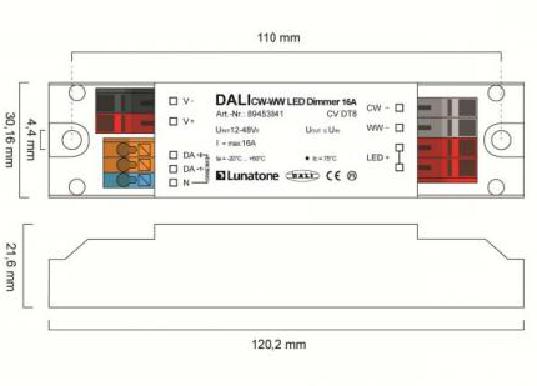

Dimensions & packaging
| EAN | 9010342012006 |
|---|---|
| Length | 120 mm |
| Width | 30 mm |
| Height | 22 mm |
| Weight | 61 g |
