Product information "Lunatone Light Management LED-Dimmer DALI CW-WW 500mA - 86458911-500"

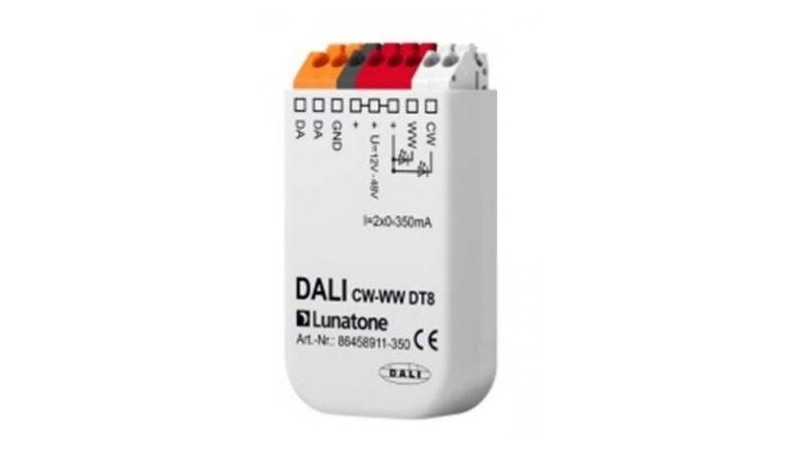

The CW-WW constant current DALI LED Dimmer DALI CW-WW 500mA with common plus corrector from Lunatone is suitable for the control of constant current LED modules up to 500mA.
The dimmer has a DT8 function, which allows the control of light level and color (Device Type 8, Colour Type Tc) With the aid of the Balance & Dim function, control is possible via 2 DALI addresses, one for adjusting the light level and one for adjusting the channel balance (e.g. colour temperature).
The Dim2Warm operating mode allows simultaneous adjustment of light level and colour temperature) via one DALI-adress. In SwitchDIM2 operation, light level and color can be controlled via 2 button inputs without DALI.
The dimming range is between 0.1 and 100%.
The Lunatone DALI LED dimmer has an adjustable PMW frequency (122Hz / 244Hz / 488Hz / 976Hz). The supply voltage is 12V to 48V DC, the output voltage is 45V DC.
A short circuit protection is integrated. In addition, the CW-WW channel constant current LED dimmer has a low standby power consumption and a high efficiency.
The dimmer can be configurated via the PC software DALI-Cockpit and the DALI USB software. It is suitable for installation.
Downloads & Documents
Login
Electrical data
rated voltage: | 12-48 V |
---|---|
conformity: | CE |
lifetime: | 100000 h |
Casing
ballproof: | no |
---|---|
fire protection: | no |
form type: | linear |
protection type: | IP20 |
mounting: | Installation |
environment temperature from: | -15 °C |
environment temperature to: | 50 °C |
Photometric data
color: | white |
---|---|
interface: | DALI |
solar panel: | no |
Logistic data
item category: | light management |
---|

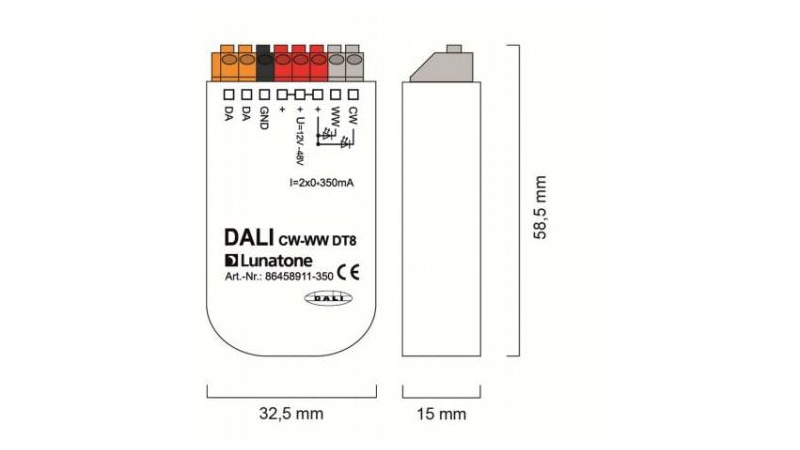

Dimensions & packaging
EAN | 9010342011900 |
---|---|
Length | 59 mm |
Width | 33 mm |
Height | 15 mm |
Weight | 18 g |
