Lunatone Light Management LED-Dimmer DALI 4Ch CC 700mA GM - 89453855-700GM
Lunatone Light Management LED-Dimmer DALI 4Ch CC 700mA GM - 89453855-700GM
Shipping in 5 day(s)
€136.14
Prices incl. VAT plus shipping costs net €114.40
Product information "Lunatone Light Management LED-Dimmer DALI 4Ch CC 700mA GM - 89453855-700GM"

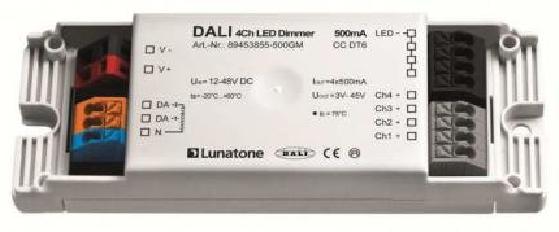

The 4-channel constant current DALI LED Dimmer DALI 4Ch CC 700mA GM with common minus corrector from Lunatone is suitable for the control of constant current LED modules up to 700mA.
The dimmer has a DT6 function, which allows individual channel control via 4 DALI addresses. With the aid of the Color & Dim function, control is possible via 2 DALI addresses, one for adjusting the light level and one for adjusting the color. In SwitchDIM2 operation, light level and color can be controlled via 2 button inputs without DALI.
The dimming range is between 0.1 and 100%.
The Lunatone DALI LED dimmer has an adjustable PMW frequency (122Hz / 244Hz / 488Hz / 976Hz). The supply voltage is 12V to 48V DC, the output voltage is 45V DC.
A short circuit protection is integrated. In addition, the 4-channel constant current LED dimmer has a low standby power consumption and a high efficiency.
The dimmer can be configurated via the PC software DALI-Cockpit and the DALI USB software. It is suitable for installation.
Downloads & Documents
Electrical data
| rated voltage: | 12-48 V |
|---|---|
| conformity: | CE |
| lifetime: | 100000 h |
Casing
| ballproof: | no |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | surface mounting |
| environment temperature from: | -20 °C |
| environment temperature to: | 60 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
Logistic data
| item category: | light management |
|---|---|
| country of origin: | Bulgaria |

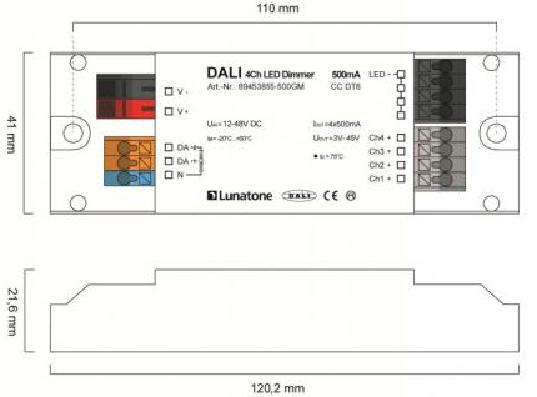

Dimensions & packaging
| EAN | 9010342011832 |
|---|---|
| Length | 120 mm |
| Width | 41 mm |
| Height | 22 mm |
| Weight | 81 g |
