Product information "Lunatone Light Management LED-Dimmer DALI 3Ch CC 500mA gem+ 89453846-500"

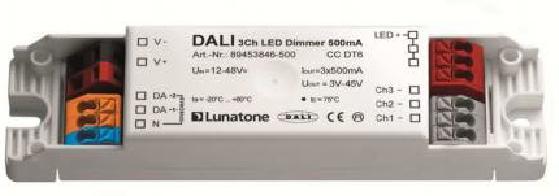

DALI constant current LED dimmer up to 500mA
The 3-channel constant current DALI LED dimmer with common positive pole from Lunatone enables the light regulation via DALI MC / Switch / Touchpanel. It is suitable for constant currents up to 500 mA. The dimming range is between 0.1% and 100%. In addition, the LED dimmer has a switchable PWM frequency (122Hz / 244Hz / 488Hz / 976Hz).
DT6, Color & Dim and SwitchDim2 mode

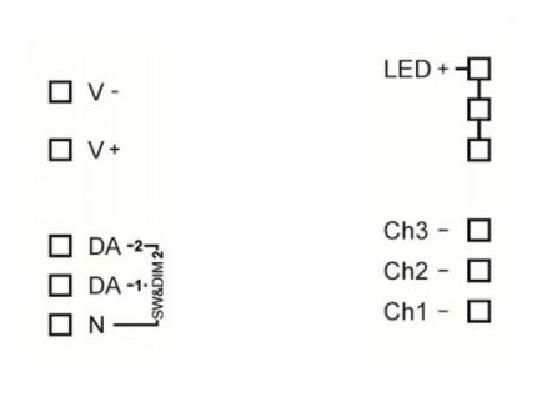

In DT6 mode, the channels are controlled separately via 3 DALI addresses. In the Color & Dim mode, the control takes place via 2 DALI addresses, one for adjusting the brightness and one for adjusting the color. The SwitchDim2 mode allows operation via 2 button inputs, so brightness and color can be controlled without DALI.
The output voltage is up to 45VDC. The Lunatone DALI LED dimmer has an integrated short-circuit protection. You benefit from low standby losses and high efficiency. The configuration takes place via the PC software DALI-Cockpit and the DALI USB interface. The LED dimmer comes in a user-friendly state.
Downloads & Documents
Datasheet-Lunatone-Light-Management-LED-Dimmer-DALI-3CH-CC-500mA-gem-plus-89453846-500_1592148230_3
Konformitaetserklaerung-Lunatone-Lichtmanagement-LED-Dimmer-DALI-3CH-CC-500mA-gem-plus-89453846-500_1592148230_5
Declaration-of-Confirmity-Lunatone-Light-Management-LED-Dimmer-DALI-3CH-CC-500mA-gem-plus-89453846-500_1592148230_6
Login
Electrical data
| rated voltage: | 12-48 V |
|---|---|
| lifetime: | 100000 h |
Casing
| ballproof: | no |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 60 °C |
Photometric data
| dimming range to: | 100 % |
|---|---|
| color: | white |
| interface: | DALI |
Logistic data
| item category: | light management |
|---|

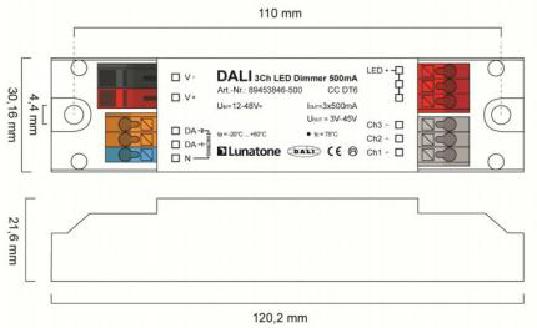

Dimensions & packaging
| EAN | 9010342011719 |
|---|---|
| Length | 120 mm |
| Width | 41 mm |
| Height | 22 mm |
| Weight | 61 g |
