Product information "Lunatone Light Management DALI Touchpanel BT 4.0 - 24035465-BT"

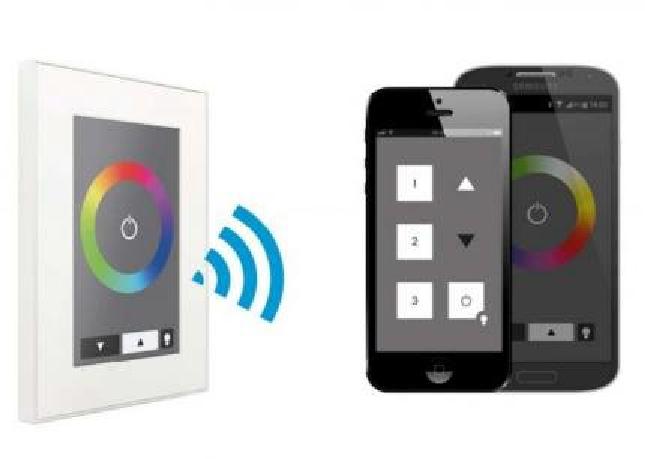

The light management DALI Touchpanel BT 4.0 is a DALI touchpanel with Bluetooth Low Energy interface for the control of DALI systems with mobile devices. It is an extension of the DALI Touchpanel: With this module, you can now easily operate DALI systems via your Smartphone or tablet. The respective app is available for iOS and Android.
The „DALI Touch“-App is available for IOS and Android and can be downloaded here.
All Bluetooth modules in the reception area are recognized and can be selected via the app on your smartphone. The app is protected by a PIN code.
The DALI Touchpanel BT 4.0 can be configured via the DALI Cockpit software function and the DALI USB interface. You benefit from individual layout design allowing button arrangement and the configuration of functions. As functions, you can assign either a change of layout or an action for sending DALI commands to each button. DALI commands can be sent to short addresses, group addresses or broadcast.

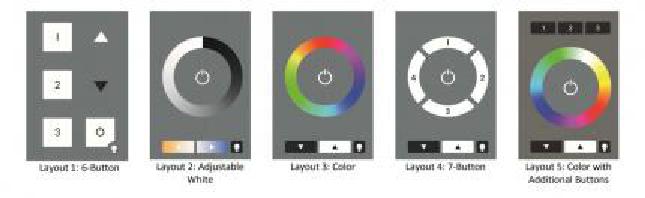

Up to 32 layouts are configurable. Five standard designs for color and color temperature control as well as for switching and dimming are already predefined and can be used without configuration.

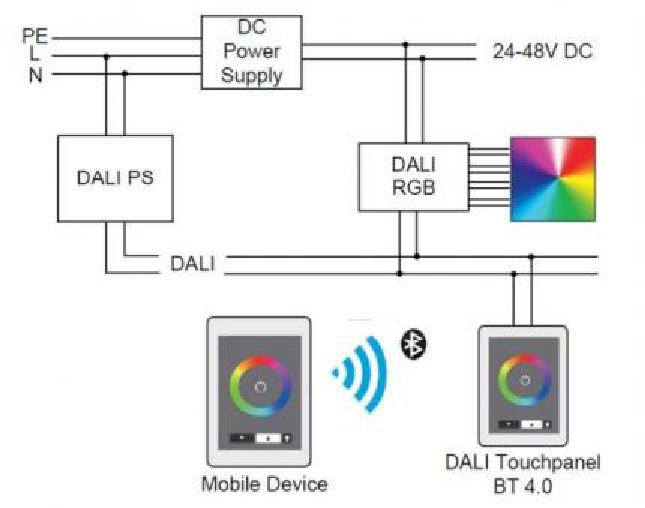

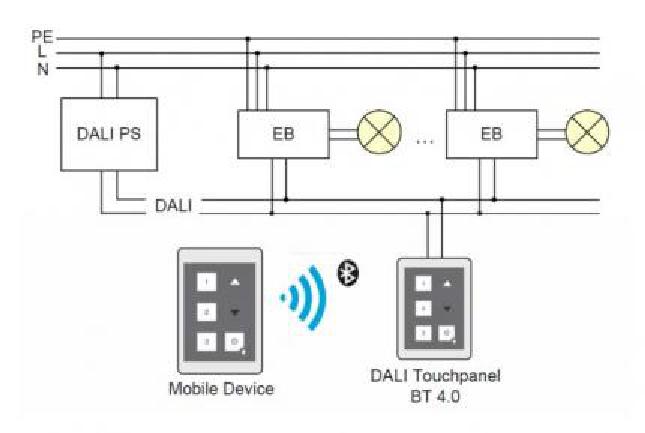

The Lunatone lighting management DALI Touchpanel BT 4.0 is multimaster-capable: more than one module can be installed on a DALI-line. The module is supplied directly via the DALI line.
The housing of the module is equipped with the IP20 protection.
Downloads & Documents
Login
Electrical data
| operating frequency: | 0/50-60 Hz |
|---|---|
| through wiring: | no |
| rated voltage: | DALI bus V |
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| mounting: | flush mounting |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
| solar panel: | no |
Logistic data
| item category: | light management |
|---|
Dimensions & packaging
| EAN | 9010342010286 |
|---|---|

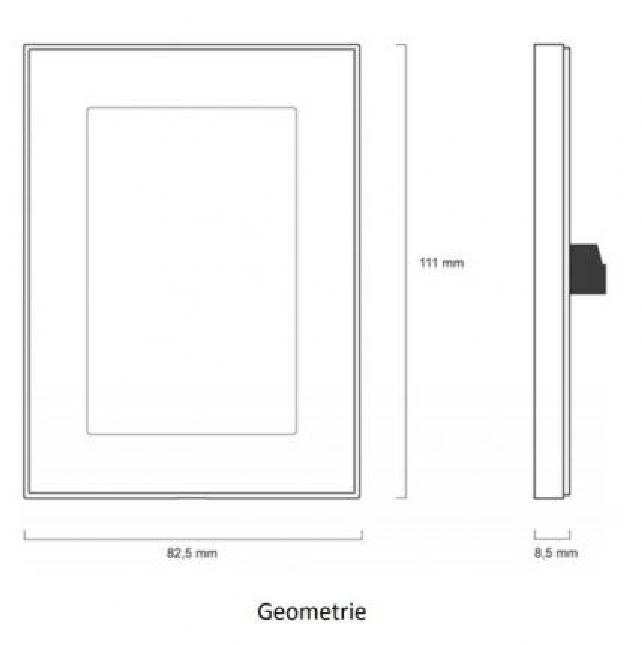

| Length | 111 mm |
| Width | 83 mm |
| Height | 9 mm |
| Weight | 98 g |
