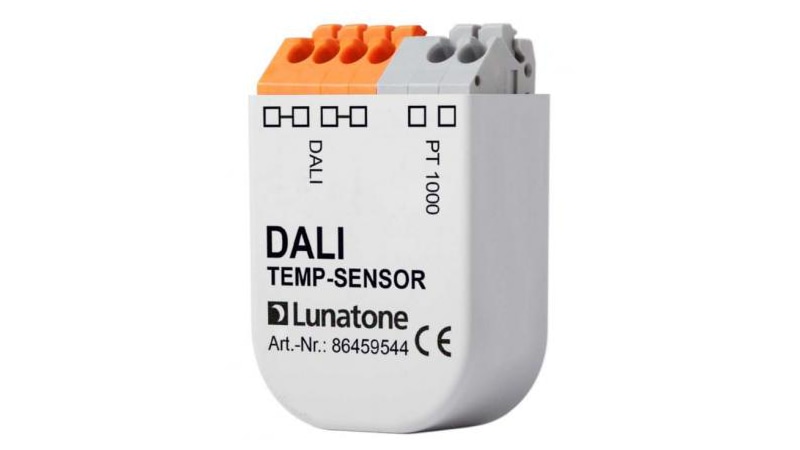

Lunatone Light Management DALI Temperature Sensor PT1000 - 86459544
Lunatone
Lunatone Light Management DALI Temperature Sensor PT1000 - 86459544
Product number:
86459544
Shipping in 14 day(s)
€56.17
Content:
1 Stück
Prices incl. VAT plus shipping costs net €47.20
Product information "Lunatone Light Management DALI Temperature Sensor PT1000 - 86459544"

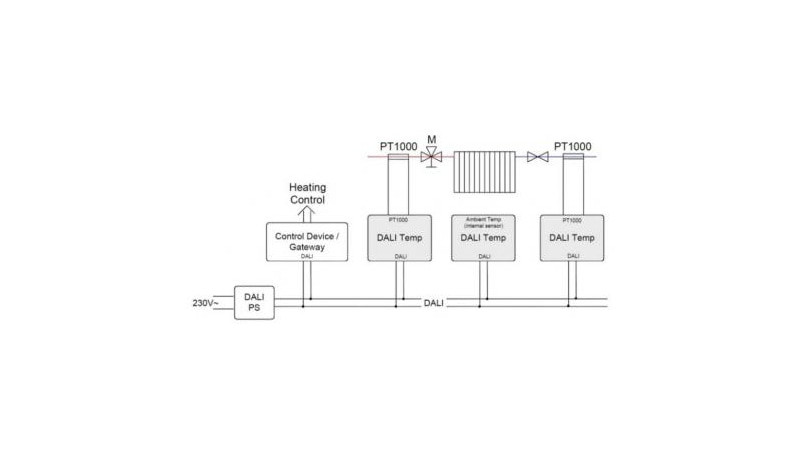

The DALI Temp PT1000 is suitable for temperature measurement. The measured value can be read out via DALI scene values. In addition to the internal temperature sensor, a PT1000 measuring sensor can be connected externally, for example to monitor the temperature of a luminaire, to control blinds or to determine temperature values such as the flow and return temperature of a heating system and to display them via the DALI Visual app.
Downloads & Documents
Electrical data
| operating frequency: | 0/50-60 Hz |
|---|---|
| rated voltage: | DALI bus V |
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| material: | plastic |
| mounting: | Installation |
| environment temperature to: | 85 °C |
Photometric data
| sensor: | yes |
|---|---|
| color: | white |
| interface: | DALI |
| solar panel: | no |
Logistic data
| item category: | light management |
|---|---|
| country of origin: | Bulgaria |
Dimensions & packaging
| EAN | 9010342010941 |
|---|---|
| Weight | 11 g |
