Lunatone Light Management DALI Radio-Receiver + Transceiver wDali RM8 86459542+T
Lunatone Light Management DALI Radio-Receiver + Transceiver wDali RM8 86459542+T
Shipping in 5 day(s)
€210.39
Prices incl. VAT plus shipping costs net €176.80
Product information "Lunatone Light Management DALI Radio-Receiver + Transceiver wDali RM8 86459542+T"

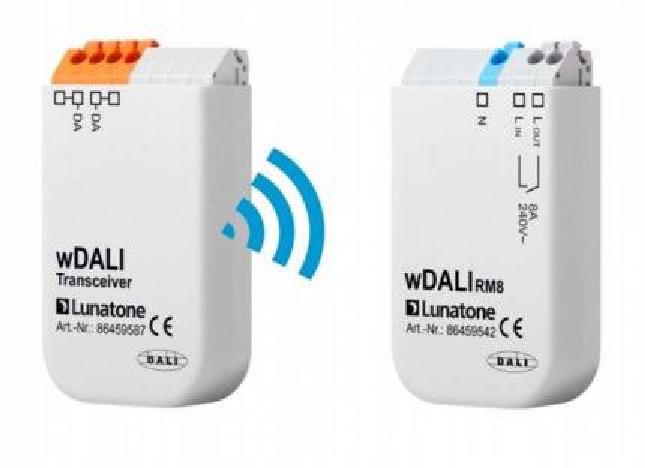

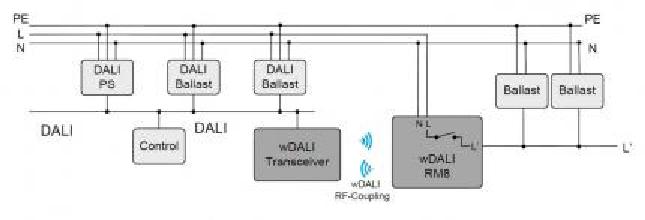

Using the Lunatone light management set, consisting of a DALI radio receiver and a wDali RM8 transceiver with a radius of up to 300m, switchable loads without a DALI input can be connected to a DALI circuit. The loads can then be switched on and off with DALI commands.
The Lunatone interface has a DALI address and can be assigned to groups and scenes. It is easily configured via the DALI-Cockpit software tool.
The transmitting unit is supplied directly via the DALI line ; the receiver is supplied via the switching relay from the mains.
The devices are suitable for flush mounting.
Electrical data
| rated voltage: | DALI bus V |
|---|---|
| conformity: | CE |
| lifetime: | 100000 h |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 60 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
Logistic data
| item category: | light management |
|---|---|
| country of origin: | Bulgaria |

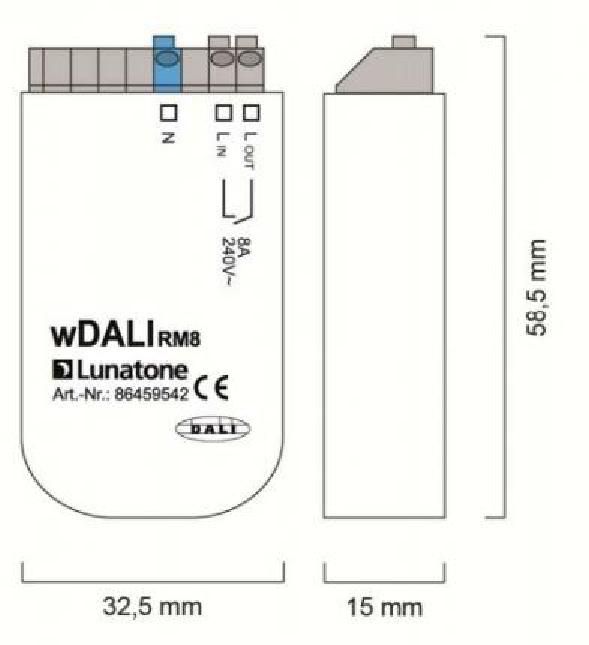

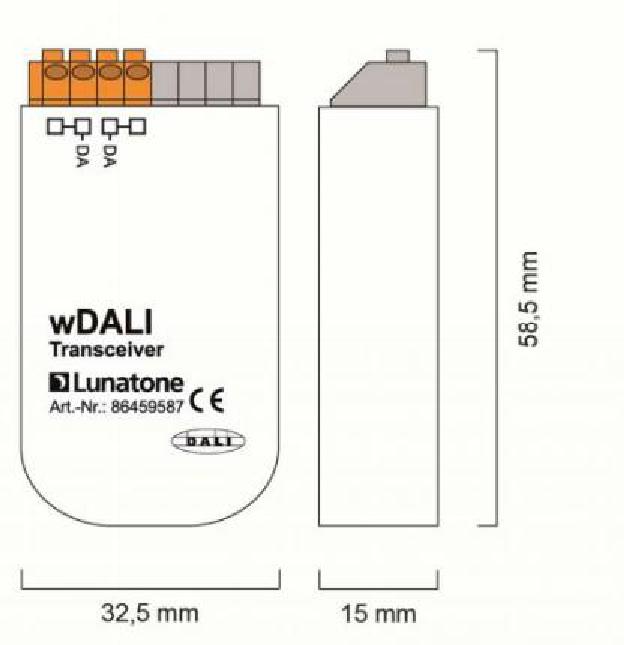

Dimensions & packaging
| EAN | 9010342011061 |
|---|---|
| Length | 59 mm |
| Width | 33 mm |
| Height | 15 mm |
| Weight | 37 g |
