Lunatone Light Management DALI Radio Control Push Button Module + Transceiver wDALI Switch Cross White - 86459541-W+T
Lunatone Light Management DALI Radio Control Push Button Module + Transceiver wDALI Switch Cross White - 86459541-W+T
Shipping in 5 day(s)
€233.98
net €196.62
Product information "Lunatone Light Management DALI Radio Control Push Button Module + Transceiver wDALI Switch Cross White - 86459541-W+T"

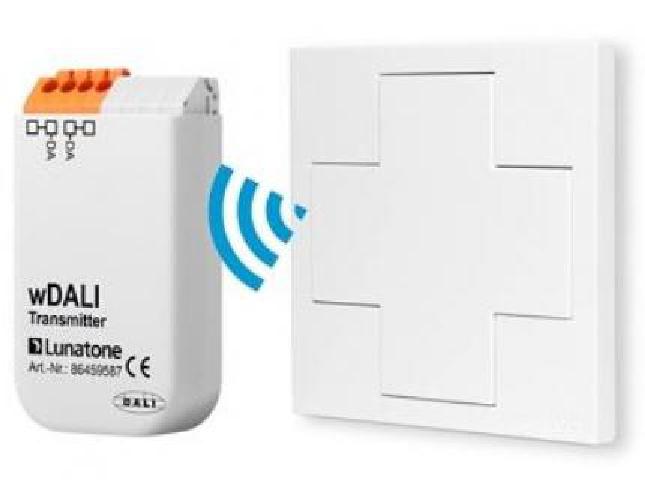

Using the Lunatone light management set, consisting of a white 4-button radio control push button module and a transceiver, DALI systems with Lunatone components can be operated wirelessly.

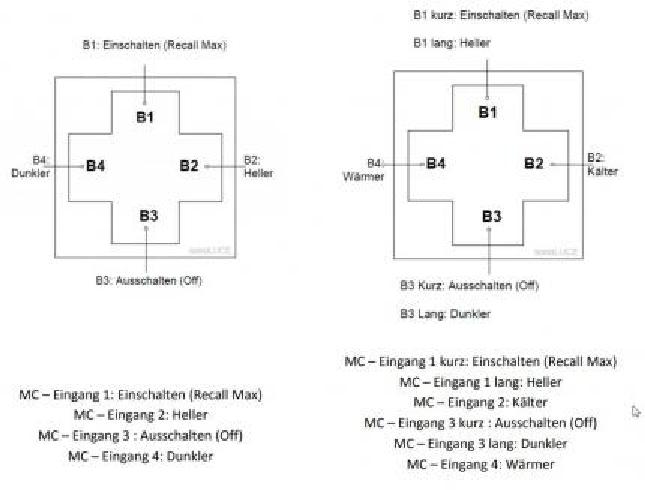

Up to 4 effective ranges with individual functions (DALI commands) can be assigned to each push button. DALI individual addresses, groups or broadcast can be set as effective ranges. In addition, various switching modes (short / long press, toggle, stairways function) can be assigned to each push button.
The system has the DALI DT8-support for adjustable white luminaires and a configurable power up function as well as a memory function for brightness. It can be easily configured via the DALI cockpit software tool. The factory default setting also allows basic control functions without configuration.
You can use several wDALI transceivers on the same DALI circuit. The transceiver is supplied directly by the DALI line, so no additional connection to the mains is needed.
Electrical data
| operating frequency: | 0/50-60 Hz |
|---|---|
| through wiring: | no |
| rated voltage: | Batterie V |
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| mounting: | surface mounting |
| environment temperature from: | -10 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
| solar panel: | no |
Logistic data
| item category: | light management |
|---|
Dimensions & packaging
| EAN | 9010342011016 |
|---|---|
| Weight | 84 g |
Lunatone Industrielle Elektronik GmbH
Paukerwerkstraße 5
1210 Wien
AT
office@lunatone.com
www.lunatone.com
