Product information "Lunatone Light Management DALI Controller wDALI MC + Transceiver - 89453848+T"

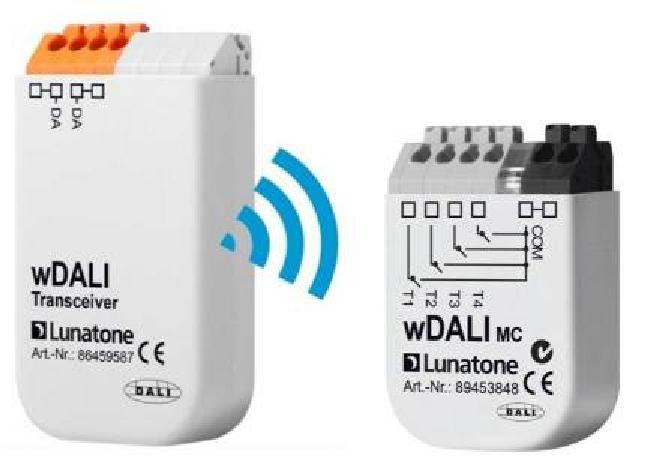

The Lunatone light management set,consisting of an IP20 protected wireless DALI controller wDALI MC andtransceiver, enables the wireless radio control of DALI systems. It is suitable for recessed mounting and flush mounting.

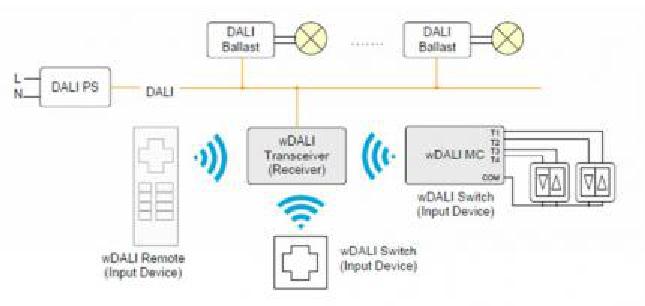

The DALI control module is connectedwirelessly to the DALI line. The battery-operated input device has 4 switchinginputs and can be installed at any location in the receiving radius of thetranceiver unit connected to the DALI bus. An address, a switching behavior andDALI commands can be assigned to each input of the wDALI MC. The following DALIcommands are available: dim up, dim down, recall min., Recall max., Go to scene1-16, direct arcpower ...%, mask and predefined macros.
A configurable "Power Up" function and amemory function for the brightness are integrated. The Lunatone wDALI MC can beeasily configured via the DALI cockpit software tool.

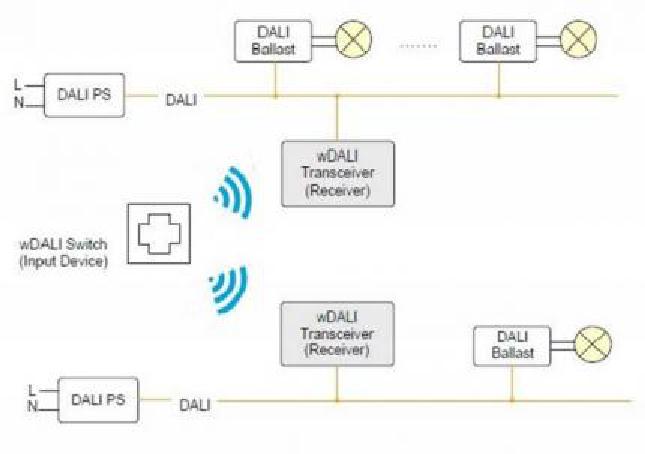

The transceiver is supplied via theDALI line so that no additional connection is needed. Multiple wDALItransceivers can be used on the same DALI signal line.
Downloads & Documents
Login
Electrical data
| rated voltage: | Batterie V |
|---|---|
| conformity: | CE |
Casing
| protection type: | IP20 |
|---|---|
| mounting: | flush mounting |
| environment temperature from: | -10 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | light management |
|---|

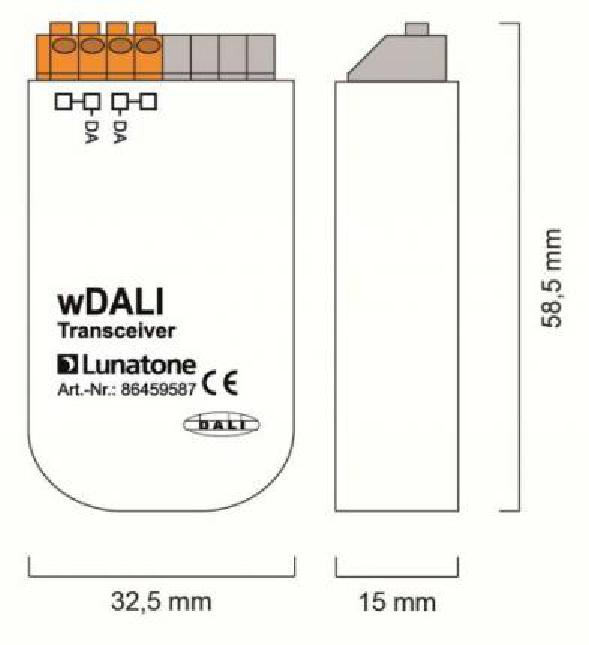

Dimensions & packaging
| EAN | 9010342011030 |
|---|---|
| Length | 59 mm |
| Width | 33 mm |
| Height | 15 mm |
| Weight | 29 g |
