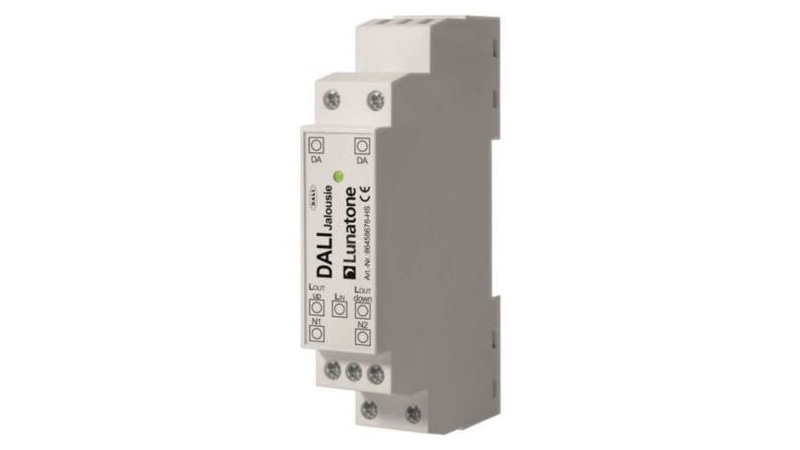

Product information "Lunatone Light Management DALI Blinds-Control Module DIN-Rail - 86458676-HS"

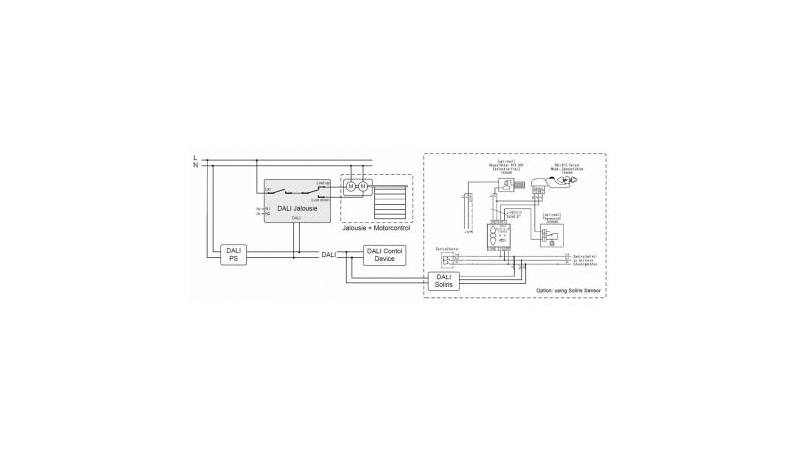

Lunatone's DALI blinds-control module is the perfect tool for controlling blind motor controls with separate 230V inputs for up and down via DALI. The outputs are interlocked and suitable for currents up to 4A. It is suitable for DIN rail mounting.
The blind control module has a DALI address and four programmable profiles for adjusting the tilt angle or opening / closing the blind.
The module is controlled via the DALI commands RECALL MAX or UP for "Up" and RECALL MIN or DOWN for "Down". The process continues until an OFF stops the engine control.
The interface is supplied directly via the DALI line, so that no additional supply is necessary.
The connection of a Somfy Soliris wind, sun and rain sensor in combination with DALI Soliris module is also possible.
Downloads & Documents
Login
Electrical data
| operating frequency: | 0/50-60 Hz |
|---|---|
| through wiring: | no |
| rated voltage: | DALI bus V |
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| mounting: | rail |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
| solar panel: | no |
Logistic data
| item category: | light management |
|---|

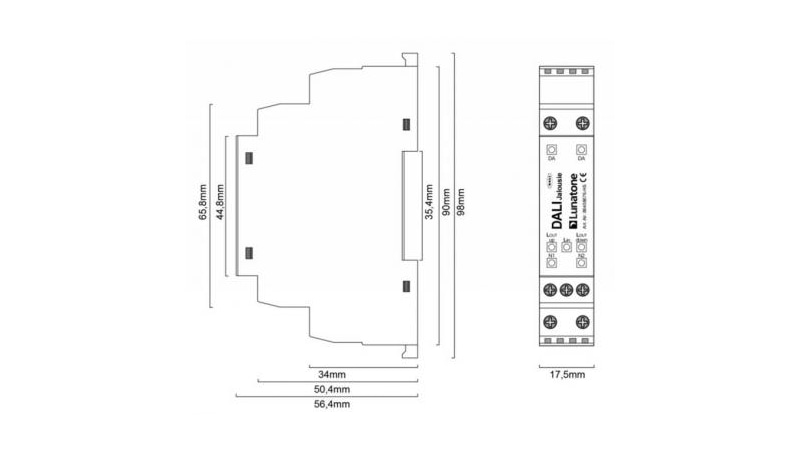

Dimensions & packaging
| EAN | 9010342011238 |
|---|---|
| Length | 98 mm |
| Width | 17 mm |
| Height | 56 mm |
| Weight | 67 g |
