Product information "Lunatone Lichtmanagement LED-Dimmer DALI RGB CV 4A - 89453837"
The Lunatone RGB constant voltage DALI LED Dimmer DALI RGB CV 4A with 4A maximum input currents is suitable for the control of constant voltage LED modules. The maximum input current can be distributed on the channels at will.
The dimmer has a DT8 function, which allows the control of light level and color (DALI DT8, Type RGBWAF) via one DALI adress. With the aid of the Color & Dim function, control is possible via 2 DALI addresses, one for adjusting the light level and one for adjusting the color. In SwitchDIM2 operation, light level and color can be controlled via 2 switch inputs without DALI.
The dimming range is between 0.1 and 100%.
The Lunatone DALI LED dimmer has an adjustable PMW frequency (122Hz / 244Hz / 488Hz / 976Hz). The supply voltage is 12V to 48V DC.
The RGB constant voltage LED dimmer has a low standby power consumption and a high efficiency.
The dimmer can be configurated via the PC software DALI-Cockpit and the DALI USB software. It is suitable for installation.
Downloads & Documents
Login
Electrical data
rated voltage: | 12-48 V |
---|---|
conformity: | CE |
lifetime: | 100000 h |
Casing
ballproof: | no |
---|---|
fire protection: | no |
form type: | linear |
protection type: | IP20 |
mounting: | Installation |
environment temperature from: | -20 °C |
environment temperature to: | 60 °C |
Photometric data
color: | white |
---|---|
interface: | DALI |
solar panel: | no |
Logistic data
item category: | light management |
---|

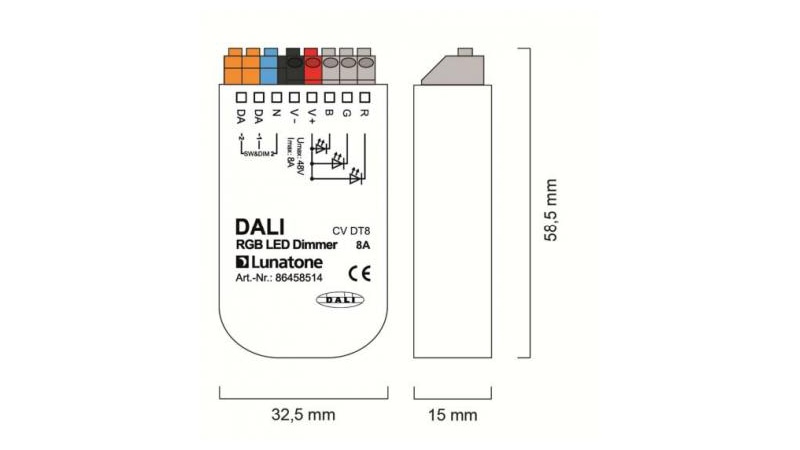

Dimensions & packaging
EAN | 9010342012099 |
---|---|
Length | 59 mm |
Width | 33 mm |
Height | 15 mm |
Weight | 18 g |
