Product information "Ledvance PANEL PFM HO DALI 600 UGR - 4058075113282"

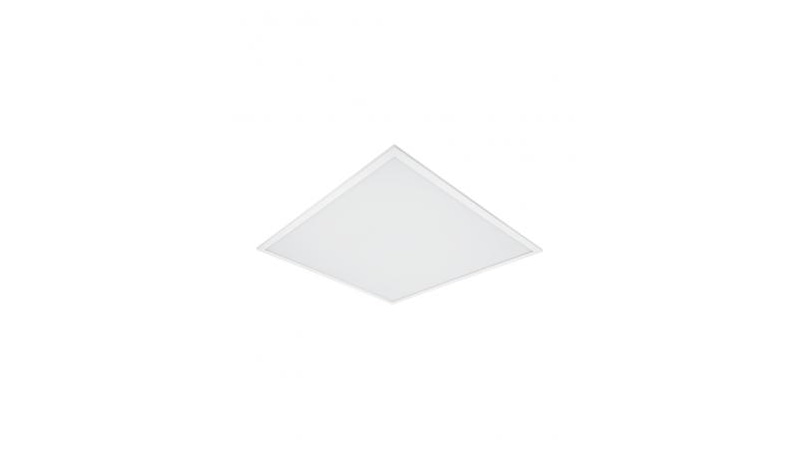

Square recessed panel luminaires with high luminous flux, DALI driver, low glare, 600 x 600 mm.
- Luminous flux: up to 4,320 lm
- High luminous efficacy: up to 120 lm/W
- Lifetime (L80/B50): up to 60,000 h (at 25 °C)
- Aluminum housing, polystyrene diffuser
Product benefits
- High lumen output reduces the total number of panels per installation
- Good glare reduction (UGR < 19)
- Light guide plate with micro structure made of non-yellowing material for long lifetime
- Low flicker light thanks to special electronic control gear
- Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Corridors
- Offices
- Conference rooms
- Reception areas
- Foyers
- Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Equipment / accessories
- Accessories for several mounting options available
- Security rope for luminaire included
- External control gear included
Downloads & Documents
Electrical data
| rated voltage: | 220-240 V |
|---|---|
| switching cycles: | 25000 |
Casing
| form type: | square |
|---|---|
| protection type: | IP20 |
| material: | aluminum |
| mounting: | Installation |
| impact resist: | IK03 |
| protection class: | II |
| environment temperature from: | -10 °C |
| environment temperature to: | 40 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| color temperature [Kelvin]: | 3000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 120 lm/W |
| lum flux: | 4320 lm |
Logistic data
| item category: | LED panel luminaires |
|---|
Dimensions & packaging
| EAN | 4058075113282 |
|---|---|
| Length | 595 mm |
| Width | 122 mm |
| Height | 122 mm |
| Weight | 3600 g |
