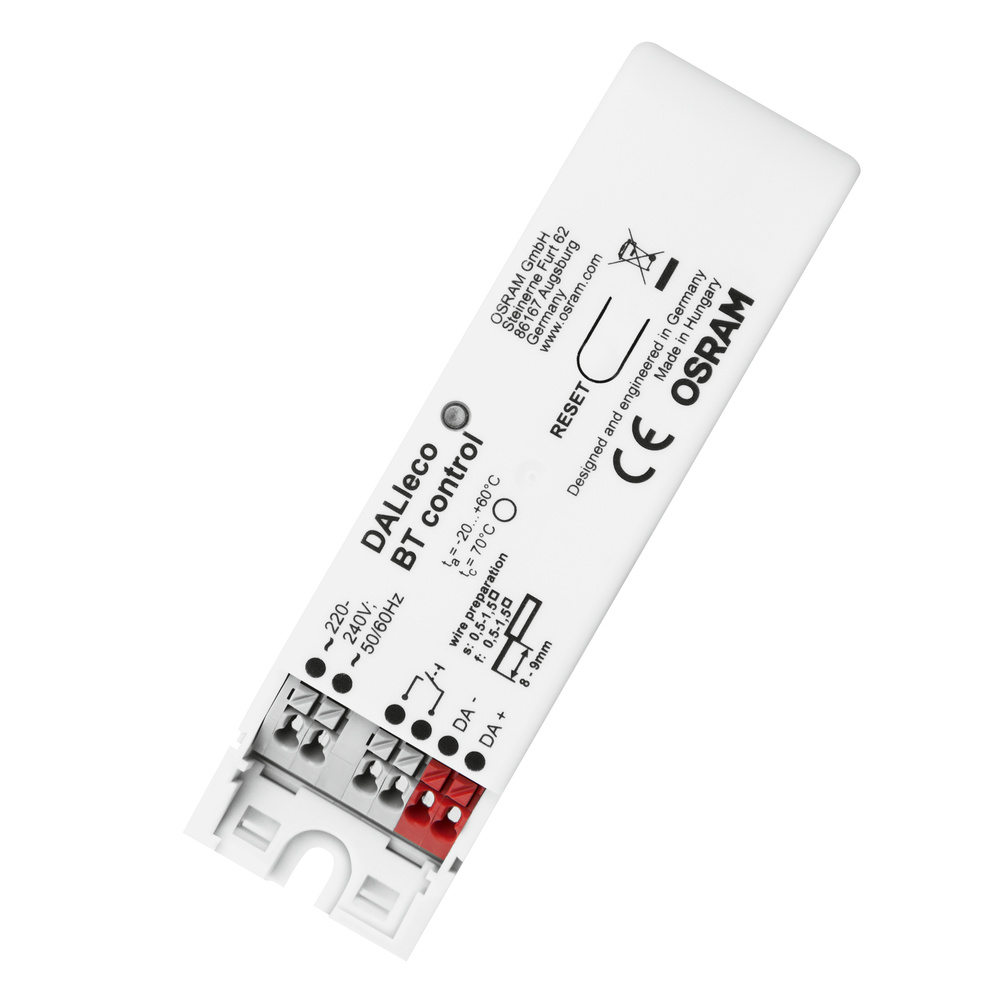

Ledvance control unit DALIeco BT CONTROL BT CONTROL - 4052899988781

LEDVANCE

Ledvance control unit DALIeco BT CONTROL BT CONTROL - 4052899988781

Product number: 4052899988781

Immediately available

Alternative Products

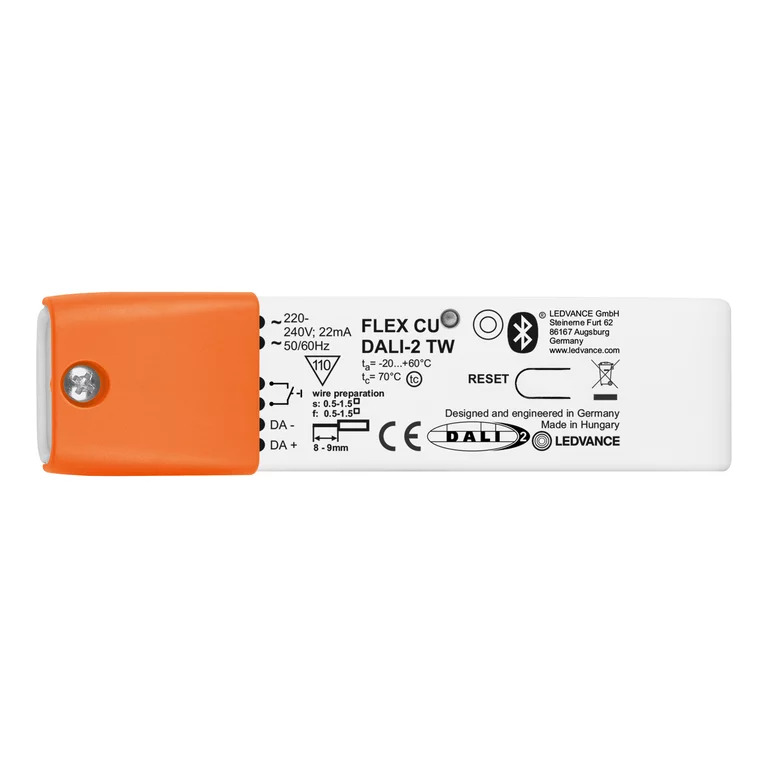

LEDVANCE FLEX CONTROL UNIT DALI-2 TW - 4058075843844
€119.00 inkl. MwSt.

Shipping in 3 day(s)

€94.51


Content: 1 Stück

Prices incl. VAT plus shipping costs net €79.42

Alternative Products

LEDVANCE FLEX CONTROL UNIT DALI-2 TW - 4058075843844
€119.00 inkl. MwSt.

Shipping in 3 day(s)

Product information "Ledvance control unit DALIeco BT CONTROL BT CONTROL - 4052899988781"

control unit for light management systems. Product properties:
  • Compact light control device with DALI interface
  • Smartphone connection with Bluetooth connection for control and adapting
  • A DALI output channel (Broadcast or Groupcast)
  • For 32 DALI lights. >
  • Supports Dali DT8 Tunable White Driver
  • Outputs with electronically reversible over temperature, short-circuit, overload protection
  • Line length of the DALI control line: Up to 300 m
    • < Li> Cable length up to the button: Up to 50 m
  • Suitable for installation of light
    • Product advantages:
  • Controlling the lighting via smartphone
  • Adjustment options via smartphone
  • Plug and Play: Basic functions available without app
  • simplified commissioning thanks to predefined radio modes
  • Intuitive manual dimming, switching and setting of the color temperature
  • up to 4 groups separated separately
  • Adjustable offset for different groups
  • Creation of scenes in the app
  • Call via Osram Dali Pro PB Tastenkoppler possible
  • firmware update wirelessly possible via Bluetooth
  • integrated DALI supply
  • Control of standard white or tunable white light according to Dali Device Type 8 (DT8)*
  • Selected DALI parameters Set up via app
    • Areas of application:
  • Starting lights
    • < Li> Office spaces
  • meeting rooms
  • Training rooms
  • Classroom
  • Corridore
  • Shop lighting
    • . Technical equipment:
  • Free app for iOS and Android available in the App Store
  • ceiling installation or independent assembly via ECO CI KIT possible
    • Electrical data
    operating frequency: 50/60 Hz
    system power: 3
    Casing
    protection type: IP20
    protection class: II
    Photometric data
    dimmable: no
    Logistic data
    item category: lamps
    country of origin: Hungary

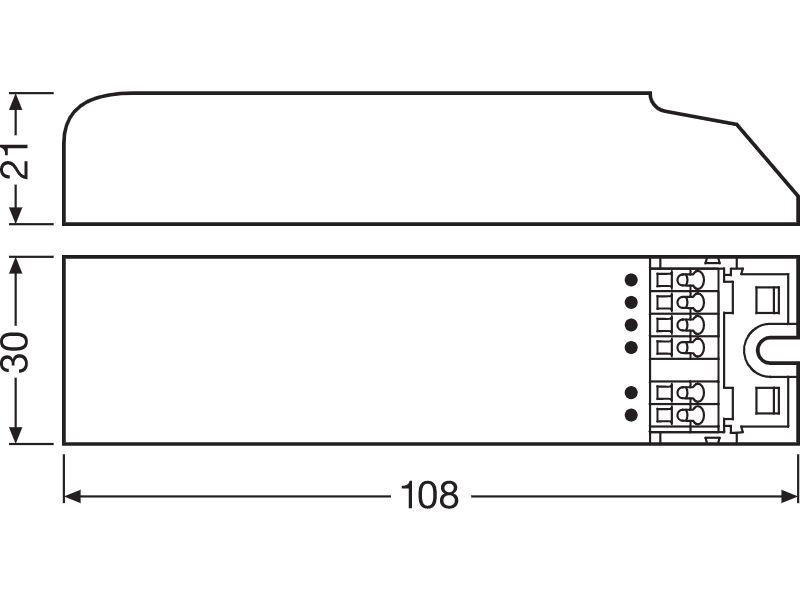

    Dimensions & packaging
    EAN 4052899988781
    Length 108 mm
    Width 30 mm
    Height 21 mm
    Weight 45 g
