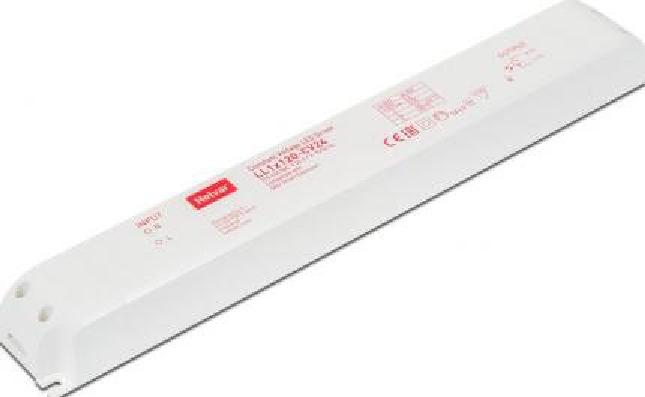

Helvar LED-Driver LL1x120-CV24 - 5576000
Product information "Helvar LED-Driver LL1x120-CV24 - 5576000"
24V constant voltage LED ECG with up to 120W
The 24V constant voltage LED driver LL1x120-CV24 from Helvar is suitable for installation in Class I and II luminaires or for independent mounting. It has a nominal output of up to 120 watts.
Double insulated housing
The LED ECG is protected against open circuit, short circuit and overload. It also has a double insulated housing. The lifespan is 30,000 hours.
Downloads & Documents
Datenblatt-Helvar-LED-Treiber-LL1x120-CV24-5576000_1592168734_1
Konformitaetserklaerung-Zertifikat-Helvar-LED-Treiber-LL1x120-CV24-5576000_1592168734_2
Datasheet-Helvar-LED-Driver-LL1x120-CV24-5576000_1592168734_3
Declaration-of-Confirmity-Certificate-Helvar-LED-Driver-LL1x120-CV24-5576000_1592168728_8
Konformitaetserklaerung-Zertifikat-Helvar-LED-Treiber-LL1x120-CV24-5576000_1592168734_2
Datasheet-Helvar-LED-Driver-LL1x120-CV24-5576000_1592168734_3
Declaration-of-Confirmity-Certificate-Helvar-LED-Driver-LL1x120-CV24-5576000_1592168728_8
Electrical data
| number of channels: | 1 |
|---|---|
| output voltage: | 24 |
| rated voltage: | 220-240 V |
| lifetime: | 30000 h |
| system power: | 120 |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 90 °C |
| protection type: | IP20 |
| mounting: | with strain relief |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 45 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | LED drivers |
|---|

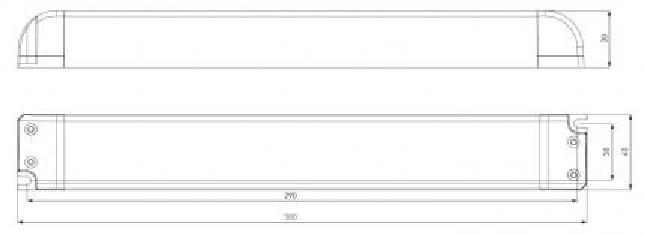

Dimensions & packaging
| Length | 300 mm |
|---|---|
| Width | 40 mm |
| Height | 30 mm |
Helvar Oy Ab
Keilaranta 5
02150 Espoo
Finnland
https://helvar.com/de/
