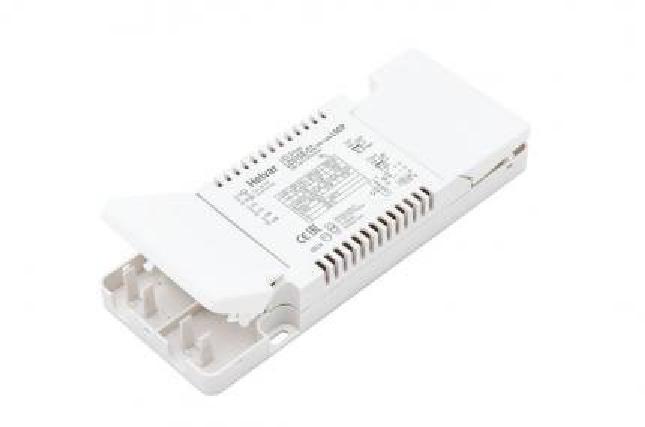

Helvar LED-Driver LC51SE-CC-900-1400-LOOP - 5740001
Product information "Helvar LED-Driver LC51SE-CC-900-1400-LOOP - 5740001"
Compact 51W constant current LED ECG
The constant current LED driver LC51SE-CC-900-1400-LOOP by Helvar is ideal for installation in Class I and II luminaires. The nominal power is up to 51 watts. It is suitable for DC operation.
Output current adjustable
The LED ECG has a very low current ripple according to IEEE 1789 standard. SELV output protection ensures safety and flexibility in luminaires. The output current can be set between 900 mA and 1400 mA.
The LED driver has an optimized mechanism for independent applications. Integrated, spacious strain reliefs with screwless clamps ensure a quick and simple installation process. Double input terminals allow looping through the mains cable.
The long lifetime of the Helvar LED driver is 100,000 hours.
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 60000 h |
Casing
| form type: | rectangular |
|---|---|
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| mounting: | with strain relief |
| protection class: | I |
| environment temperature from: | -25 °C |
| environment temperature to: | 45 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | LED drivers |
|---|

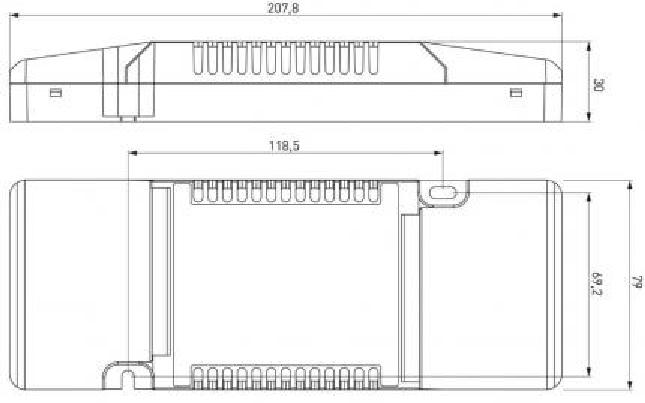

Dimensions & packaging
| Length | 208 mm |
|---|---|
| Width | 79 mm |
| Height | 30 mm |
