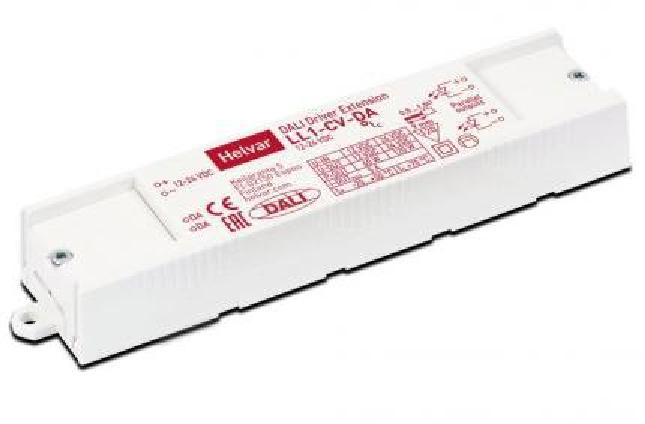

Product information "Helvar LED Driver DALI Dimmkonverter LL1-CV-DA - 5700000"
Dimming converter for constant voltage LED ECG
The 12-24V dimming converter LL1-CV-DA from Helvar is suitable for use with the Helvar constant voltage LED drivers and creates solutions for your decorative lighting: it enables the use of DALI control in 12-24V constant voltage lighting applications. The dimming range is between 0.1 and 100%. The converter runs on a 1 kHz PWM dimming frequency.
Parallel connection possible
The dimming converter is a device of protection class III, which is suitable for luminaires of protection class I, II and III (SELV) as well as for independent mounting. It convinces with a low standby power of less than 0.1 watts. The duplicated output terminals allow optional parallel connection. The DALI input is doubly isolated from the driver input and output.
Downloads & Documents
Datasheet-Helvar-LED-Driver-DALI-Dimming-converter-LL1-CV-DA-5700000_1592146291_2
Konformitaetserklaerung-Helvar-LED-Treiber-DALI-Dimmkonverter-LL1-CV-DA-5700000_1592146291_3
Declaration-of-Confirmity-Helvar-LED-Driver-DALI-Dimming-converter-LL1-CV-DA-5700000_1592146291_4
Login
Electrical data
| number of channels: | 1 |
|---|---|
| system power: | 60 |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 70 °C |
| protection type: | IP20 |
| mounting: | with strain relief |
| protection class: | III |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimming range to: | 100 % |
|---|---|
| dimming range from: | 1 % |
| color: | white |
| interface: | DALI |
Logistic data
| item category: | LED drivers |
|---|

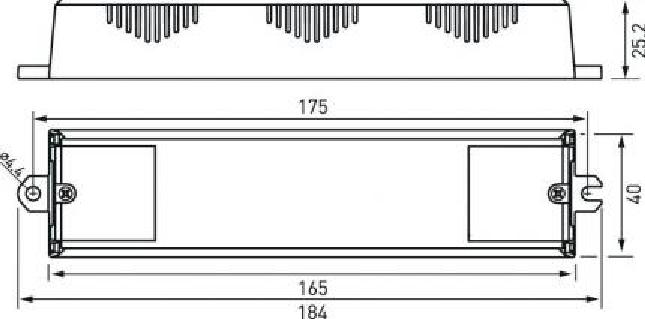

Dimensions & packaging
| Length | 184 mm |
|---|---|
| Width | 40 mm |
| Height | 25 mm |
