Product information "Helvar FL-ECG EL2x80ngn5 220-240V 50-60Hz - 4016001"

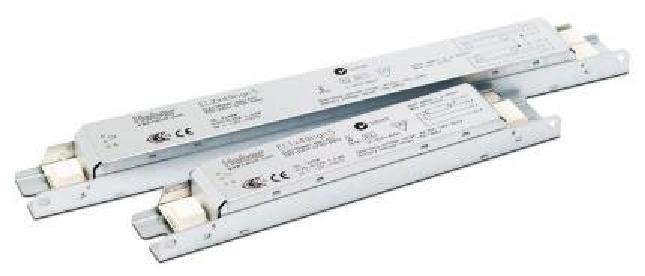

2-flame 80 W FL ECG for T5 lamps

The 2-flame electronic ballast EL2x80ngn5 for T5 fluorescent lamps by Helvar is suitable for luminaire installation. It has a maximum rated power of 80 watts. The ballast features an excellent thermal design that delivers the highest energy savings and highest reliability - thus minimizing the impact on the environment. The FL ECG has energy efficiency class A2 BAT.

The FL ECG offers standard and sidemount options. You also benefit from optimal lamp operation, low power losses and a long life (60,000 hours). The performed warm start protects the lamp.

High quality components and materials

Helvar uses only high quality components and materials in the manufacture of its ballasts – no wonder failure rates are among the lowest in the market, exceeding industry expectations tenfold. Helvar's manufacturing processes are also ISO 9001 and ISO 14001 certified.

Due to their excellent EMC performance, the EL ngn5 models are suitable for use in protection class II fittings. By operating with multiple lamps, an ECG can operate all HE-T5 lamps in one installation. It is also possible to operate a combination of T5 / TC-L lamps with a ballast. This offers great advantages in terms of reduced logistics and transport costs as well as a contribution to reducing CO2 emissions.

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Electrical data
number of channels: 2
energy efficiency index: A2 BAT
rated voltage: 220-240 V
lifetime: 60000 h
system power: 80
form type: linear
max housing temperature (tc-max): 75 °C
mounting: Installation
environment temperature from: -20 °C
environment temperature to: 50 °C
Photometric data
color: white
lamp type: TC-L, T5
Logistic data
item category: electronic ballasts

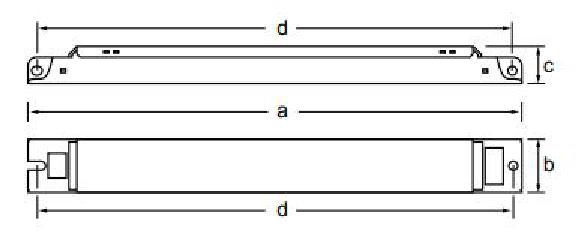

Dimensions & packaging
EAN 6418488401600
Length 360 mm
Width 30 mm
Height 21 mm
