Helvar FL-ECG EL2X80iDim 220-240V 50-60Hz - 4357000

Helvar Oy AB

Helvar FL-ECG EL2X80iDim 220-240V 50-60Hz - 4357000

Product number: 4357000

Immediately available

€104.58


Content: 1 Stück

Prices incl. VAT plus shipping costs net €87.88

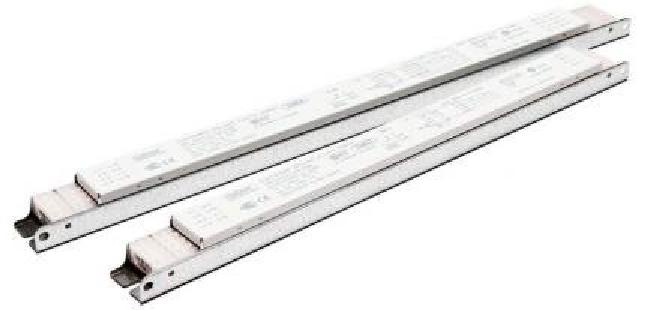

Product information "Helvar FL-ECG EL2X80iDim 220-240V 50-60Hz - 4357000"

DALI dimmable 2-flame 80 W FL ECG for T5

The DALI dimmable 2-flame electronic ballast EL2X80iDim for T5 fluorescent lamps from Helvar is suitable for luminaire installation. It has a nominal power of 80 watts and a very low standby power (0.3 W). The dimming range is between 1 and 100%.

The FL ECG only has a height of 21 mm and offers standard and sidemount options. In addition, it is very user-friendly thanks to the quick release. To protect the lamp, a warm start is performed. The ballast is controlled by a state-of-the-art microprocessor that ensures energy savings, quality and light comfort. The OCC technology ensures the highest possible energy class EEI = A1BAT.

For individual luminaires or lighting systems

The Helvar EL-iDim DALI ballasts are designed for a wide range of applications - from the smallest intelligent luminaires to major lighting installations in large building complexes. In building management systems, the DALI-FL ECGs can provide information about energy consumption, running time etc: on-line and directly from the luminaire.

In addition, the ballasts are fully compatible with the Helvar iDim sensors and, through this combination, create a high-tech innovation for the lighting market. The out-of-box functionality makes the Helvar system easy to install and use, and maintenance costs are always kept to a minimum. The rated lifetime is 50,000 hours.

Electrical data
number of channels: 2
energy efficiency index: A1BAT
rated voltage: 220-240 V
lifetime: 50000 h
system power: 80
Casing
form type: linear
max housing temperature (tc-max): 75 °C
mounting: Installation
environment temperature from: 10 °C
environment temperature to: 50 °C
Photometric data
dimmable: yes
dimming range to: 100 %
dimming range from: 1 %
color: white
lamp type: T5
interface: DALI
Logistic data
item category: electronic ballasts

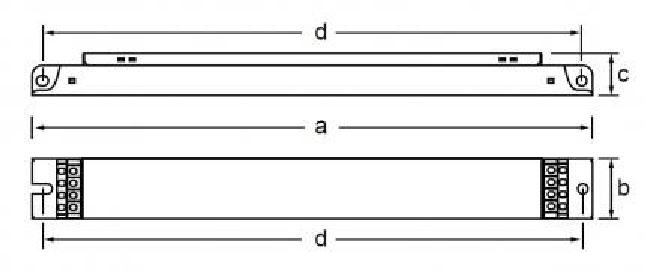

Dimensions & packaging
EAN 6418488043572
Length 430 mm
Width 30 mm
Height 21 mm
