Helvar FL-ECG EL2X36sc 220-240V 50-60 - 4943000

Helvar Oy AB

Helvar FL-ECG EL2X36sc 220-240V 50-60 - 4943000

Product number: 4943000

Immediately available

€75.83


Content: 1 Stück

Prices incl. VAT plus shipping costs net €63.72

Product information "Helvar FL-ECG EL2X36sc 220-240V 50-60 - 4943000"

1-10V dimmable 2-flame 36W FL ECG for T8

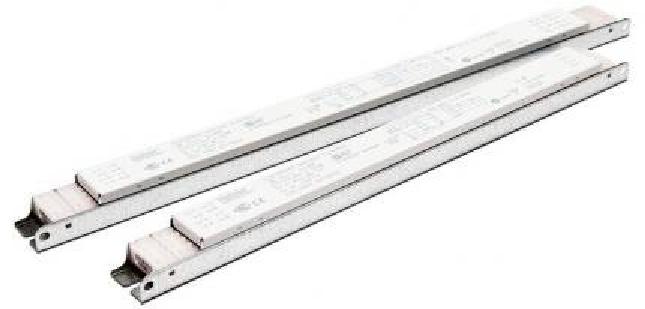

The 1-10 V dimmable 2-flame electronic ballast EL2X36sc for T8 fluorescent lamps from Helvar is suitable for luminaire installation. It has a nominal power of 36 watts and convinces with a stabilized, flicker-free light output and a very low standby power. The dimming range is between 1 and 100%.

The FL ECG only has a height of 21 mm and offers standard as well as sidemount options. In addition, it is very user-friendly thanks to a quick-release connector.

Microprocessor for energy savings and quality

The controllable Helvar ballasts are controlled by state-of-the-art microprocessors that ensure energy savings, quality and lighting comfort. The OCC technology ensures the highest possible energy class EEI = A1BAT.

The EL-sc series has a multi-control function, which makes dimming possible via an analog 1-10 VDC signal or via contact closure (switch control). The method is unique in that both dimming methods are used which allows a high degree of flexibility in the lighting design.

Electrical data
number of channels: 2
conformity: CE
system power: 36
Casing
ballproof: no
fire protection: no
form type: linear
Photometric data
sensor: no
dimmable: yes
color: white
lamp type: TC-L, T8
inclusive lamp: no
interface: 1-10 V
sensor type: no
solar panel: no
Logistic data
item category: electronic ballasts

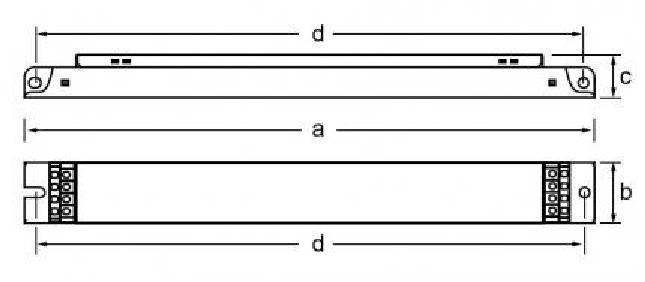

Dimensions & packaging
EAN 6410040208337
Length 430 mm
Width 30 mm
Height 21 mm
Weight 330 g

Helvar Oy Ab
Keilaranta 5
02150 Espoo Finnland
https://helvar.com/de/
