Product information "Helvar FL-ECG EL1X55iDim 220-240V 50-60Hz - 4349000"
DALI dimmable FL ECG with 55 W for TC-L lamps

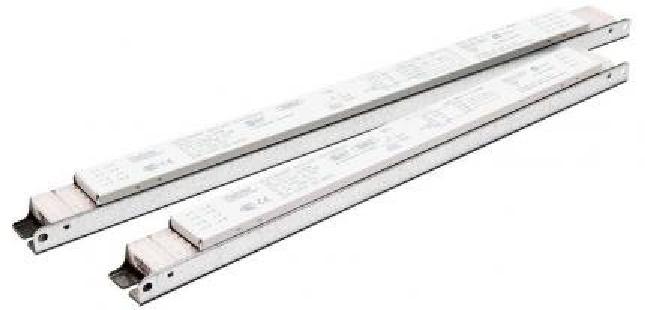

The DALI dimmable electronic ballast EL1X55iDim for T5 fluorescent lamps from Helvar is suitable for luminaire installation. It has a nominal power of 55 watts and a very low standby power (0.3 W). The dimming range is between 1 and 100%.
The FL ECG only has a height of 21 mm and offers standard and sidemount options. In addition, it is very user-friendly thanks to the quick release. To protect the lamp, a warm start is performed. The ballast is controlled by a state-of-the-art microprocessor that ensures energy savings, quality and light comfort. The OCC technology ensures the highest possible energy class EEI = A1BAT.
For individual luminaires or lighting systems
The Helvar EL-iDim DALI ballasts are designed for a wide range of applications - from the smallest intelligent luminaires to major lighting installations in large building complexes. In building management systems, the DALI-FL ECGs can provide information about energy consumption, running time etc: on-line and directly from the luminaire.
In addition, the ballasts are fully compatible with the Helvar iDim sensors and, through this combination, create a high-tech innovation for the lighting market. The out-of-box functionality makes the Helvar system easy to install and use, and maintenance costs are always kept to a minimum. The rated lifetime is 50,000 hours.
Downloads & Documents
Konformitaetserklaerung-Helvar-FL-EVG-EL1X55iDim-220-240V-50-60Hz-4349000_1592170378_3
Declaration-of-Confirmity-Helvar-FL-ECG-EL1X55iDim-220-240V-50-60Hz-4349000_1592170378_4
ENEC-Certificate-Helvar-FL-ECG-EL1X55iDim-220-240V-50-60Hz-4349000_1592170378_5
CE-Zertifikat-Helvar-FL-EVG-EL1X55iDim-220-240V-50-60Hz-4349000_1592170378_7
Datasheet-Helvar-FL-ECG-EL1X55iDim-220-240V-50-60Hz-4349000_1592170378_8
Login
Electrical data
number of channels: | 1 |
---|---|
energy efficiency index: | A1BAT |
rated voltage: | 220-240 V |
lifetime: | 50000 h |
system power: | 55 |
Casing
form type: | linear |
---|---|
max housing temperature (tc-max): | 75 °C |
mounting: | Installation |
environment temperature from: | 10 °C |
environment temperature to: | 50 °C |
Photometric data
dimmable: | yes |
---|---|
dimming range to: | 100 % |
dimming range from: | 1 % |
color: | white |
lamp type: | TC-L |
interface: | DALI |
Logistic data
item category: | electronic ballasts |
---|

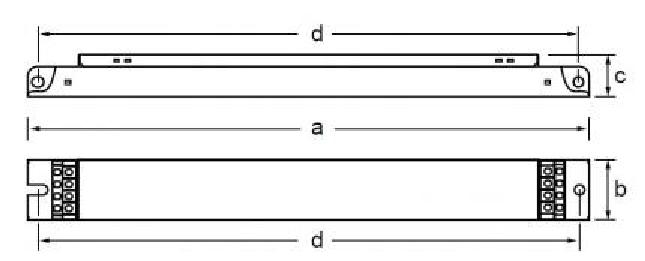

Dimensions & packaging
EAN | 6410040203233 |
---|---|
Length | 360 mm |
Width | 30 mm |
Height | 21 mm |
