Helvar FL-ECG EL1X54iDim 220-240V 50-60Hz - 4340000
Product information "Helvar FL-ECG EL1X54iDim 220-240V 50-60Hz - 4340000"
DALI dimmable FL ECG with 54 W for T5 lamps

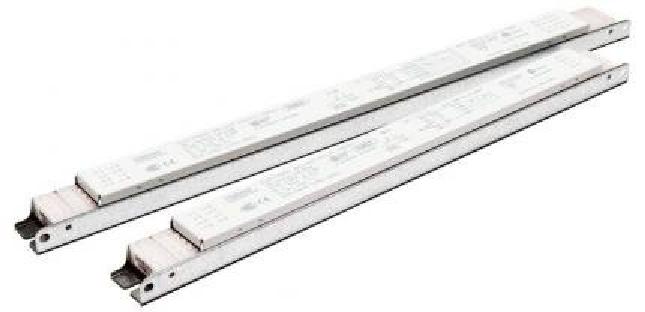

The DALI dimmable electronic ballast EL1X54iDim for T5 fluorescent lamps from Helvar is suitable for luminaire installation. It has a nominal power of 54 watts and a very low standby power (0.3 W). The dimming range is between 1 and 100%.
The FL ECG only has a height of 21 mm and offers standard and sidemount options. In addition, it is very user-friendly thanks to the quick release. To protect the lamp, a warm start is performed. The ballast is controlled by a state-of-the-art microprocessor that ensures energy savings, quality and light comfort. The OCC technology ensures the highest possible energy class EEI = A1BAT.
For individual luminaires or lighting systems
The Helvar EL-iDim DALI ballasts are designed for a wide range of applications - from the smallest intelligent luminaires to major lighting installations in large building complexes. In building management systems, the DALI-FL ECGs can provide information about energy consumption, running time etc: on-line and directly from the luminaire.
In addition, the ballasts are fully compatible with the Helvar iDim sensors and, through this combination, create a high-tech innovation for the lighting market. The out-of-box functionality makes the Helvar system easy to install and use, and maintenance costs are always kept to a minimum. The rated lifetime is 50,000 hours.
Downloads & Documents
ENEC-Zertifikat-Helvar-FL-EVG-EL1X54iDim-220-240V-50-60Hz-4340000_1592161101_2
CE-Certificate-Helvar-FL-ECG-EL1X54iDim-220-240V-50-60Hz-4340000_1592161101_4
Konformitaetserklaerung-Helvar-FL-EVG-EL1X54iDim-220-240V-50-60Hz-4340000_1592161101_5
Datasheet-Helvar-FL-ECG-EL1X54iDim-220-240V-50-60Hz-4340000_1592161101_6
ENEC-Certificate-Helvar-FL-ECG-EL1X54iDim-220-240V-50-60Hz-4340000_1592161091_7
Login
Electrical data
| number of channels: | 1 |
|---|---|
| energy efficiency index: | A1BAT |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| mounting: | Installation |
| environment temperature from: | 10 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimmable: | yes |
|---|---|
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| lamp type: | T5 |
| interface: | DALI |
Logistic data
| item category: | electronic ballasts |
|---|
Dimensions & packaging
| EAN | 6410040203202 |
|---|---|
| Length | 360 mm |
| Width | 30 mm |
| Height | 21 mm |
