Helvar FL-ECG EL1/2x9-13TCs 50-60Hz - 4216001

Helvar Oy AB

Helvar FL-ECG EL1/2x9-13TCs 50-60Hz - 4216001

Product number: 4216001

Immediately available

€28.24


Content: 1 Stück

Prices incl. VAT plus shipping costs net €23.73

Product information "Helvar FL-ECG EL1/2x9-13TCs 50-60Hz - 4216001"

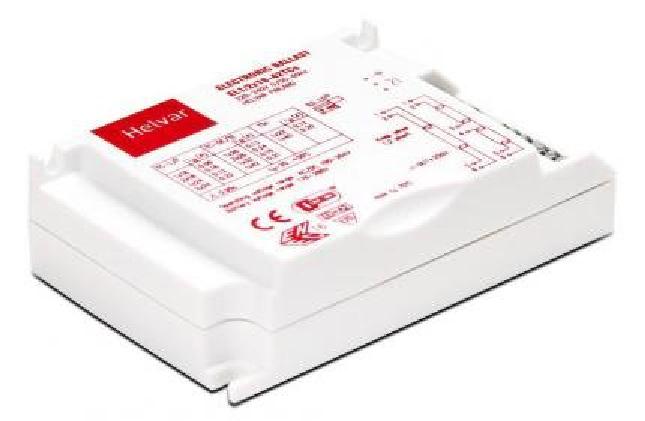

Helvar FL-ECG EL1/2x9-13TCs 50-60Hz

The 1/2-flame electronic ballast EL1/2x9-13TCs for T5 and TC-TEL/DEL fluorescent lamps from Helvar is suitable for luminaire installation. It has a maximum rated power of 28 watts. The ballast features an excellent thermal design that delivers the highest energy savings and highest reliability - thus minimizing the impact on the environment. The FL ECG has energy efficiency class A2 BAT and has a long lifetime of 50,000 hours.

Helvar uses only high quality components and materials with quality design and associated tests under the toughest conditions when manufacturing its ballasts. No wonder failure rates are among the lowest in the market, exceeding industry expectations tenfold. Helvar's manufacturing processes are also ISO 9001 and ISO 14001 certified

Cool operation at full thermal stress

An outstanding feature of this EL-TCs range is its "dual technology" which cost-effectively combines single and twin-lamp versions in one ballast. In addition, the EL-TCs are surprisingly small, yet they are still capable of running cool even under full thermal stress, thanks to its OCC technology and the clever thermal design of its PCB.

Electrical data
number of channels: 2
energy efficiency index: A2 BAT
rated voltage: 220-240 V
lifetime: 50000 h
system power: 10
Casing
ballproof: no
form type: rectangular
max housing temperature (tc-max): 75 °C
mounting: Installation
environment temperature from: -20 °C
environment temperature to: 50 °C
Photometric data
color: white
lamp type: TC-L
Logistic data
item category: electronic ballasts

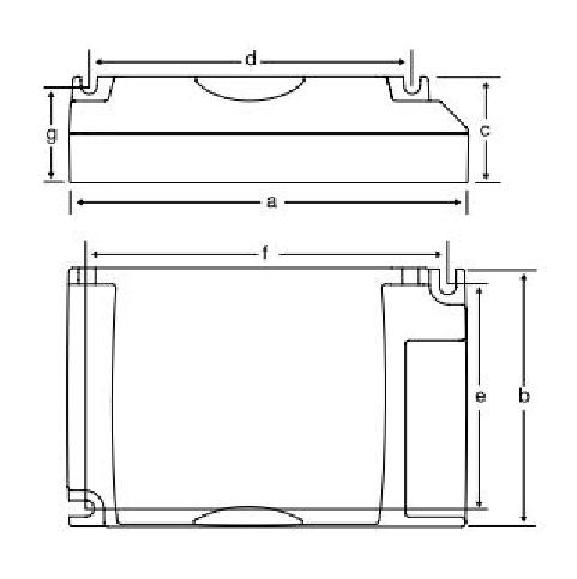

Dimensions & packaging
EAN 6418488421608
Length 104 mm
Width 67 mm
Height 28 mm

Helvar Oy Ab
Keilaranta 5
02150 Espoo Finnland
https://helvar.com/de/
