Harvard LED-Treiber CL40-1000F-240-C
No longer available
For an alternative please contact us!
Product information "Harvard LED-Treiber CL40-1000F-240-C"
The DC-capable electronic ballast for LED-modules CL40-1000F-240-C from the CoolLED series by Harvard Technology provide a high performance solution for powering high-brightness LEDs from a mains supply. It is suitable for luminaire installation as well as for independent mounting.
The power factor corrected, class II driver has fully isolated, SELV output delivering up to 40W of power. Additionally, it features an auxiliary output for powering fans.
The LED ECG’s housing is IP20 protected.
Downloads & Documents
Electrical data
| number of channels: | 1 |
|---|---|
| rated voltage: | 220-240 V |
Casing
| ballproof: | no |
|---|---|
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| mounting: | surface mounting |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Logistic data
| item category: | LED drivers |
|---|

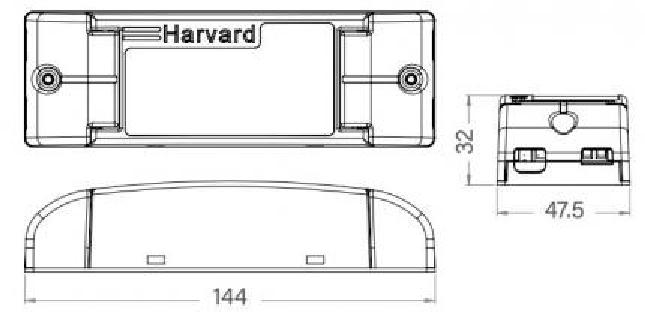

Dimensions & packaging
| Length | 144 mm |
|---|---|
| Width | 48 mm |
| Height | 32 mm |
| Weight | 150 g |
