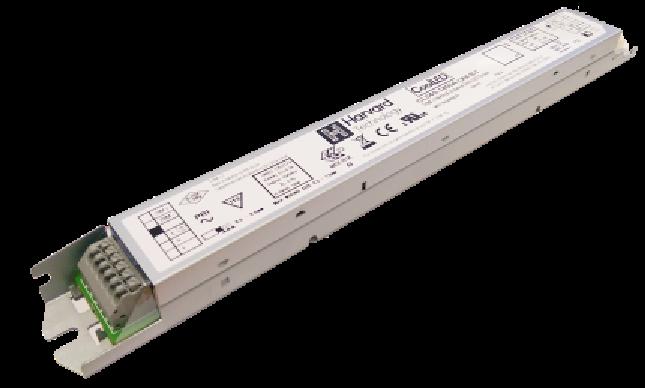

Harvard LED-Driver CLS40-350S2-UNI-B-NI CLS40-350S2-UNI-B-NI
Harvard Engineering Ltd.
Harvard LED-Driver CLS40-350S2-UNI-B-NI CLS40-350S2-UNI-B-NI
Product number:
CLS40-350S2-UNI-B-NI
Immediately available
€19.93
(40% saved)
€11.90
Content:
1 Stück
Prices incl. VAT plus shipping costs net €10.00
Product information "Harvard LED-Driver CLS40-350S2-UNI-B-NI CLS40-350S2-UNI-B-NI "
The driver supports up to 44W by an output of 200mA, 250mA, 300mA, 325mA & 350mA.CoolLED drivers provide a high performance solutionfor powering high-brightness LEDs from a mains supply.This driver is an non-dimmable version.The power factor corrected, class I driver is non isolated,delivering up to 44W of power.All CoolLED Drivers have a high efficiency design, whichensures cool operation and long life. The compactenclosure is available in integral (B) versions.CoolLED Drivers are open and short-circuit protectedand have a over temperature fold back.
Downloads & Documents
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 120-277 V |
| terminal type: | Push-in CAGE CLAMP® |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimmable: | no |
|---|---|
| color: | white |
Logistic data
| item category: | LED drivers |
|---|

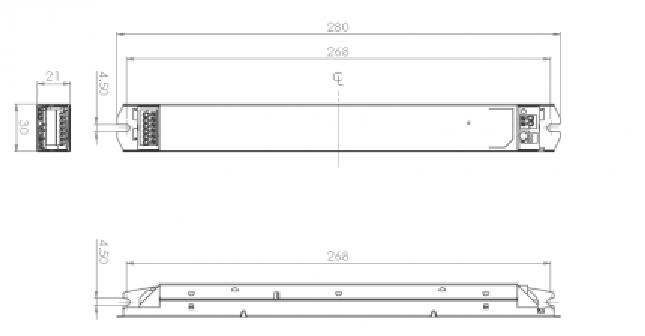

Dimensions & packaging
| Length | 280 mm |
|---|---|
| Width | 30 mm |
| Height | 21 mm |
| Weight | 240 g |
