Hadler LED-Driver Luxtronic ECG 350 / 500 / 700 mA 26 W 220-240V DALI - 3 C 126 05 6

Product number: 3 C 126 05 6
Hadler GmbH

Hadler LED-Driver Luxtronic ECG 350 / 500 / 700 mA 26 W 220-240V DALI - 3 C 126 05 6

Product number: 3 C 126 05 6

Immediately available (40 articles directly deliverable)

That's why you should buy this product now
  • Excellent reviews on Trustpilot
  • 4.8 out of 5 ⭐⭐⭐⭐⭐ on Google
  • Short delivery times for stock items
  • Very good price-performance ratio
  • Highest possible quality standards
  • Products from renowned manufacturers

€50.23


Content: 1 Stück

Product information "Hadler LED-Driver Luxtronic ECG 350 / 500 / 700 mA 26 W 220-240V DALI - 3 C 126 05 6"

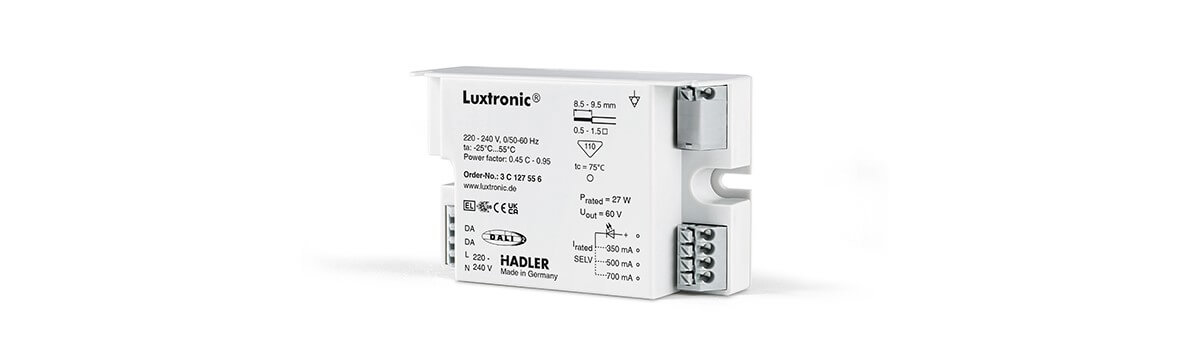

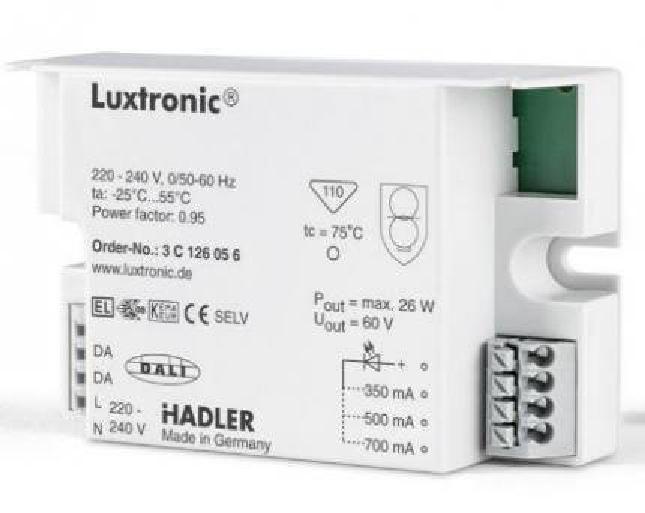

The Hadler Luxtronic ECG 350/500/700 mA 26W 220-240V DALI is a small, compact, constant current LED driver with DALI interface and IP20 protection for luminaire installation. The rated power is 26 watts. The output current is adjustable between 350 and 700 mA.

The ultra-compact dimensions of 87 x 54 x 27 mm make the LED ECG ideal for highly integrated luminaires. Thanks to its wide temperature range of -15 ° C - +55 ° C, it is also suitable for narrow construction spaces. The double-sided PCB ensures extra high mechanical strength.

The Hadler Luxtronic LED driver is also suitable for use in emergency lighting application and PIR sensor applications. Due to its long service life of 100,000 h you save on replacement costs.

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


Electrical data
number of channels: 1
operating mode: constant current
rated voltage: 220-240 V
lifetime: 100000 h
Casing
form type: rectangular
max housing temperature (tc-max): 75 °C
protection type: IP20
mounting: Installation
environment temperature from: -25 °C
environment temperature to: 55 °C
Photometric data
color: white
interface: DALI
Logistic data
item category: LED drivers

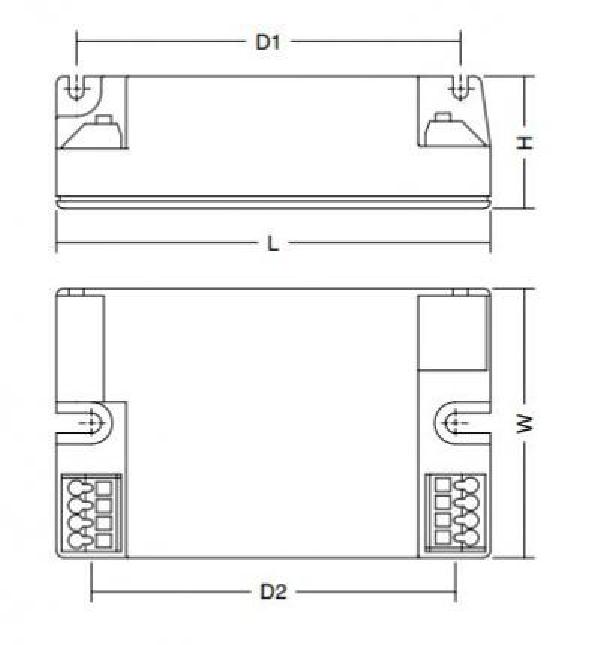

Dimensions & packaging
Length 87 mm
Width 54 mm
Height 27 mm
Weight 80 g
