FRISCH-Licht HCL LED panel insert luminaire 625 DALI UGR19 IP44 - ELP41 2040MP.HCL

FRISCH-Licht

FRISCH-Licht HCL LED panel insert luminaire 625 DALI UGR19 IP44 - ELP41 2040MP.HCL

Product number: ELP41 2040MP.HCL

Shipping in 7 day(s)

Accessories

FRISCH-Licht LED driver D8 for LED-Panel ELP41 2040MP.HCL - TR 2040.HCL.KL
€72.16 inkl. MwSt.

Shipping in 14 day(s)

€100.95


Content: 1 Stück

Prices incl. VAT plus shipping costs net €84.83

Accessories

FRISCH-Licht LED driver D8 for LED-Panel ELP41 2040MP.HCL - TR 2040.HCL.KL
€72.16 inkl. MwSt.

Shipping in 14 day(s)

Product information "FRISCH-Licht HCL LED panel insert luminaire 625 DALI UGR19 IP44 - ELP41 2040MP.HCL"

High quality LED panel with HCL.

The high-quality LED insert panel of the FRISCH-Licht brand is particularly flat with a height of 14 mm, has a white, powder-coated aluminum frame. Thanks to the microprismatic cover UGR < 19, the HCL panel is ideal for lighting the computer workstation.

Adapts to you. Human Centric Lighting.


Lighting applications with Human Centric Lighting focus on the well-being of people. HCL supports the natural human bio-rhythm and simulates the sun's course of the day through dynamic color adjustments.

The FRISCH-Licht HCL insert panel luminaire 625 DALI UGR19 IP44 is equipped with dynamically adjustable light colors (HCL) - variable from 2,700 to 6,500 Kelvin. The LED efficiency convinces with 116 lumens per watt. The connected load max. 36 W or 4200 lumens. With approx. 100,000 hours, the LED service life L80/B10 (Tq 25 °C) is above average. On the room side, the LED panel is optimally protected with protection class IP 44.

Perfect light in every application.


The HCL recessed panel luminaire from FRISCH-Licht provides pleasant and dynamically adjustable light in a wide variety of applications:

  • Educational institutions
  • Banks/offices
  • Hotels
  • Hospitals/nursing homes

The matching LED driver or touch panel and other accessories can be ordered separately.
Electrical data
operating frequency: 50-60 Hz
rated voltage: 220-240 V
conformity: CE, ENEC
lifetime: 100000 h
system power: 36
Casing
ballproof: no
fire protection: no
form type: square
protection type: IP44
material: aluminum
mounting: Installation
impact resist: IK05
protection class: II
environment temperature from: -20 °C
environment temperature to: 35 °C

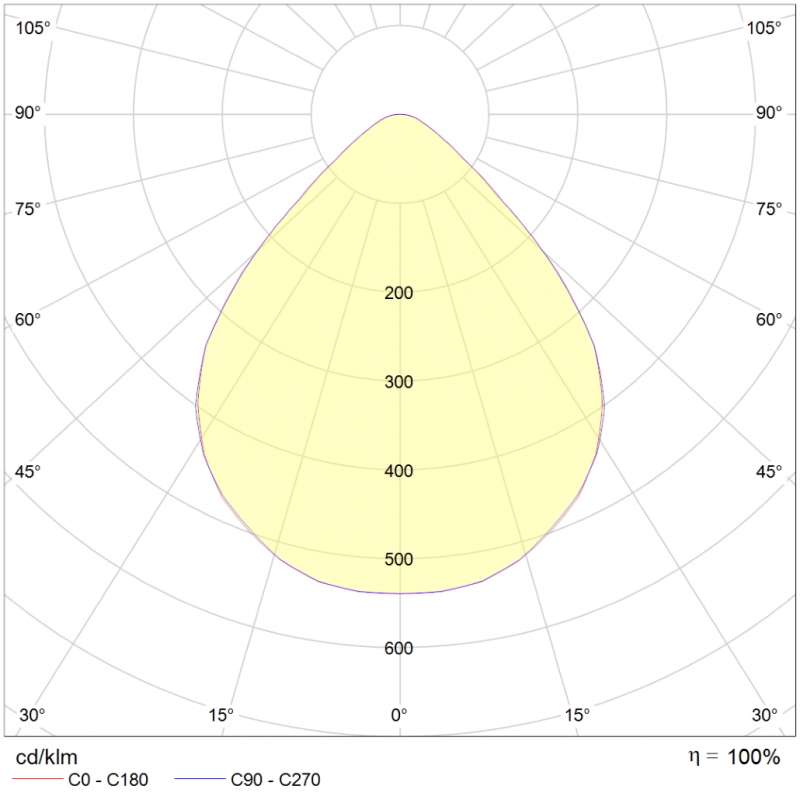

Photometric data
multi-color: yes
multi-lumen: yes
radiation angle: 90 °
sensor: no
dimmable: yes
color: white
color temperature [Kelvin]: 2700-6500
color rendering index [CRI]: >80
lamp efficiency: 117 lm/W
inclusive lamp: yes
interface: DALI
solar panel: no
lum flux: 4200 lm
Logistic data
item category: LED panel luminaires
country of origin: Germany

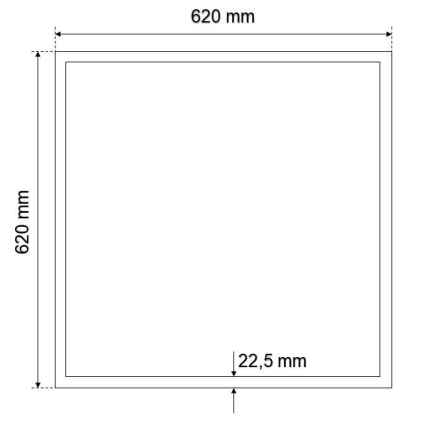

Dimensions & packaging
Length 620 mm
Width 620 mm
Height 14 mm
Weight 345 g
