€55.96
Content:
1 Stück
Prices incl. VAT plus shipping costs net €47.03

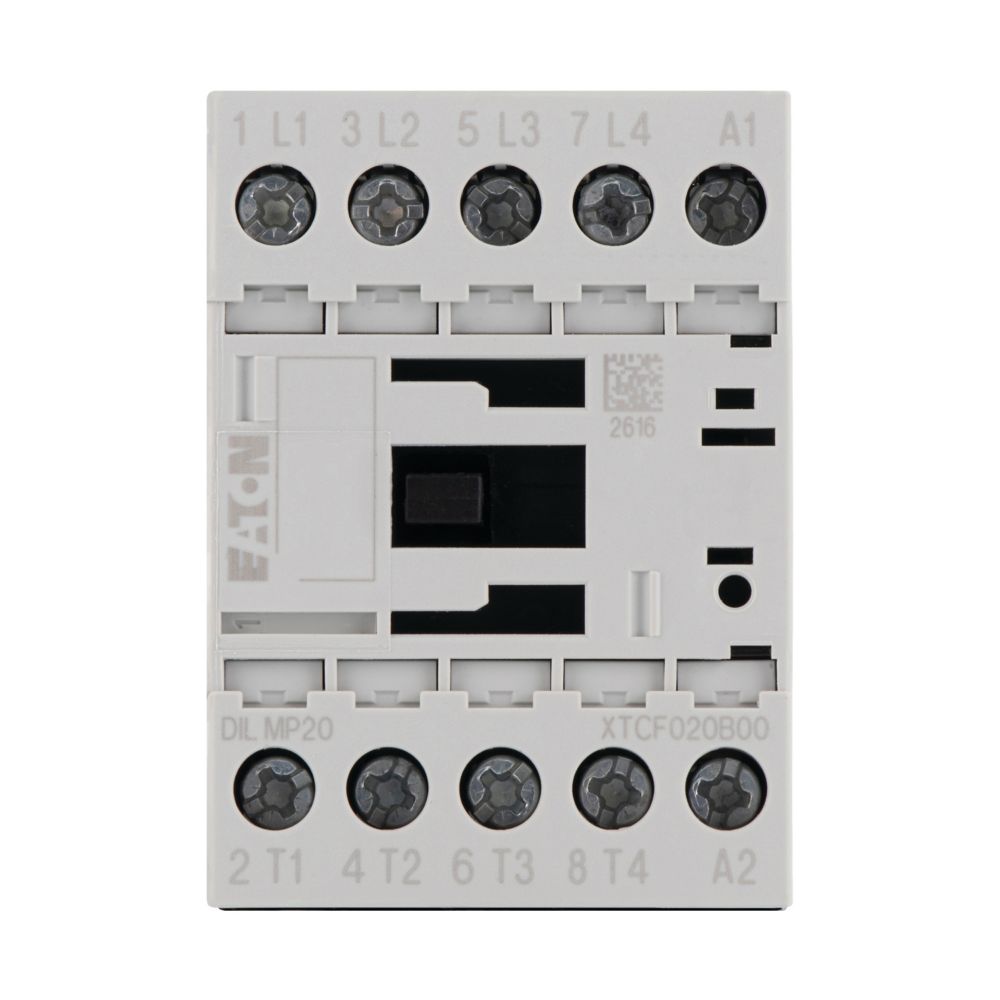

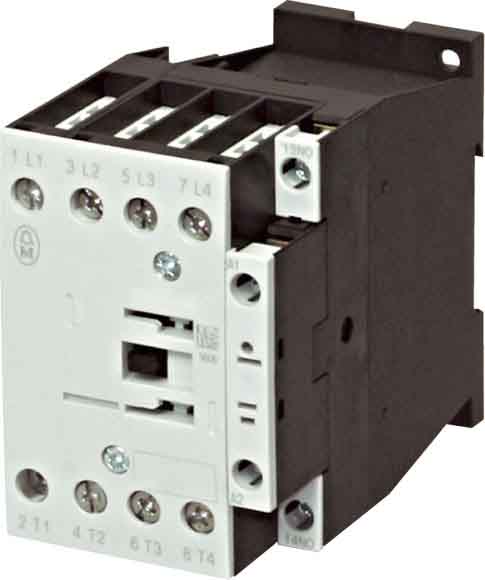

Product information "Eaton Schütz 4p. 20A/AC-1,AC DILMP20(230V50HZ) - 276970"
Leistungsschütz, Applikation: Leistungsschütz für 4-polige Verbraucher, Leistungsschütze bis 200 A, 4-polig, Gebrauchskategorie: AC-1: Nicht induktive oder schwach induktive Last, Widerstandsöfen, AC-3: Käfigläufermotoren: Anlassen, Ausschalten während des Laufes, Anschlusstechnik: Schraubklemmen, Pole: 4-polig, 380 V 400 V: Ie= 12 A, konventioneller thermischer Strom, 3-polig, 50 - 60 Hz offen bei 40 °C: Ith = Ie= 22 A, gekapselt: Ith= 18 A, konventioneller thermischer Strom 1-polig offen: Ith= 60 A, gekapselt: Ith= 54 A, 220 V 230 V: P= 3.5 kW, 380 V 400 V: P= 5.5 kW, 660 V 690 V: P= 6.5 kW, Hinweise: Schaltglieder nach EN 50012., Stromart AC/DC: Wechselstrombetätigung
Technische Daten
Bemessungssteuerspeisespannung Us bei AC 50 Hz | 230 V |
Bemessungssteuerspeisespannung Us bei AC 60 Hz | 240 V |
Bemessungssteuerspeisespannung Us bei DC | 0 V |
Spannungsart zur Betätigung | AC |
Bemessungsbetriebsstrom Ie bei AC-1, 400 V | 22 A |
Bemessungsbetriebsstrom Ie bei AC-3, 400 V | 12 A |
Bemessungsbetriebsleistung bei AC-3, 400 V | 5,5 kW |
Bemessungsbetriebsstrom Ie bei AC-4, 400 V | 10 A |
Bemessungsbetriebsleistung bei AC-4, 400 V | 4,5 kW |
Bemessungsbetriebsleistung NEMA | 0 kW |
Geeignet für Reiheneinbau | nein |
Anschlussart Hauptstromkreis | Schraubanschluss |
Anzahl der Schließer als Hauptkontakte | 4 |
Verkaufseinheit | 1 STK |
