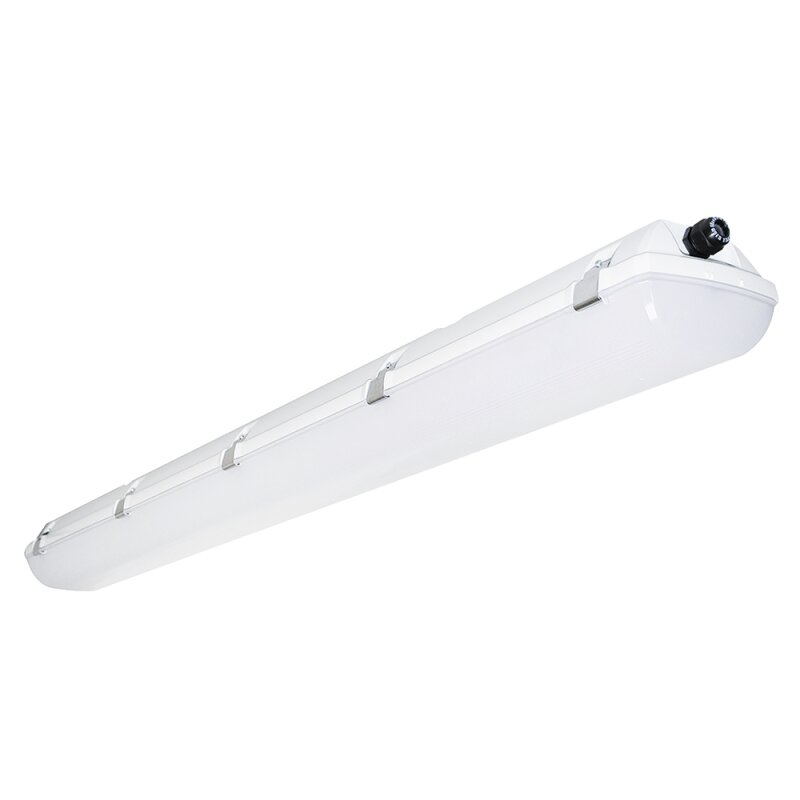

DOTLUX LED EX Luminaire MISTRALex EX Protected IP66 1272mm 44W 4000K IK10 Zone 2 & 22 - 4554-140140
Dotlux
DOTLUX LED EX Luminaire MISTRALex EX Protected IP66 1272mm 44W 4000K IK10 Zone 2 & 22 - 4554-140140
Product number:
4554-140140
Immediately available
€248.14
Prices incl. VAT plus shipping costs net €208.52
Product information "DOTLUX LED EX Luminaire MISTRALex EX Protected IP66 1272mm 44W 4000K IK10 Zone 2 & 22 - 4554-140140"
- UV-stable, shatterproof IK10/IP66 polycarbonate housing with frosted cover ensures shadow-free light distribution
- Stainless steel catches with integrated anti-theft device
- Can be wired through with an internal 3-pole luminaire connection terminal
- Now supplied with two ATEX cable glands (incl. one dummy plug)
- Silicone-free, also for paint shops
- Suitable for central battery
- ATEX certified
- Explosion group:
- II 3 G Ex ec IIC T6 Gc
- II 3 D Ex tc IIIC T85°C Dc IP66
- The D mark of this luminaire with limited surface temperature is a basic requirement for luminaires in flammable locations (DIN EN 60598-2-24, VDE 0711-2-24)
- Sustainable product design thanks to easily replaceable components
Downloads & Documents
Electrical data
| lifetime: | 50000 h |
|---|---|
| system power: | 44 |
Casing
| ex zone: | 2/22 |
|---|---|
| material: | polycarbonate |
| impact resist: | IK10 |
| protection class: | I |
| environment temperature from: | -25 °C |
| environment temperature to: | 55 °C |
Photometric data
| radiation angle: | 140 ° |
|---|---|
| dimmable: | no |
| color temperature [Kelvin]: | 4000 |
| lamp efficiency: | 156 lm/W |
| inclusive lamp: | yes |
| lum flux: | 6700 lm |
Dimensions & packaging
| EAN | 4255678602148 |
|---|---|
| Length | 1272 mm |
| Width | 1272 mm |
| Height | 111 mm |
| Weight | 3.4 g |
