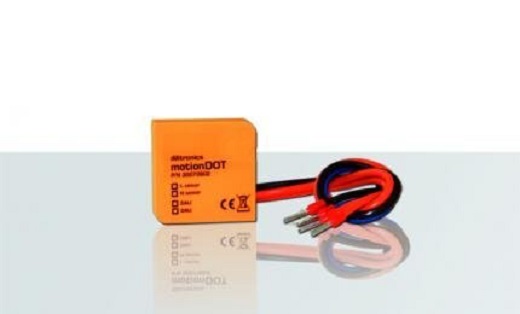

Product information "dilitronics motionDOT - 30070802"

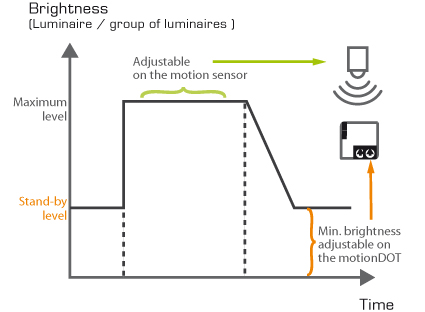

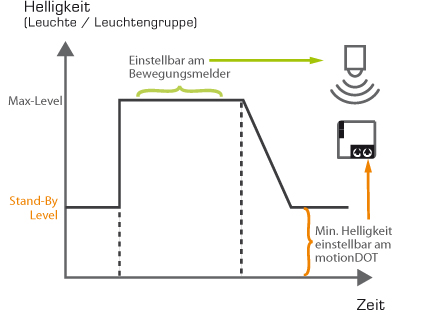

By motionDOT the lighting control on demand in the DALI bus can be implemented extremely cost effective.Due to the small and compact design, the motionDOT module is easy to install in flush or surface doses. Choosing the command receiver on motionDOT done easily via rotary switch. At a second rotary switch, the brightness level is set to the lamp or the lighting group to be dimmed when the motion detector no activity registered. As a result, for example, a basic safety lighting can be realized.The motionDOT is multi-controller capability, meaning that several modules in the DALI bus can be used.
The power to the module is via the DALI line. The motion will continue fed directly from the 230 V mains.
The power to the module is via the DALI line. The motion will continue fed directly from the 230 V mains.
Downloads & Documents
Login
Electrical data
| operating frequency: | 0/50-60 Hz |
|---|---|
| rated voltage: | 220-240 V |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | square |
| protection type: | IP65 |
| mounting: | ceiling mounting |
| environment temperature from: | -20 °C |
| environment temperature to: | 60 °C |
Photometric data
| dimmable: | yes |
|---|---|
| color: | yellow |
| interface: | DALI |
| sensor type: | no |
Logistic data
| item category: | light management |
|---|
Dimensions & packaging
| Length | 31 mm |
|---|---|
| Width | 31 mm |
| Height | 10 mm |
| Weight | 20 g |
