Description

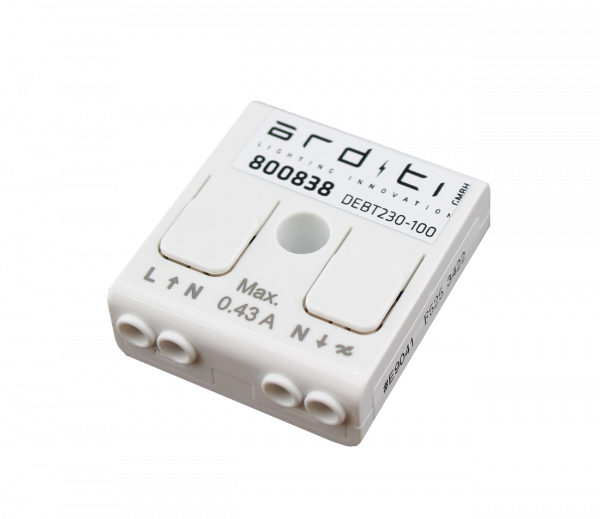

• Phase-cut dimmer for convenient operation with smart devices
• Configurable and versatile via the CASAMBI app
• A gateway is not required, but setup is possible.
• For operating dimmable

1. Incandescent lamps, mains halogen lamps
2. LED lamps (retrofit LED)
3. Compact fluorescent lamps (CFL lamps)
4. Network LED modules
5. Control units for LEDs and 12 Vdc halogen lamps

• Connect only one type of load/lamp type!
• Not suitable for inductive loads such as wound transformers or electric motors!
• If flickering occurs at low dimming levels: Increase the minimum by changing the profile.
• *Mains current: max. 0.43 A (incl. reactive current), inrush current max. 10 A (100 ms)
• Reference value for creepage distance formation: < 600. Pollution degree: 1. Non-replaceable fuse F2A / 250 Vac.
• Integrated antenna (drawing: grey area, do not cover with metal housing)
• In a flush-mounted housing or in a freestanding housing with terminal cover (protection class: 2); for fixed installation
