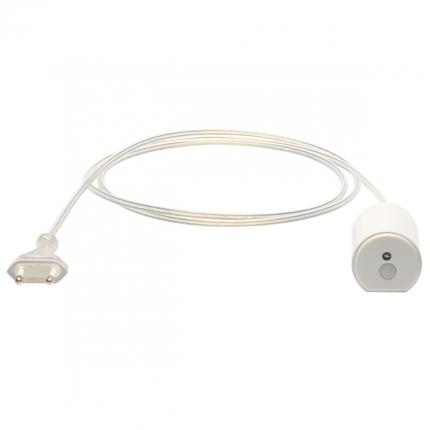

Aimotion 1020W Plug&Plas flex sensor - 1022W
Product information "Aimotion 1020W Plug&Plas flex sensor - 1022W"
Casambi ready motion detector and brightness sensor for flexible placement
Controls your Casambi network without wiring.
FEATURES
- Flexible placement e.g. B. on furniture, shelves
- Assign the desired scenes to the sensor using the app
- Lights automatically switch on and off after motion detection
- Reduce energy consumption - integrated brightness sensor - light intensity as required
- Absence setting - change the dimming level in the absence of day and night settings
- Individual light at certain times when motion is detected
- The motion detector can also be activated / deactivated using a switch or timer
Electrical data
| operating frequency: | 50-60 Hz, 50/60 Hz |
|---|---|
| through wiring: | no |
| rated voltage: | 220-240 V |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| max housing temperature (tc-max): | 65 °C |
| protection type: | IP44 |
| mounting: | surface mounting |
| protection class: | II |
| environment temperature from: | -25 °C |
| environment temperature to: | 65 °C |
Photometric data
| sensor: | yes |
|---|---|
| motion detection: | yes |
| color: | white |
| inclusive lamp: | no |
| detection range: | 6 m |
| sensor type: | passive infrared |
Logistic data
| item category: | sensors |
|---|---|
| country of origin: | Germany |
Dimensions & packaging
| EAN | 4260552070265 |
|---|---|
| Length | 60 mm |
| Width | 40 mm |
| Height | 36 mm |
| Weight | 150 g |
AIMOTION GmbH
Offakamp 9d
22529 Hamburg
info@casambi-aimotion.de
+49 (0) 40 57257993
https://casambi-aimotion.de/de/
