Gira Sockets

Sockets from Gira are among the most widely installed Schuko sockets in the German electrical installation market – compliant with DIN VDE, rated 16 A / 250 V~, Type F, and available in coordinated design programmes. At WATT24 you'll find the complete Gira range: flush-mounted sockets from the Gira System 55, IP44-rated versions for damp locations, and combination inserts with USB charging – all available from stock.

Read more

Filter

Comprehensive advice & support
over 10,000 articles in the shop

Shipping in 24 hours
thousands of satisfied customers

Testimonial Bild

KATHRIN BRANDT

Employee Purchasing from Troisdorf

Great advice and friendly service. I was helped immediately and competently with any questions. Gladly again.

Testimonial Bild

OMAR NASER

Office Manager from Frankfurt a.M.

Goods are well packaged and arrive safely, which is important to me. My mail was answered immediately.

Testimonial Bild

RAINER SEIDEL

Master carpenter from Wiesbaden

Had to replace a lamp, but the same was no longer available. Great advice, found a suitable replacement and delivered it quickly.

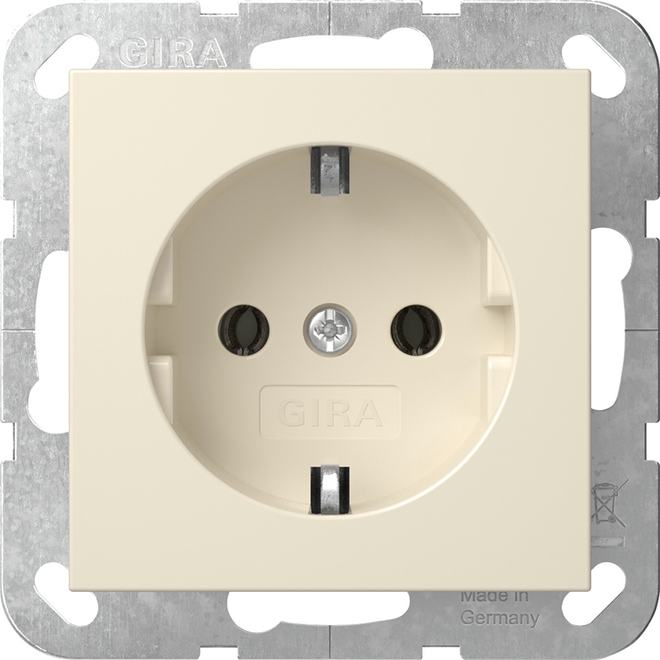

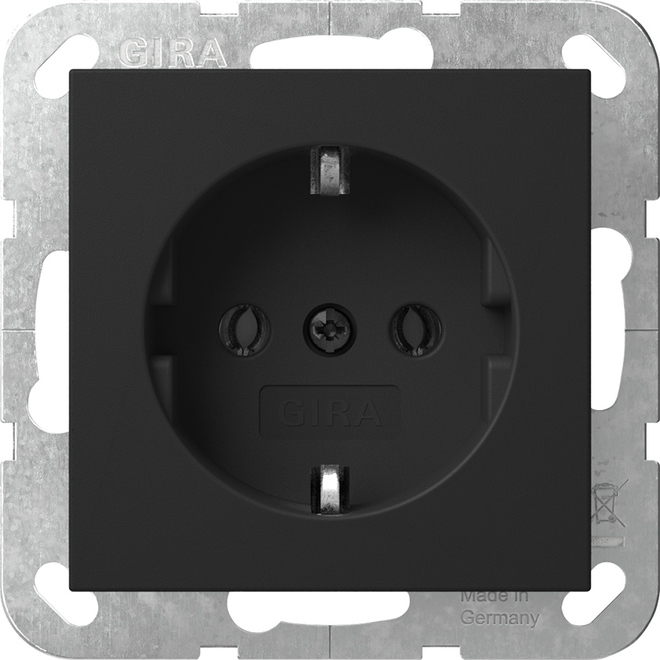

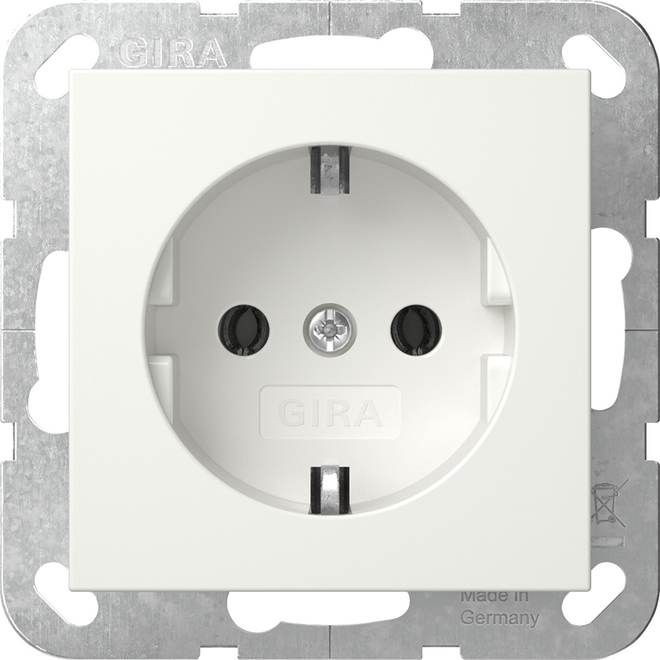

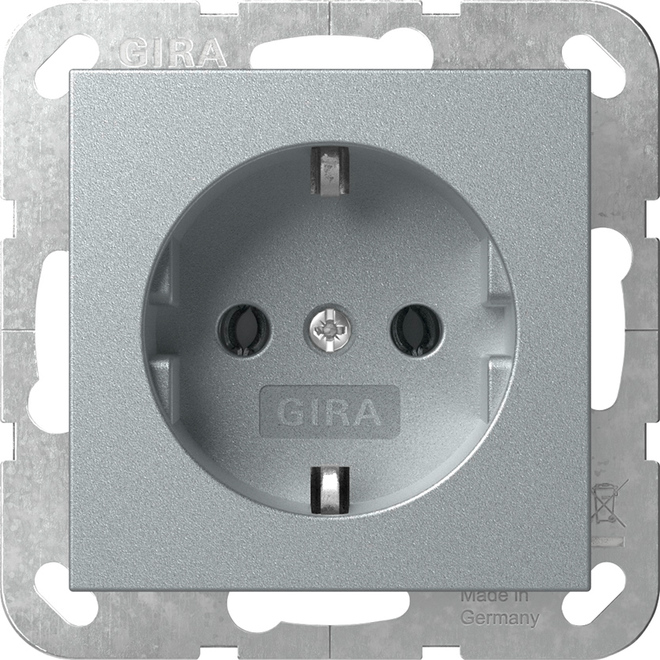

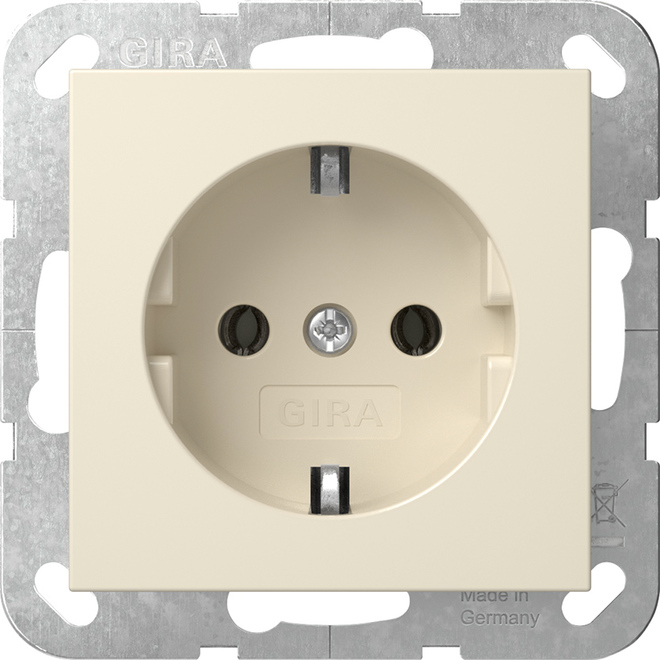

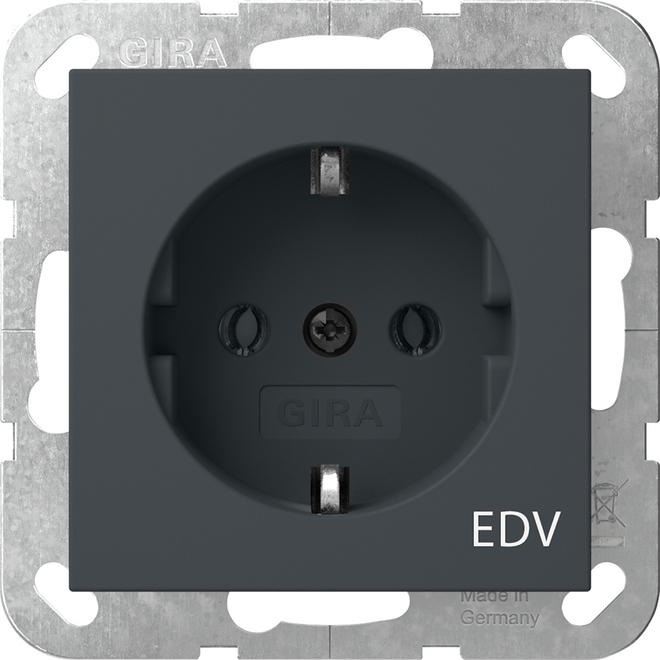

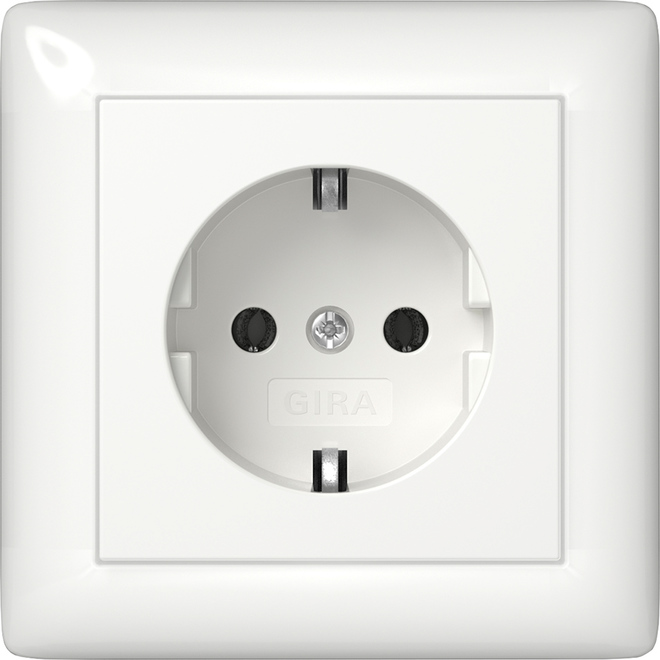

Gira System 55 – the standard programme for flush-mounted installation

The Gira System 55 is the manufacturer's most widely used design programme and forms the basis for the majority of sockets in the WATT24 range. The Schuko sockets (Type F, 16 A, 250 V~) are supplied as inserts without a cover frame and can be combined with all standard System 55 frames – single or multi-gang.

For installation, versions with and without fixing claws are available. Sockets without claws (o.Kr.) are particularly suited to flush-mounted boxes with limited installation depth. All variants comply with DIN VDE 0620 and are approved for flush-mounted installation in Germany.

  Gira System 55 – Colours available at WATT24

  Pure white silk matt · Pure white gloss · Cream white · Anthracite · Black matt · Aluminium · Stainless steel

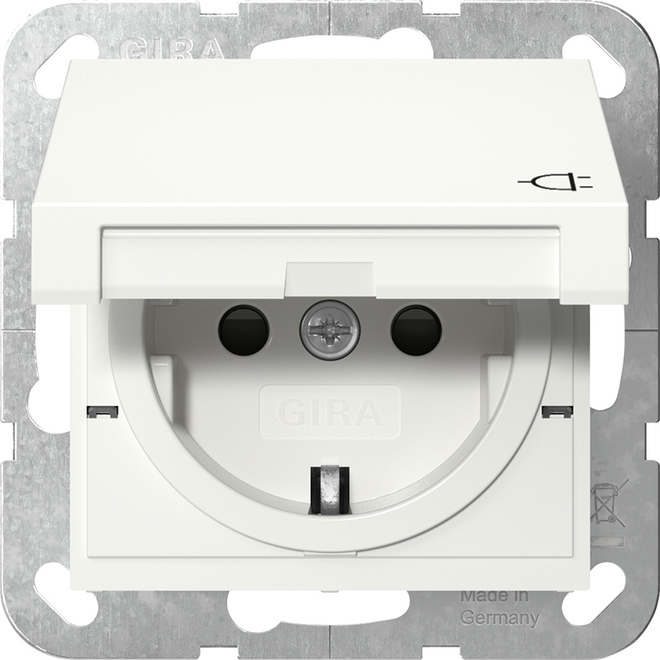

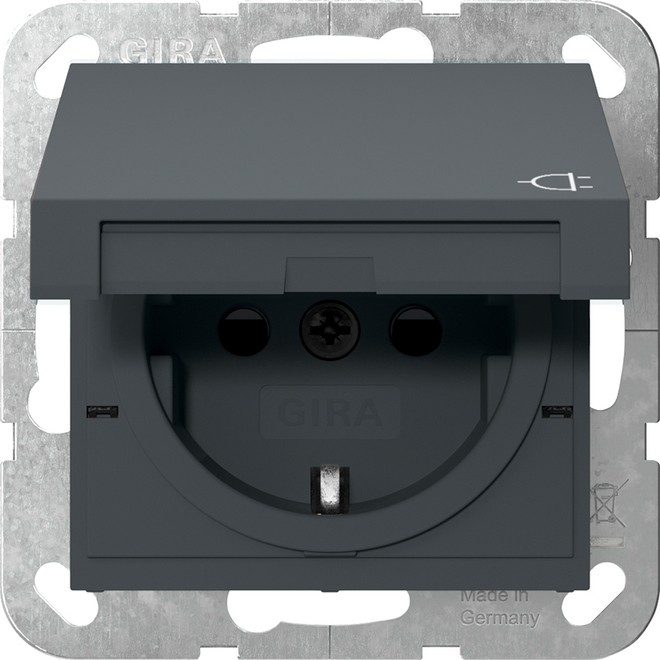

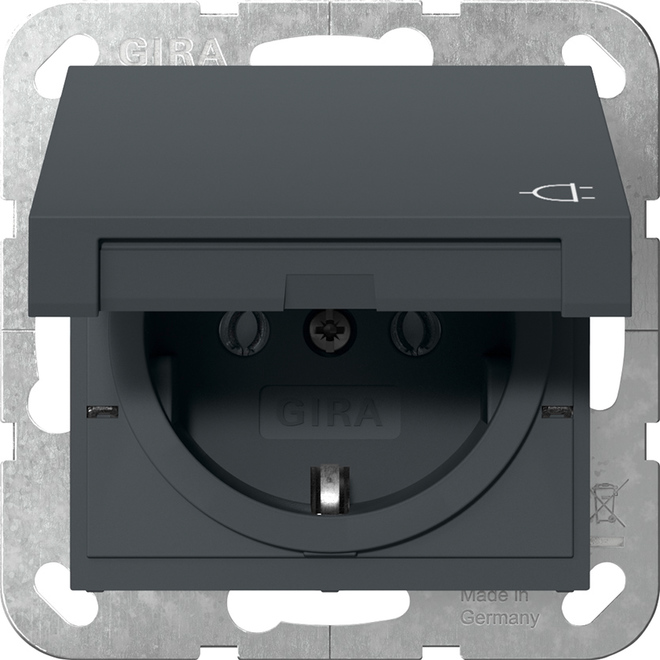

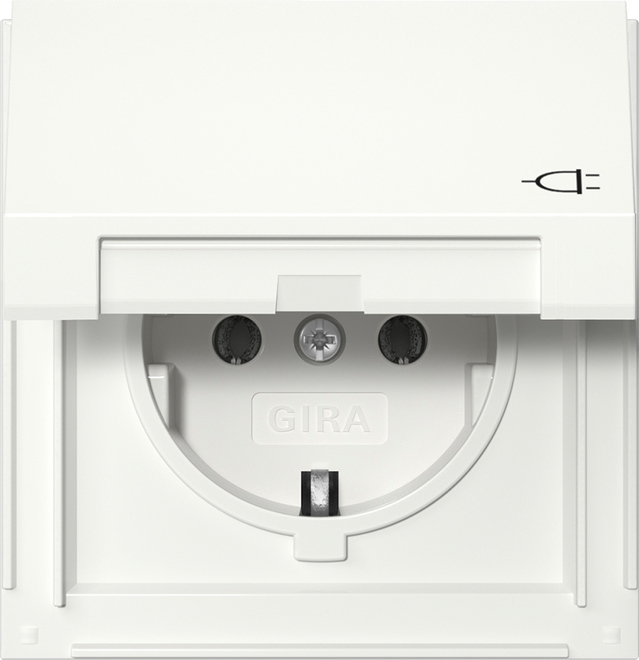

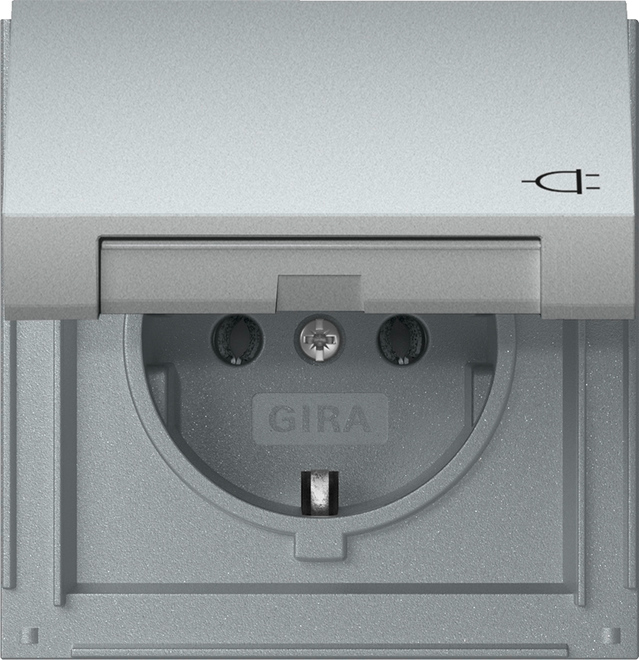

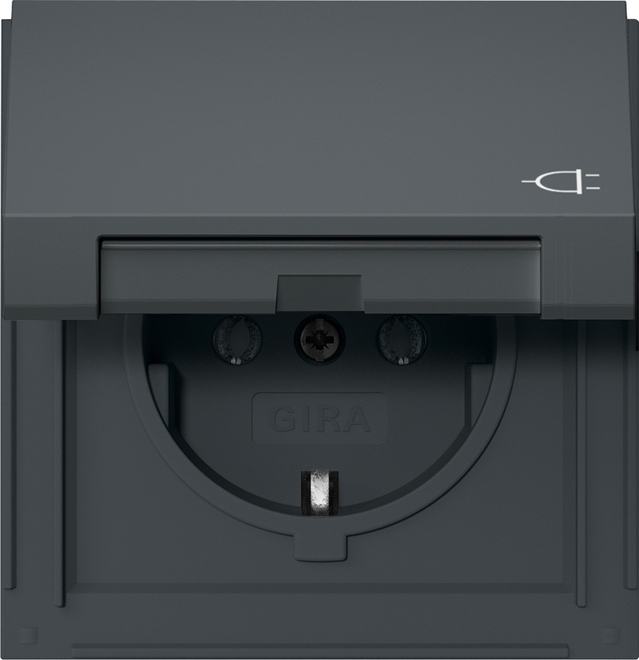

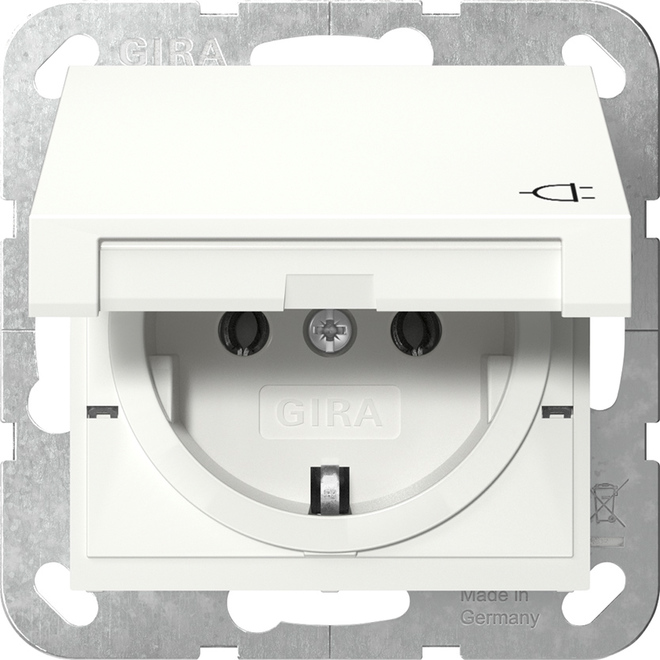

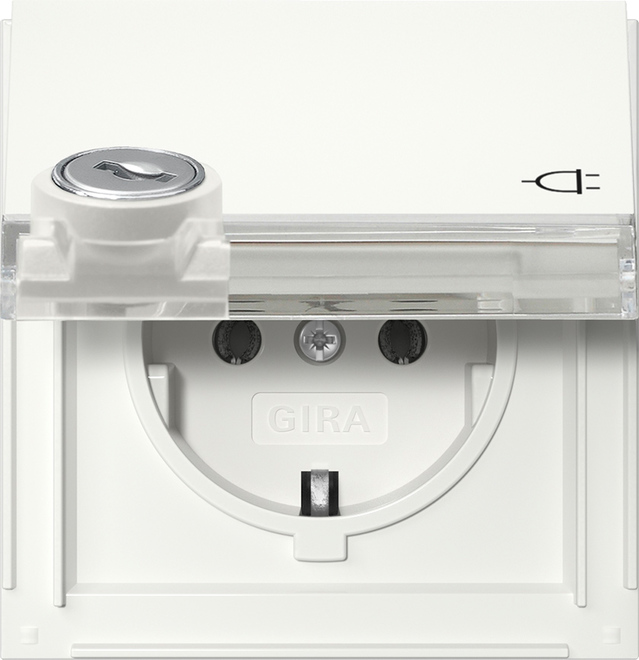

Gira TX44 – Schuko sockets with hinged lid

The Gira TX44 range adds sockets with an integrated hinged lid to the portfolio. This version provides mechanical contact protection and is particularly suited to areas where sockets are used infrequently but need to be reliable – for example in storage areas, workshops or plant rooms. TX_44 sockets are available in pure white, anthracite and aluminium and can also be fitted in System 55 frames.

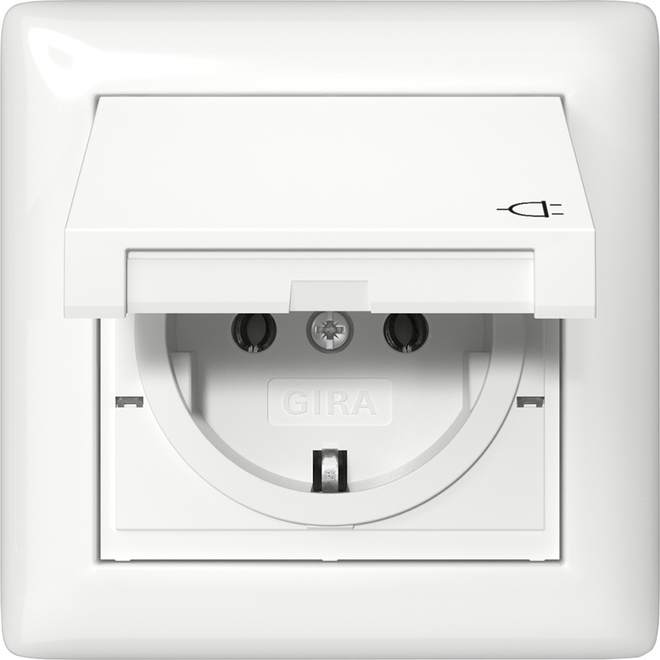

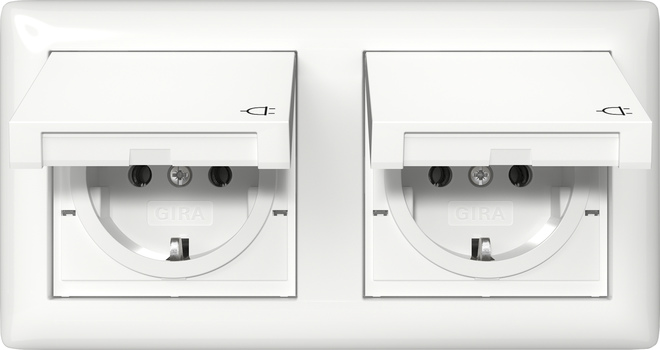

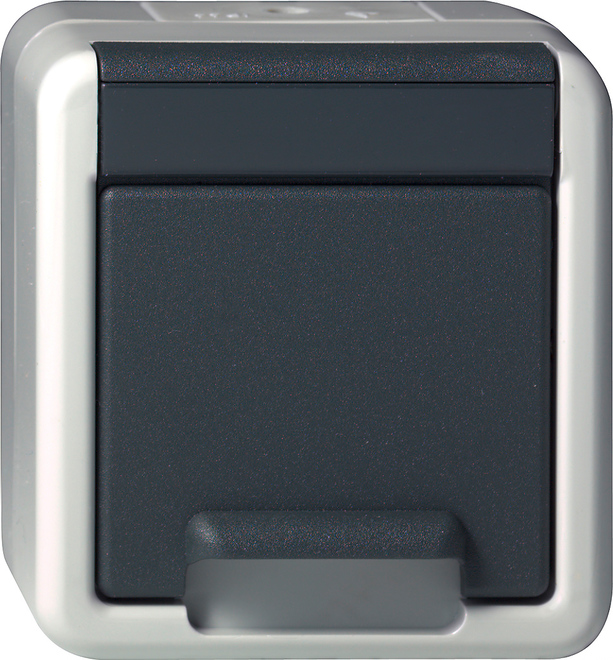

Gira sockets IP44 – for damp locations and outdoor use

For installation in damp locations or protected outdoor areas, Gira offers Schuko sockets with protection rating IP44. They come as a complete system with sealing set and 1- or 2-gang frame and are splash-proof – suitable for bathrooms, exterior walls or wet commercial areas. The integrated hinged lid reliably protects the contacts against moisture even when not in use.

Version	Protection rating	Feature	Typical application
System 55 Standard	IP20	with / without claws	Flush-mounted, indoor
TX_44 with hinged lid	IP20	mechanical contact protection	Plant room, workshop
KD + Set IP44	IP44	sealing set, 1-gang / 2-gang frame	Damp location, outdoor
Socket + USB	IP20	Type A + Type C, shutter	Office, meeting rooms

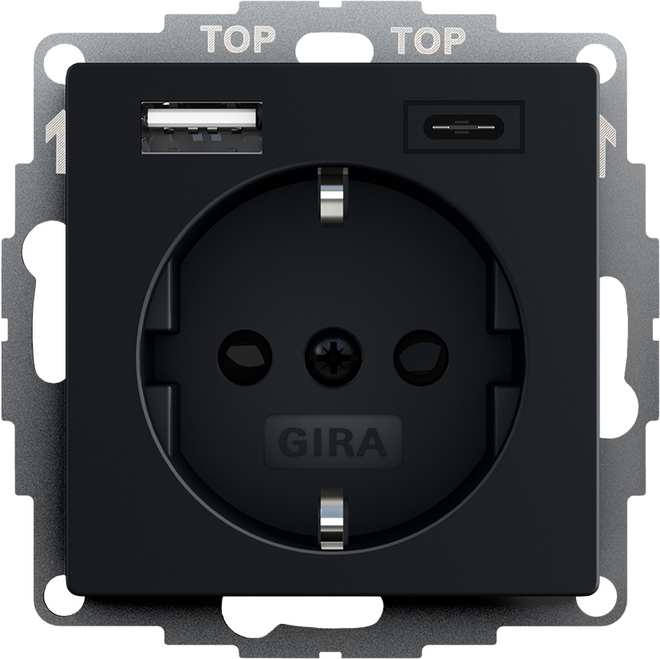

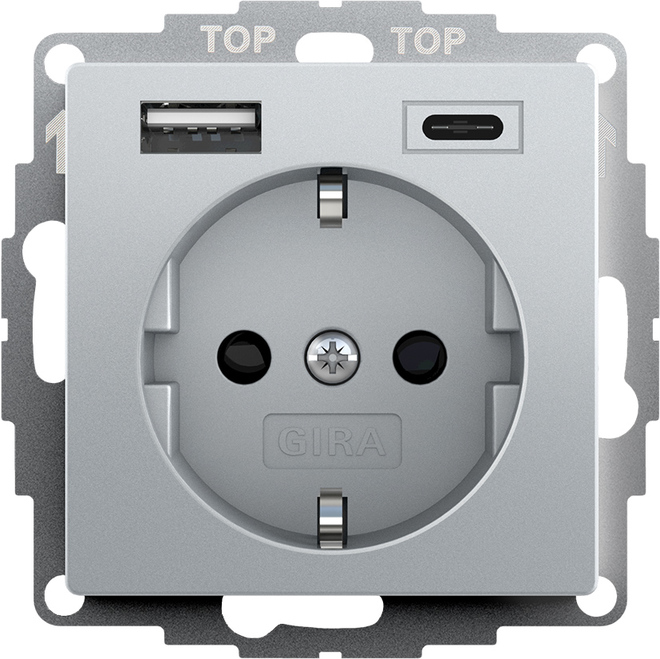

Gira sockets with USB – power and charging in one

For modern installations in offices, conference rooms or hotels, Gira offers Schuko sockets with integrated USB power supply (Type A + Type C). The combination inserts deliver 16 A / 250 V~ via the Schuko contact plus USB charging output – without separate adapters. Versions in black and aluminium are available from stock at WATT24.

Good to know: System-compliant installation with Gira
All Gira sockets from the System 55 programme can be combined with Gira switches, Gira inserts and cover frames from the same range – for a consistent appearance across every installation project.

Buy Gira sockets at WATT24

As a B2B specialist for electrical installation, WATT24 supplies Gira sockets from stock – typically dispatched within 1–2 working days. Alongside the full Gira socket range you'll find matching Gira inserts, Gira switches and the complete Gira System 55 programme for a fully coordinated installation.

In stock – dispatched within 1–2 working days
Technical advice by phone and email
Complete Gira range: sockets, switches, inserts, frames

FAQ: Gira Sockets

Which design programmes does Gira offer for sockets?

The most widely used programme is the Gira System 55, which offers a broad selection of frames and inserts. In addition, the TX_44 programme features sockets with hinged lids, while the E2 range covers straightforward installations. All design lines use compatible flush-mounted boxes to DIN 49073.

Are Gira sockets suitable for damp locations?

Yes – Gira offers Schuko sockets with protection rating IP44 as a complete set including sealing set and hinged lid. These versions are suitable for bathrooms (outer zone), wet commercial rooms and protected outdoor areas. For installation in areas exposed to direct water jets, IP55 or higher is recommended.

What does "Schuko Type F" mean for Gira sockets?

Schuko stands for Schutzkontakt (protective contact) – the socket standard used in Germany and most of Europe. Type F refers to the German standard to DIN VDE 0620, featuring two round pins and side earthing clips. All Gira Schuko sockets in the WATT24 range are rated 16 A / 250 V~ and comply with this standard.

Can Gira sockets be combined with other Gira components?

Yes – all System 55 sockets can be combined with Gira inserts and frames from the System 55 programme. The same applies to Gira switches, dimmers and communication inserts from the same range – allowing homogeneous switch combinations within a single cover frame.

Do Gira sockets have child protection (shutter)?

Certain versions feature an integrated shutter that prevents single pins from being inserted – the contacts only release when both openings are actuated simultaneously. This applies in particular to the USB combination sockets. Standard Schuko inserts meet the requirements of DIN VDE 0620 without additional child protection.
