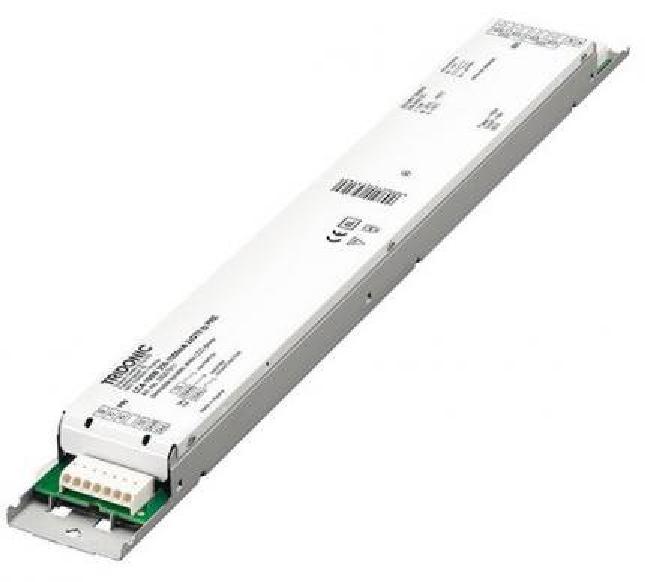

Tridonic LED-Driver LCA 50W 350-1050mA 2xDT8 lp PRE - 28001909
Tridonic GmbH & Co KG
Tridonic LED-Driver LCA 50W 350-1050mA 2xDT8 lp PRE - 28001909
Product number:
28001909
Immediately available
€78.22
Content:
1 Stück
Prices incl. VAT plus shipping costs net €65.73
Product information "Tridonic LED-Driver LCA 50W 350-1050mA 2xDT8 lp PRE - 28001909"
Dimmable four-channel with 2 x DALI DT8 constant current LED driver for luminaire installation and IP protection and a rated output up to max. 50W.
Electrical data
| output current: | 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 100000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DSI |
Logistic data
| item category: | LED drivers |
|---|

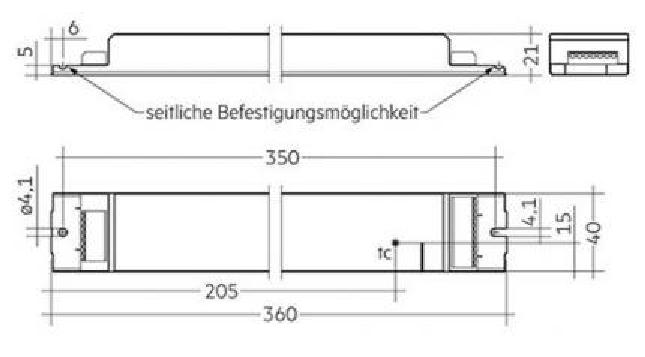

Dimensions & packaging
| EAN | 9006210623023 |
|---|---|
| Length | 360 mm |
| Width | 40 mm |
| Height | 21 mm |
