Socket outlet cover

Socket outlet covers are an essential part of every professional electrical installation – they protect live contacts from unintentional contact, dust and moisture. At WATT24 you'll find cover plates, central plates, blank covers, dimmer covers and IP44-rated versions for outdoor use – from leading brands including Gira, Jung, Busch-Jaeger, Merten and Berker.

Filter

Comprehensive advice & support
over 10,000 articles in the shop

Shipping in 24 hours
thousands of satisfied customers

KATHRIN BRANDT

Employee Purchasing from Troisdorf

Great advice and friendly service. I was helped immediately and competently with any questions. Gladly again.

OMAR NASER

Office Manager from Frankfurt a.M.

Goods are well packaged and arrive safely, which is important to me. My mail was answered immediately.

RAINER SEIDEL

Master carpenter from Wiesbaden

Had to replace a lamp, but the same was no longer available. Great advice, found a suitable replacement and delivered it quickly.

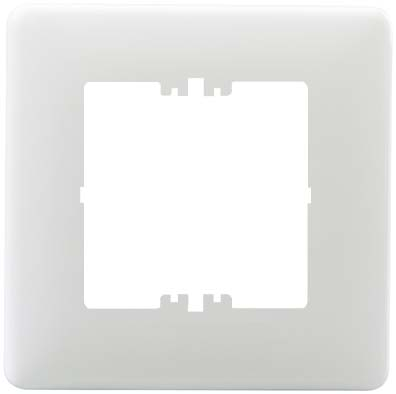

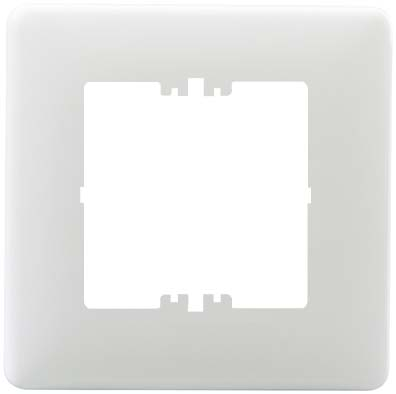

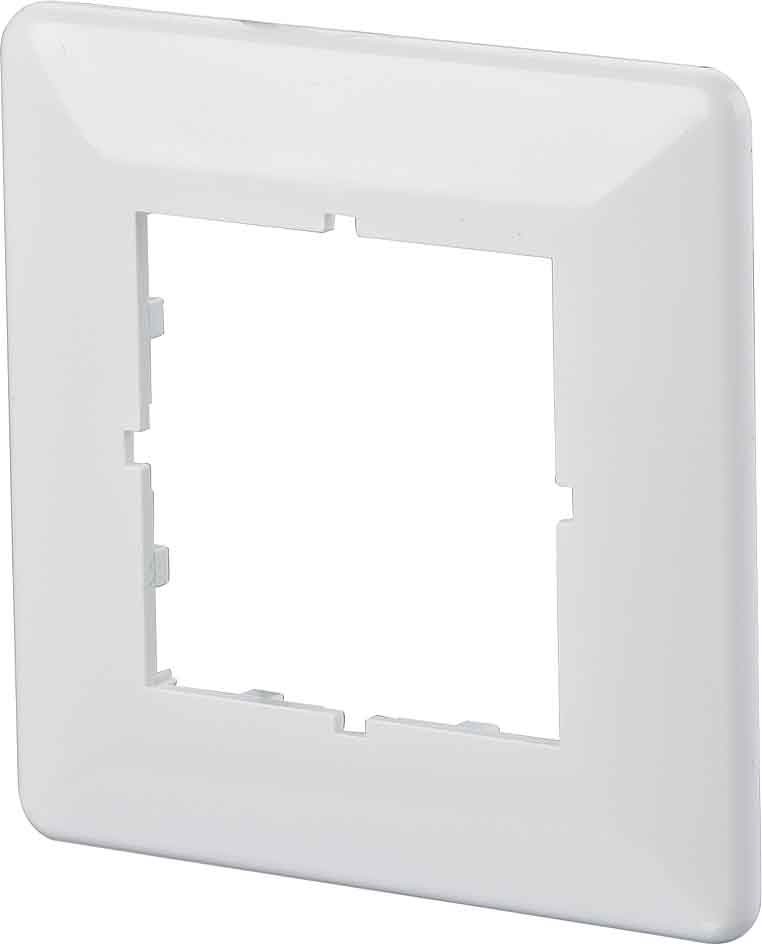

Cover plate, central plate or blank cover? A socket cover plate (central plate or face plate) mounts directly onto the device insert and closes it off at the front. A dimmer cover is specifically designed to match the control knob of rotary or push dimmers. A blank cover closes off unused installation outlets safely and neatly. Separate cover frames are available in their own dedicated category.

Socket Outlet Covers: Types and Applications

Socket outlet covers are not merely accessories – they are a safety-critical component of every properly completed electrical installation. Without a cover, the live parts of the device insert are exposed; even dust accumulation in this area poses a potential fire hazard. There are several types to distinguish:

The standard cover plate or central plate closes the socket insert at the front and is either clipped onto or screwed to the mounting ring. In addition, dimmer covers are designed specifically to match the operating elements of rotary and push dimmers, while data outlet covers (UAE/IAE, Cat. 6) and antenna outlet covers (SAT/BK/TV) follow the same modular installation principle. For unused outlets, WATT24 stocks blank covers that seal flush-mounted boxes cleanly and securely.

Outdoor Socket Covers: IP Rating Requirements

Outdoor installations and wet areas require enhanced protection against contact and moisture. Here, covers with a minimum IP44 protection rating are required: they feature circumferential seals and usually a hinged flap that keeps the socket protected from splashing water when not in use. For permanently damp environments – such as swimming pools, industrial halls or exposed exterior walls – IP55 or higher is advisable. WATT24 stocks suitable versions in the IP44 socket category.

System Compatibility: Which Cover Fits Which Socket?

Covers are designed for the specific design programme of their respective manufacturer. Gira, Jung, Busch-Jaeger, Merten and Berker each offer complete switching ranges within which covers and inserts are mutually compatible – cross-manufacturer combinations are generally not possible. The table below provides an overview:

Manufacturer	Programme (examples)	Available cover types
Gira	System 55	Cover plates, dimmer covers, blank covers, data outlet covers
Jung	LS 990, CD 500, A 500	Cover plates, blank covers, SAT/TV, UAE/IAE and XLR covers
Busch-Jaeger	future linear, Duro 2000	Central plates, intermediate rings, blank central plates
Merten	System Design, M-Smart	Cover plates, blank covers
Berker	B.7, S.1	Cover plates, blank covers
PEHA	Artline, Nova	Cover plates

Colours, Finishes and Design

Socket covers are available in a wide range of colours and surface finishes to blend seamlessly into a building's electrical installation. Common variants include gloss white, alpine white, anthracite matt, matt black and aluminium. Premium design programmes also offer versions in stainless steel, glass or natural stone finishes. As a general rule: when replacing or extending an installation, always match the same programme and colour variant to ensure a consistent visual result.

FAQ: Socket Outlet Covers

What is the difference between a cover plate, a cover frame and a blank cover?

A cover plate mounts directly onto the device insert and closes it off at the front. A cover frame surrounds the entire flush-mounted box and is primarily a design element. A blank cover seals an unused installation outlet cleanly and safely.

Are socket outlet covers standardised?

Flush-mounted box and mounting ring dimensions are standardised to DIN, so covers and inserts within a manufacturer's programme are compatible with each other. Different manufacturers' programmes are generally not interchangeable.

Which socket cover is suitable for outdoor use?

Outdoor and wet-area installations require covers with at least IP44 protection. These feature seals and typically a hinged flap to keep the socket protected from water ingress when not in use.

Can covers from different manufacturers be combined?

No. Covers are tailored to their manufacturer's specific design programme and are not interchangeable across brands. Always use the same programme and manufacturer when replacing or extending an installation.

Are socket covers with child protection available?

Many modern socket inserts already include integrated touch protection to DIN VDE 0620, which is more reliable than add-on covers. Our customer service team is happy to help with the right product selection.
