Tridonic LED-Driver LC 50W 1200mA fixC SR SNC - 87500553

Tridonic GmbH & Co KG

Tridonic LED-Driver LC 50W 1200mA fixC SR SNC - 87500553

Product number: 87500553

Immediately available

€24.43


Content: 1 Stück

Prices incl. VAT plus shipping costs net €20.53

Product information "Tridonic LED-Driver LC 50W 1200mA fixC SR SNC - 87500553"

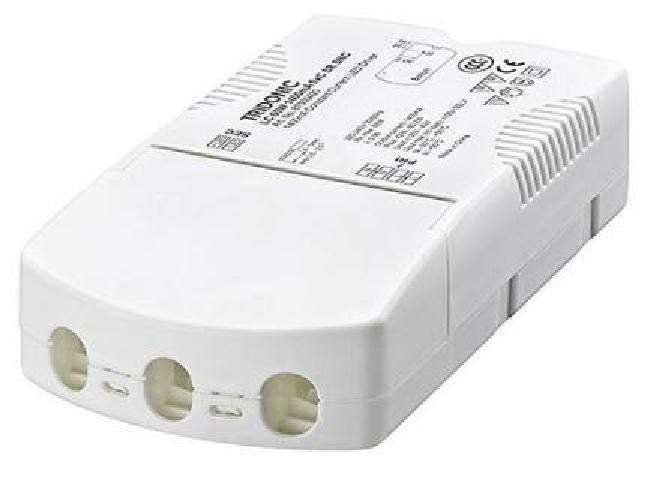

The constant current LED driver LC 50W 1200mA fixC SR SNC from the ESSENCE series from TRIDONIC can be used for independent mounting as well as luminaire installation. It is suitable for luminaires of protection class I and II and has a maximum output power of 50 watts at an output current of 1200 mA.

The housing is made of white polycarbonate and IP20 protected. The LED ECG has a temperature protection according to EN 61347-2-13 C5e. Additionally, it is protected against overload, short circuits and no load.

The nominal life is up to 50,000 hours. TRIDONIC offers a 5 year warranty on the LED driver.

Electrical data
output current: 1200
operating mode: constant current
rated voltage: 220-240 V
lifetime: 50000 h
Casing
form type: rectangular
max housing temperature (tc-max): 90 °C
protection type: IP20
mounting: surface mounting
environment temperature from: -20 °C
environment temperature to: 50 °C
Photometric data
color: white
Logistic data
item category: LED drivers

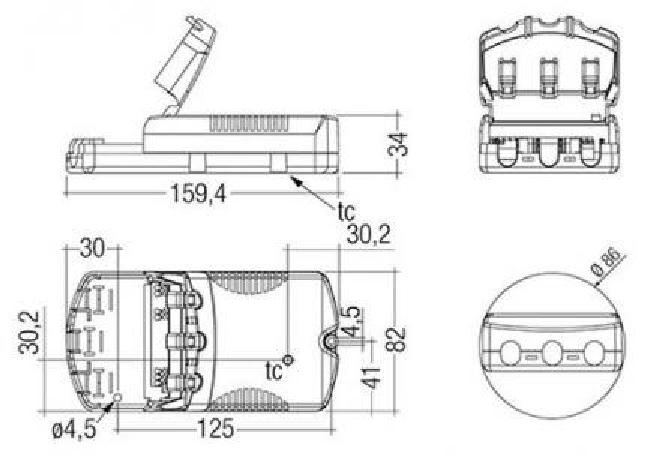

Dimensions & packaging
EAN 9006210603780
Length 159 mm
Width 82 mm
Height 34 mm
Weight 190 g

TRIDONIC
Tridonic Deutschland GmbH
Edisonalle 1
89231 Neu-Ulm DE

BestellungDE@tridonic.com

www.tridonic.com/en/int
