Product information "Tridonic LED-Driver LC 50/1200/42 fixC SC SNC2 - 87500766"
55W constant current LED ECG for built-in use

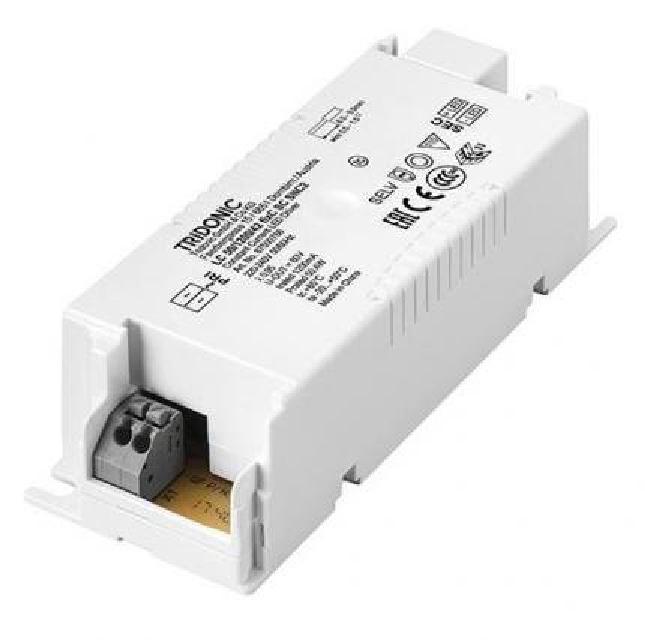

The small, compact fixed output constant current LED Driver LC 50/1200/42 fixC SC SNC2 of the Essence series from Tridonic is suitable for installation in luminaires of protection class I and II. It has a nominal power of 55 watts with an output current of 1200 mA.
Ideal applications are spotlights and downlights in commercial and catering applications and panel and area lighting in office and educational applications.
Small, compact housing with IP20 protection

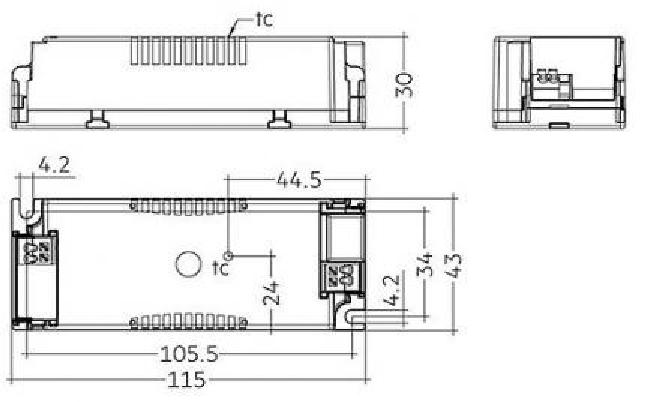

The LED ECG has an IP20-protected housing made of white polycarbonate. With dimensions of 115 x 43 x 30 mm, it has a small, compact size.
The Tridonic LED driver has an overload, short circuit, open circuit and overtemperature protection according to EN 61347-2-13 C5e. In addition, it is protected against against burst voltages 1kV, surge voltages 1kV (L to earth) and 2 kV surge voltages (L/N to earth).
The nominal life of the LED driver is up to 50,000 hours. Tridonic offers a 5-year warranty.
Downloads & Documents
Datenblatt-Tridonic-LED-Treiber-LC-50-1200-42-fixC-SC-SNC2-87500766_1592169694_2
RCM-Zertifikat-Tridonic-LED-Treiber-LC-50-1200-42-fixC-SC-SNC2-87500766_1592169694_4
Konformitaetserklaerung-Tridonic-LED-Treiber-LC-50-1200-42-fixC-SC-SNC2-87500766_1592169694_5
Login
Electrical data
| output current: | 1200 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| form type: | rectangular |
|---|---|
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | LED drivers |
|---|
Dimensions & packaging
| EAN | 9006210683072 |
|---|---|
| Length | 115 mm |
| Width | 43 mm |
| Height | 30 mm |
