Tridonic LED-Driver LC 35W 700mA 0-10V UNV sl ADV - 28001766

Tridonic GmbH & Co KG

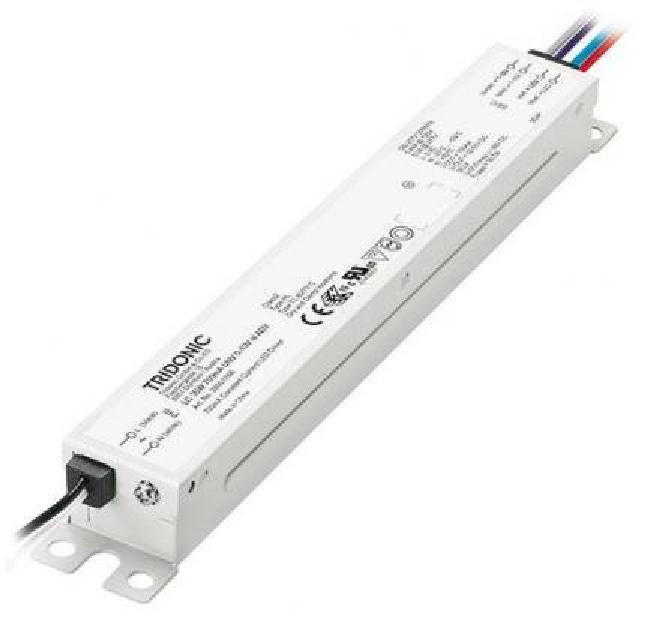

Tridonic LED-Driver LC 35W 700mA 0-10V UNV sl ADV - 28001766

Product number: 28001766

Immediately available

€38.52


Content: 1 Stück

Prices incl. VAT plus shipping costs net €32.37

Product information "Tridonic LED-Driver LC 35W 700mA 0-10V UNV sl ADV - 28001766"

The dimmable constant current LED driver LC 35W 700mA 0-10V UNV sl ADV from the UL certified ADVANCED series from TRIDONIC is suitable for installation in luminaires of protection class I and II. The nominal power is up to 35 W ; the efficiency is up to 85%.

The LED driver is ideal for use in dry or damp environments. Typical application areas include linear and area lighting in office applications. It has the UL and ENEC classification.

The LED ECG can be dimmed via a 0-10V interface. In addition, single wires with tinned wire ends are available.

The white potted metal housing is IP44-protected.

The TRIDONIC LED ECG has a protection against overtemperature, short circuit, overload and no-load. In addition, it is protected against burst voltage 1 kV and surge voltage 4 kV (L to N). The nominal life is up to 50,000 hours. TRIDONIC offers a 5-year warranty on the LED driver.

Electrical data
number of channels: 1
operating mode: constant current
rated voltage: 120-277 V
lifetime: 50000 h
Casing
max housing temperature (tc-max): 80 °C
protection type: IP44
mounting: Installation
environment temperature from: -25 °C
environment temperature to: 55 °C
Photometric data
dimmable: yes
dimming range to: 100 %
color: white
interface: 0-10 V
Logistic data
item category: LED drivers

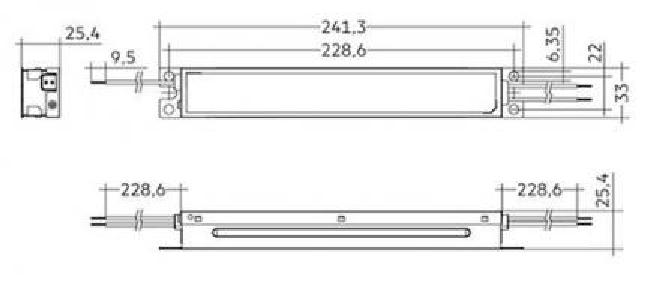

Dimensions & packaging
EAN 9006210628639
Length 241 mm
Width 33 mm
Height 25 mm
Weight 370 g

TRIDONIC
Tridonic Deutschland GmbH
Edisonalle 1
89231 Neu-Ulm DE

BestellungDE@tridonic.com

www.tridonic.com/en/int
