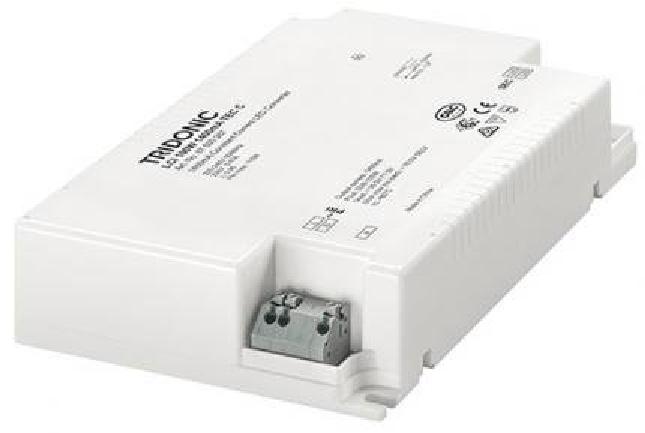

Tridonic LCI 100W 1750mA TEC C - 87500268
Product information "Tridonic LCI 100W 1750mA TEC C - 87500268"
For luminaires of protection class I and protection class II
Short-circuit protection
Overtemperature protection
Constant current LED Driver
Type of protection IP20
Overload protection
No-load protection
5-year guarantee
Casing: polycarbonate, white
Fixed output built-in LED Driver
Temperature protection as per EN 61347-2-13 C5e
Max. output power 100 W
Output current 1,400, 1,750 or 2,100 mA
Burst protection voltage up to 2 kV
Surge protection voltage up to 2 kV (L to N)
Surge protection voltage up to 4 kV (L/N to earth)
Nominal life-time up to 50,000 h
Brush-coated for higher protection against humidity
Short-circuit protection
Overtemperature protection
Constant current LED Driver
Type of protection IP20
Overload protection
No-load protection
5-year guarantee
Casing: polycarbonate, white
Fixed output built-in LED Driver
Temperature protection as per EN 61347-2-13 C5e
Max. output power 100 W
Output current 1,400, 1,750 or 2,100 mA
Burst protection voltage up to 2 kV
Surge protection voltage up to 2 kV (L to N)
Surge protection voltage up to 4 kV (L/N to earth)
Nominal life-time up to 50,000 h
Brush-coated for higher protection against humidity
Downloads & Documents
Electrical data
| output current: | 1750 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
Casing
| max housing temperature (tc-max): | 80 °C |
|---|---|
| protection type: | IP20 |
| protection class: | I/II |
| environment temperature from: | -20 °C |
| environment temperature to: | 60 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | LED drivers |
|---|

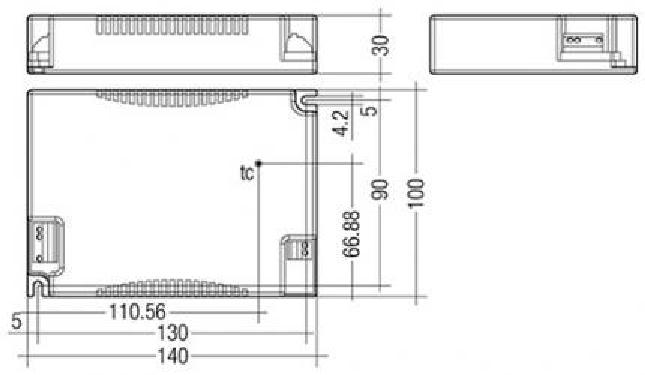

Dimensions & packaging
| EAN | 9006210499727 |
|---|---|
| Length | 140 mm |
| Width | 100 mm |
| Height | 30 mm |
| Weight | 276 g |
